MB961 User’s Manual

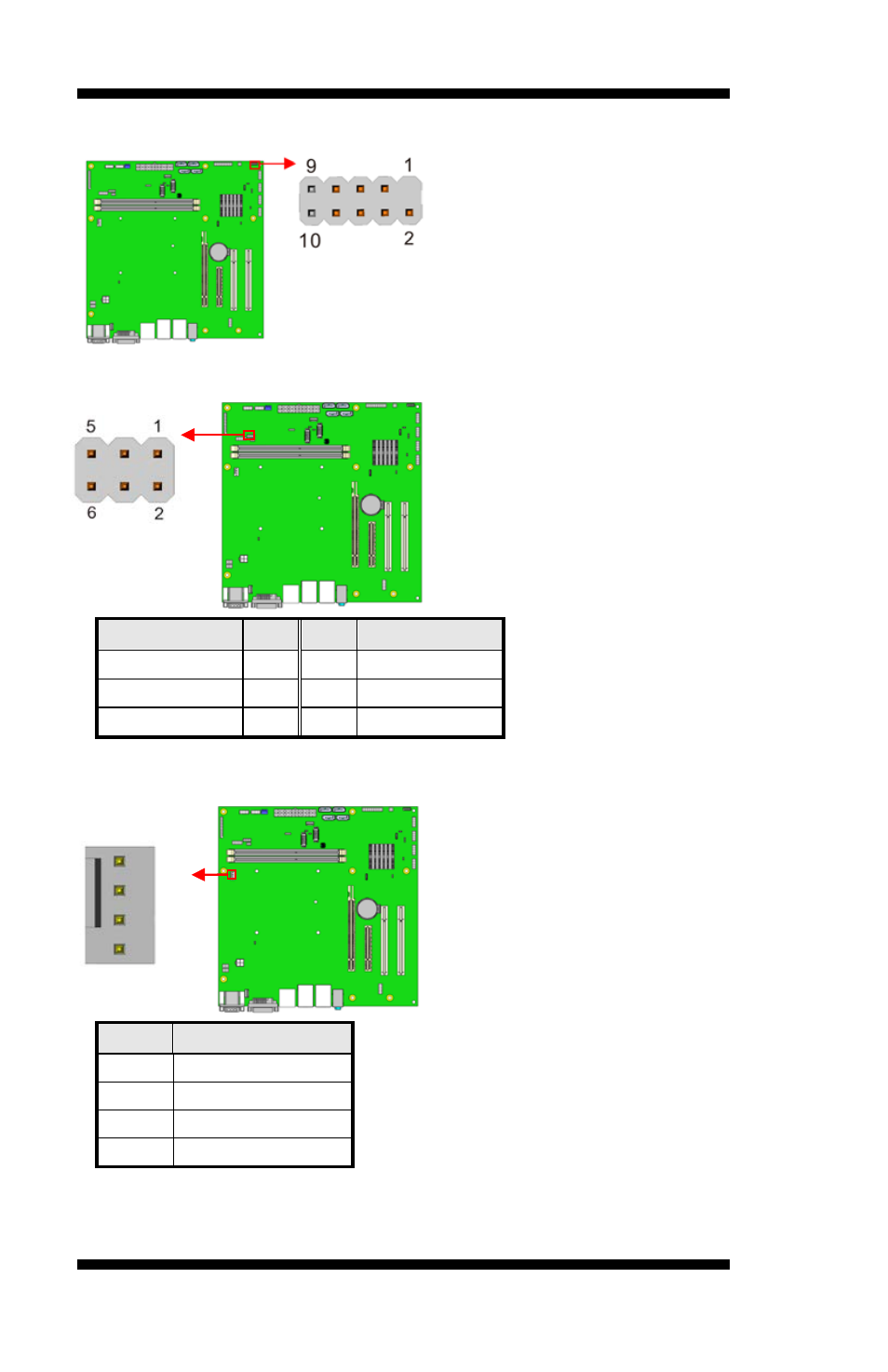

J20: SPI Connector (For debug use)
J21: LPC signal connector
Signal Name Pin Pin Signal Name
-SUSTAT
1
2
3VDUAL
SERIRQ
3
4
NC
GPIO
5
6
Ground
CPU_FAN1: CPU Fan Power Connector
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
4
Control
4
1
