1.5.2 Installing the mSATA Module

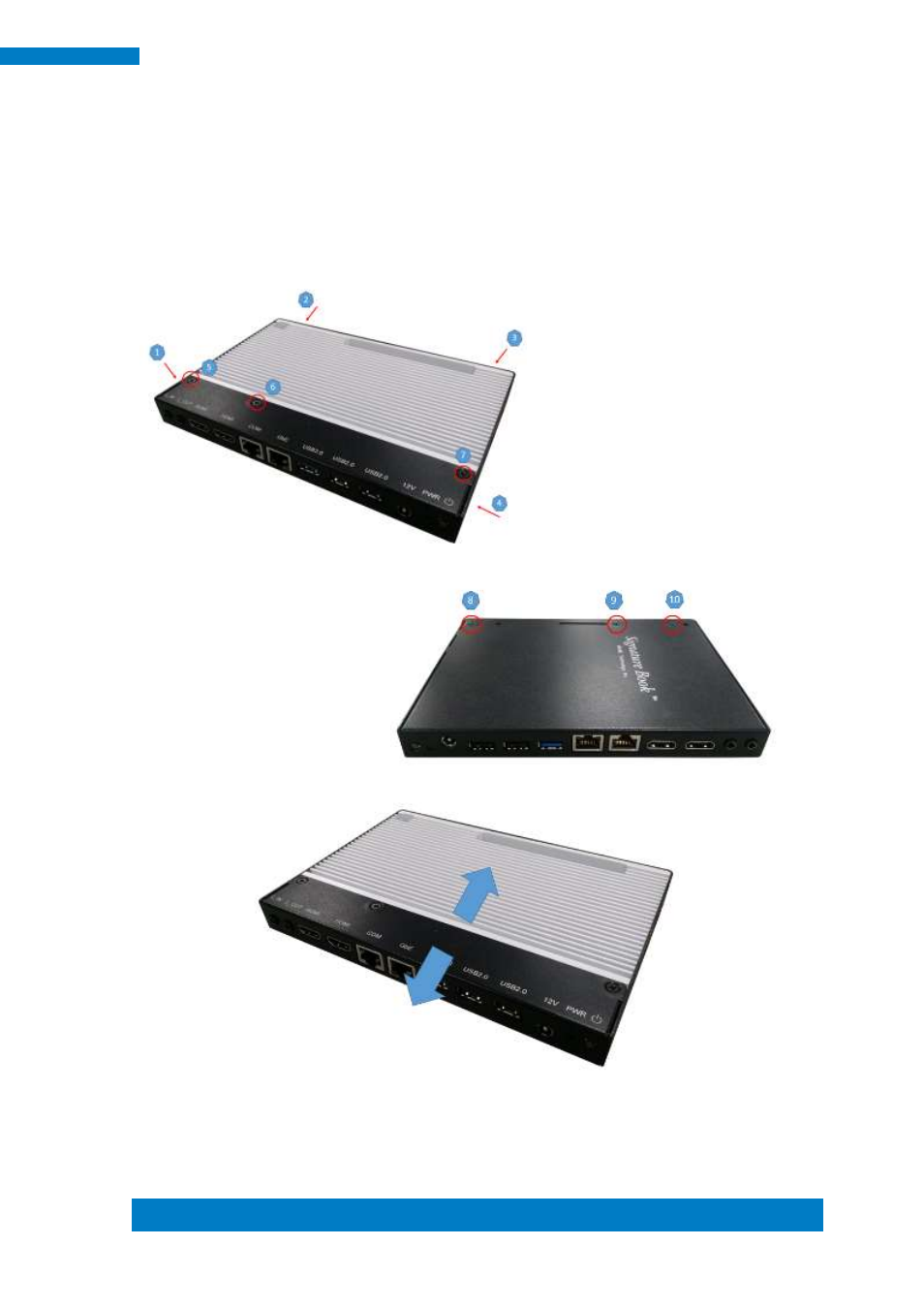

1. Remove the six screws on the sides that are used to secure the white cover to the
chassis. Once all the screws are removed, from the side, push the cover forward to
remove it.
