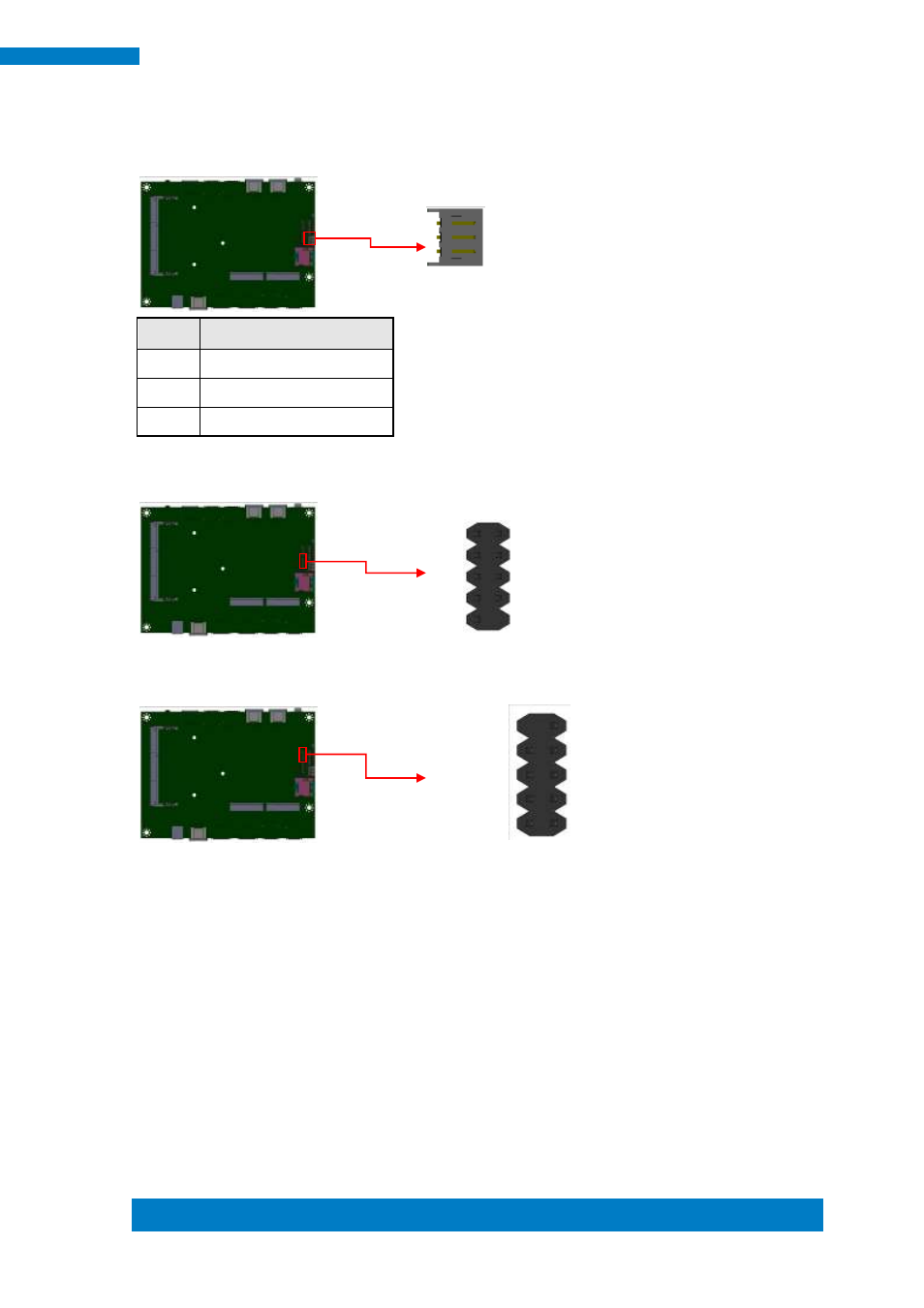

J7: CPU Fan Power Connector
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
J8: SPI Flash Connector (Factory use only)
J10: LPC debug Connector (Factory use only)
SW1: Power Switch
3
1
10
2
9
1
10
2
9
1
