EN

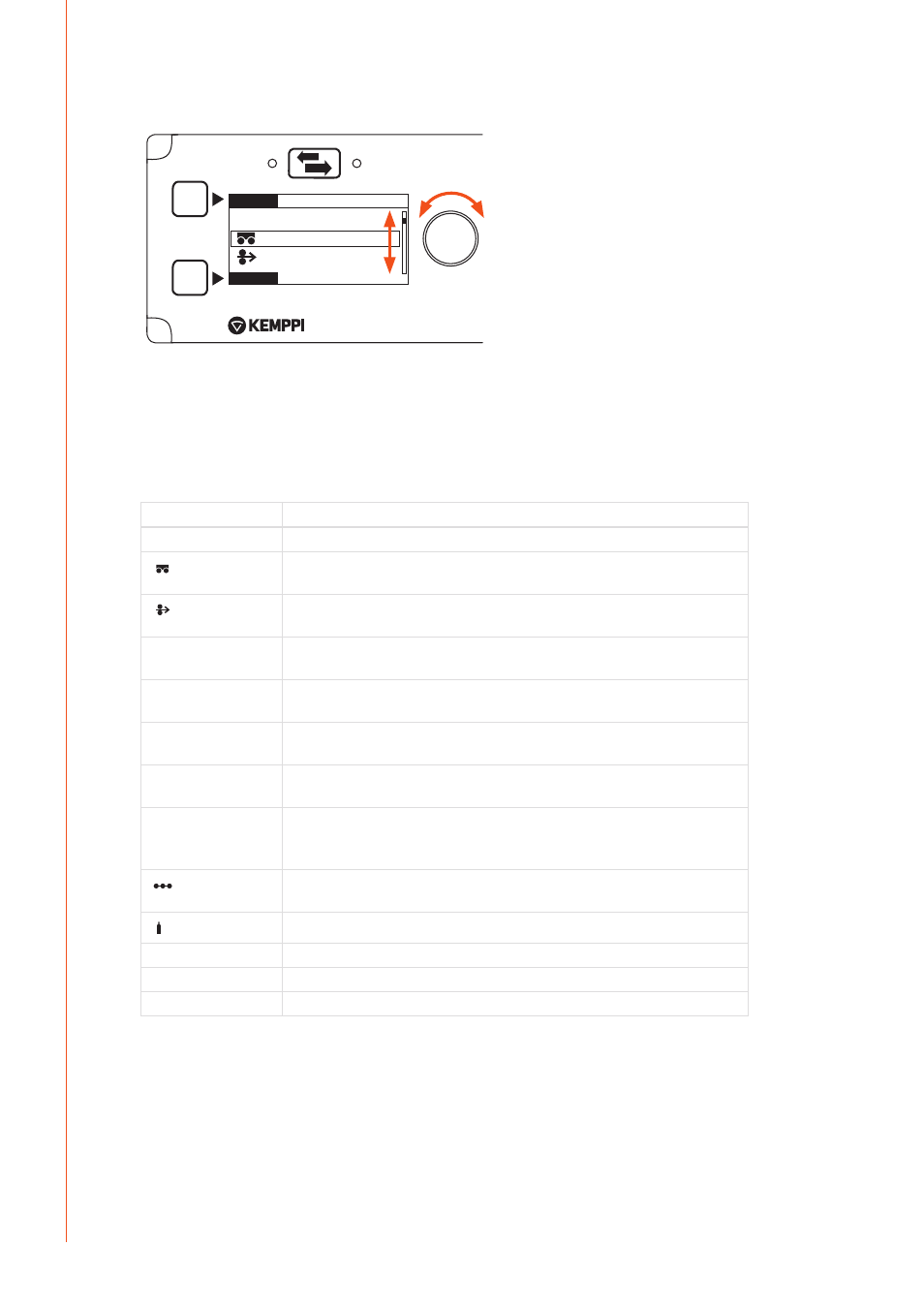

3.3 Control panel menus
ARC
ON
START
MEMORY CH
300 mm/min
5.0 m/min
STOP
MagTrac F 61
SET
CH OFF
To browse menu items, turn the multi-function knob 1.
To select the highlighted menu item, press the multi-function knob 1.
• The selected active menu items are marked with a solid box.
• The Selected inactive menu items are marked with a dotted box. You cannot changed
the values of these menu items.
3.3.1 MagTrac F 61 main menu
Menu item Description
MEMORY CH Load and save memory channels.
300 mm/min
Change the carriage travel speed.
The selected speed is shown in the menu name.
5.0 m/min
Change the wire feed speed.
The selected speed is shown in the menu name.
CURRENT: Change the welding current.
The selected current is shown in the menu name.
VOLTAGE: Change the welding voltage.
The selected voltage is shown in the menu name.
FINETUNING: Fine tune the welding values.
(Available only when using pulsed or double-pulsed welding process.)
BASECURRENT: Set the base current value.
(Available only when using WiseRoot or WiseThin welding process.)
ARC ON: Enable or disable the welding arc. When this function is OFF, you can test the carriage operation
without igniting the welding arc. (Note that this function is the same as pressing the ARC ON
button.)
CYCLE WELD
Open the cycle weld submenu, where you can enable or disable the cycle weld function and set
its parameters.
GAS TEST
Run the gas test.
WIRE INCH Drive the filler wire into the gun.
WELD DATA Check the weld data recorded from the last welding session.
SETTINGS Open MagTrac F 61 settings menu.
MagTrac F 61
