Kleenmaid ZSGS420IBS - Manual (Page 7)

244 mm
Dispenser Cutout
391 mm
Design Guide

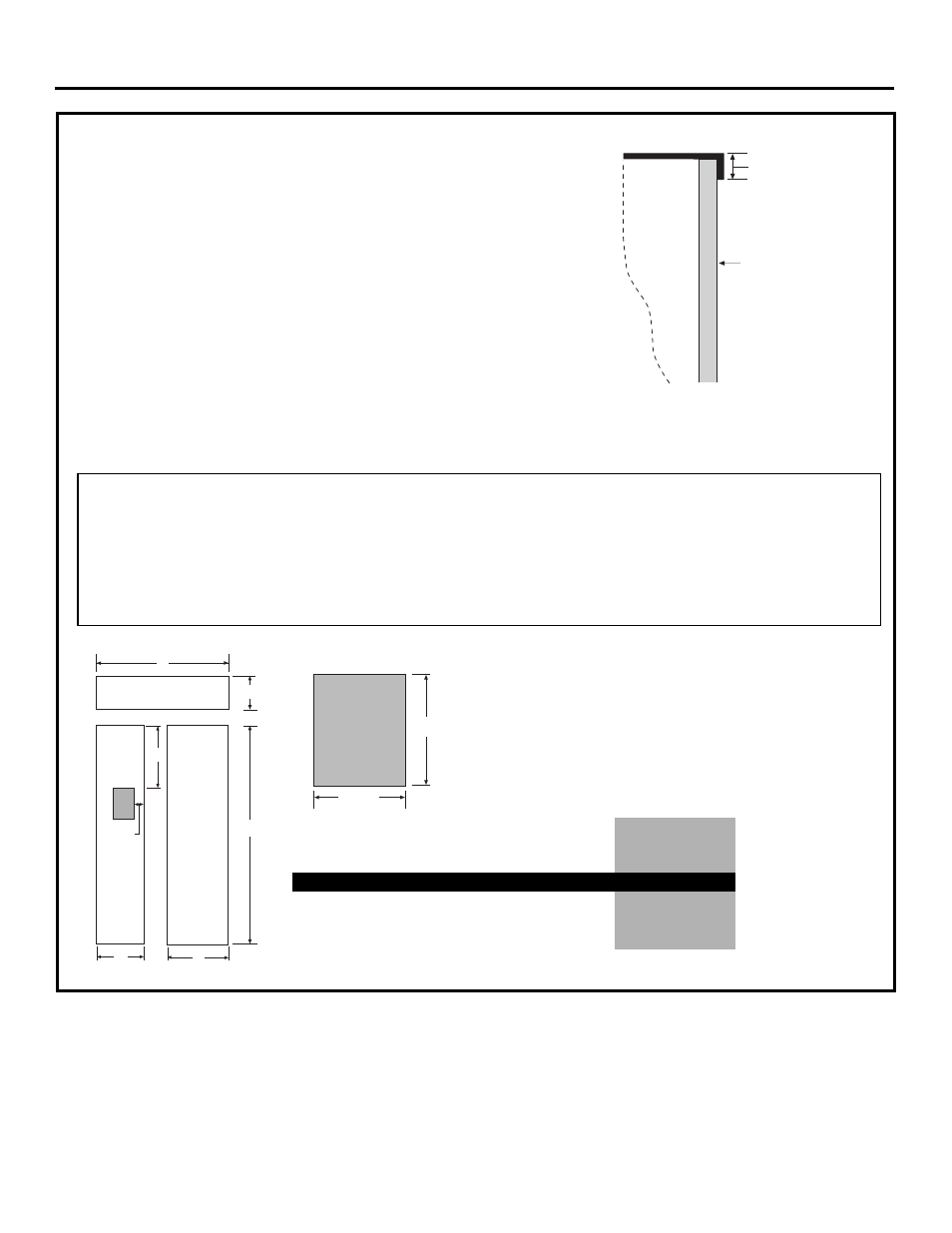

6 mm FRAMED PANEL DIMENSIONS
7
If you choose to install framed panels, they must be
cut to the dimensions shown. The panels will slide
into the frame on the door and grille.
Non-Dispenser Models
If the custom panel is less than 6 mm thick and it fits
loosely in the door frame it can be backed up with
a piece of filler material or foam tape to improve
the fit.
IMPORTANT NOTE: Maximum total panel weight:
• Fresh food door panel – 34 kg
• Freezer door panel – 24 kg
• Grille panel – 8 kg
Fresh Food
Panel
Freezer
Panel
E D
F
G
A
B Grille Panel
C
Dispenser
Cutout
Side-by-Side (in millimeters)
A B C D E F G
1013 mm 241 mm 1737 mm 370 mm 624 mm 452 mm 79 mm
Dispenser
Cutout Position
6 mm
Panel
Door
8 mm
Trim
Reveal
The framed panel must be 6 mm nominal thickness
to fit the dispenser trim.
IMPORTANT NOTE—Dispenser Models:
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
• If the panel is less than 6 mm thick a noticeable
gap may be created around the dispenser trim.
Foam tape may be applied on the door to improve
the fit.
• If the panel is more than 6 mm thick, the dispenser
trim cannot be secured to the door.
See Dispenser Trim Fit Example, page 9.
