Koga SPECIALS - TANDEM - ADAPTOR - MTB - Manual (Page 5)

8
A
2
A
1
Adaptor
The overall weight of
bike, rider and luggage
may not exceed 120 kg.
Handlebar height adjustment
Open the quick-release (as 1.
pictured).
Move the handlebars to the
2.
required height.
When adjusting the
handlebar height,
ensure that the
handlebar do not
turn, and that it is not
pulled out beyond the
minimum insertion mark
on the stem.
Close the quick-release. 3.
Carrying the Adaptor
The Adaptor can easily be lifted and
carried by the short top tube (as
pictured).
Maintenance of the toothed
belt drive
Clear off rough dirt regularly,
particularly from the toothed side of
the belt.
Do not lubricate the belt.
The working life and
proper functioning of
the belt can be affected
by:
twisting •
folding, kinking or •
rolling up
Turning inside out
•
Knotting •
Excessive dirt •
Objects coming •
between the teeth
of the drive belt
(pebbles, twigs etc.)
Replacement of the toothed
belt
With normal use and regular
cleaning, the toothed belt has a long
working life. We recommend that if it
is ever necessary, belt replacement is
carried out only by a Selected Koga
Dealer.
www.koga.com
9
nlnl
dkdk
ukuk
frfr
dede
A
B
A
B
A
A
1 2 4
6
3
5

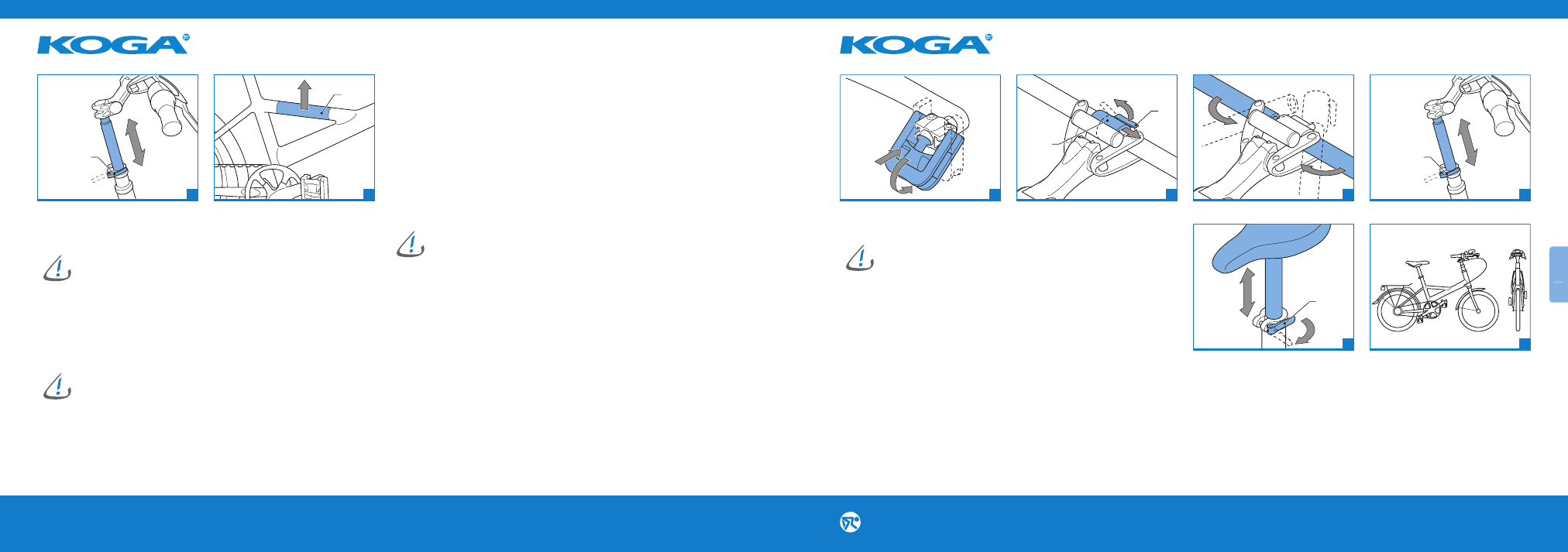

Folding the Adaptor
When folding and
unfolding, or when
adjusting handlebar or
saddle heights, ensure
that the stem and
seatpost do not turn, and
that they are not pulled
out beyond their minimum
insertion marks.
Set the bike on its stand. 1.
Fold the pedals (picture 1). 2.
Open the lever on the 3.
handlebars and press the
spring closure to the left,
until the right-hand section of
the bars comes free (picture
2).
Fold the both handlebar
4.
sections backwards 90
degrees (3).
Open the lever on the stem
5.
(picture 4).
Push the stem down as far
6.
as it will go.
Close the lever.
7.
Open the lever on the 8.
seatpost (picture 5).
Push the seatpost down.
9.
Close the lever. 10.
The Adaptor is now folded 11.
and ready for transport
(picture 6).
Unfolding the Adaptor
Set the bike on its stand. 1.
Open the lever on the seatpost 2.
(picture 5).
Pull the saddle up to your
3.
required height.
Close the lever.
4.
Open the lever on the stem 5.
(picture 4).
Pull the stem up to your
6.
required height.
Close the lever.
7.
Open the lever on the 8.
handlebars and fold the
right-hand handlebar section
90 degrees forwards (picture 3).
Pull the spring closure to the
9.
right, and fold the left-hand
handlebar section 90 degrees
forwards. (2 and 3)
Let the spring closure go, so
10.
that it can push completely over
the left-hand half handlebar.
Close the lever on the
11.
handlebars.
Unfold both pedals (picture 1).
12.
The Adaptor is ready to ride. 13.
