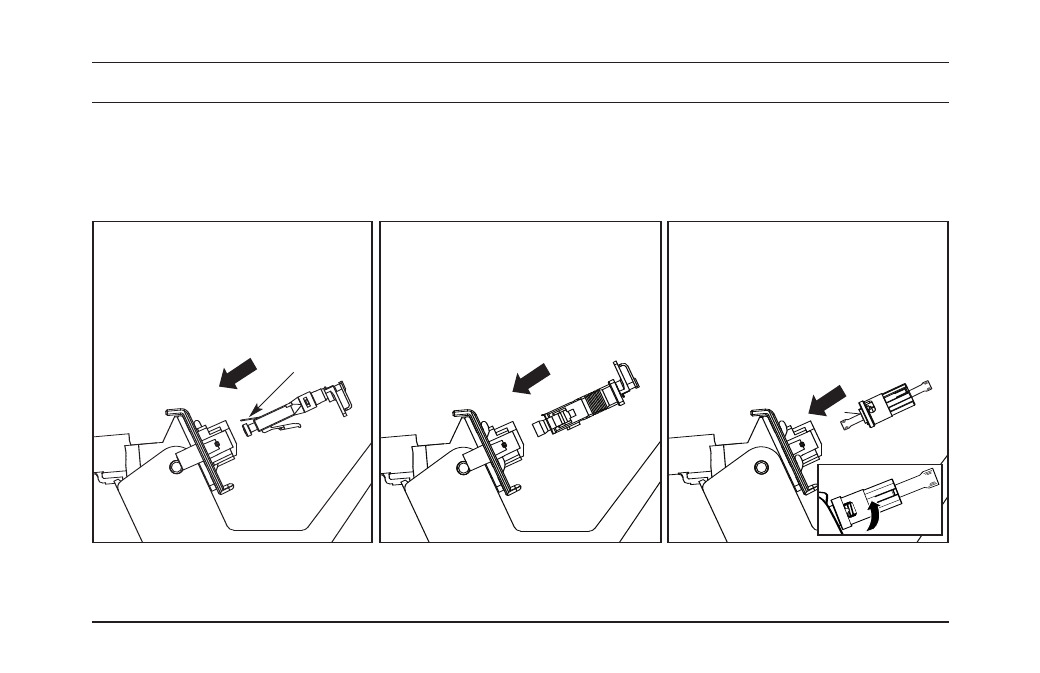

Load the connector body into the installation tool, with the release wire up.
Leave dust cap on.
Leave dust cap on.
LC
SC
ST
By pushing the housing into the
receptacle and turning 1/4 turn
clockwise, locking it in place.
Leave dust caps on.
Installation on jacketed fiber
Release wire
