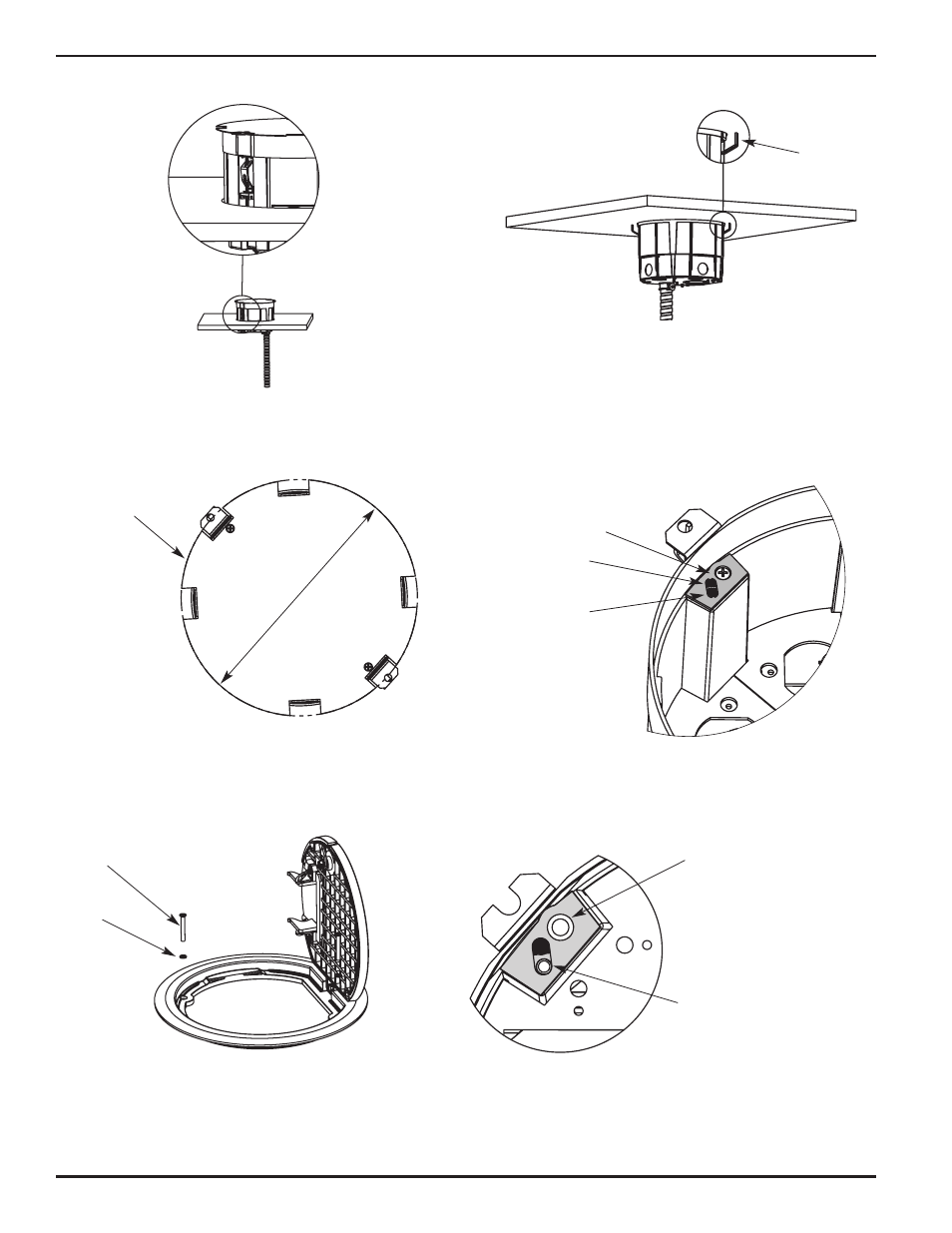

5. Tighten mounting screw until steel anchor is adjusted

securely below floor.

6. Install the floor covering prior to attaching the cover.

For carpet installations, the temporary cover plate can
be used as a template.

Steel

Anchor

Cut Carpet along

Temporary Cover Edge

7. Attach cover to box. Remove the appropriate shelf pad

tab, exposing the threaded attachment hole. Secure
cover to box with screws provided.

Cover Mounting

Shelf Pad

Remove this Tab

Section to attach

8CT Cover

Remove this Tab

Section to attach

CRFB Cover

8. CRFBBTC and CRFBCTC COVERS: Open the lid and

insert Cover Attachment Screws through Sealing
Washers and attach Cover Flange to CRFB4 Box.

Attachment

Screw

Sealing

Washer

CAUTION: CRFB4 Floor Box has two sets of Cover

Attachment Holes. Use the attachment holes
furthest away from the mounting screw.

4. Flip locking anchor up and lower box into opening.

Mounting Hole

Remove this Tab
Section to mount
CRFB Covers

9"

[229mm]
