- 20 -
EBA 435 E • EBA 435 EP
EBA 435 E
cm
inch
EBA 435 EP

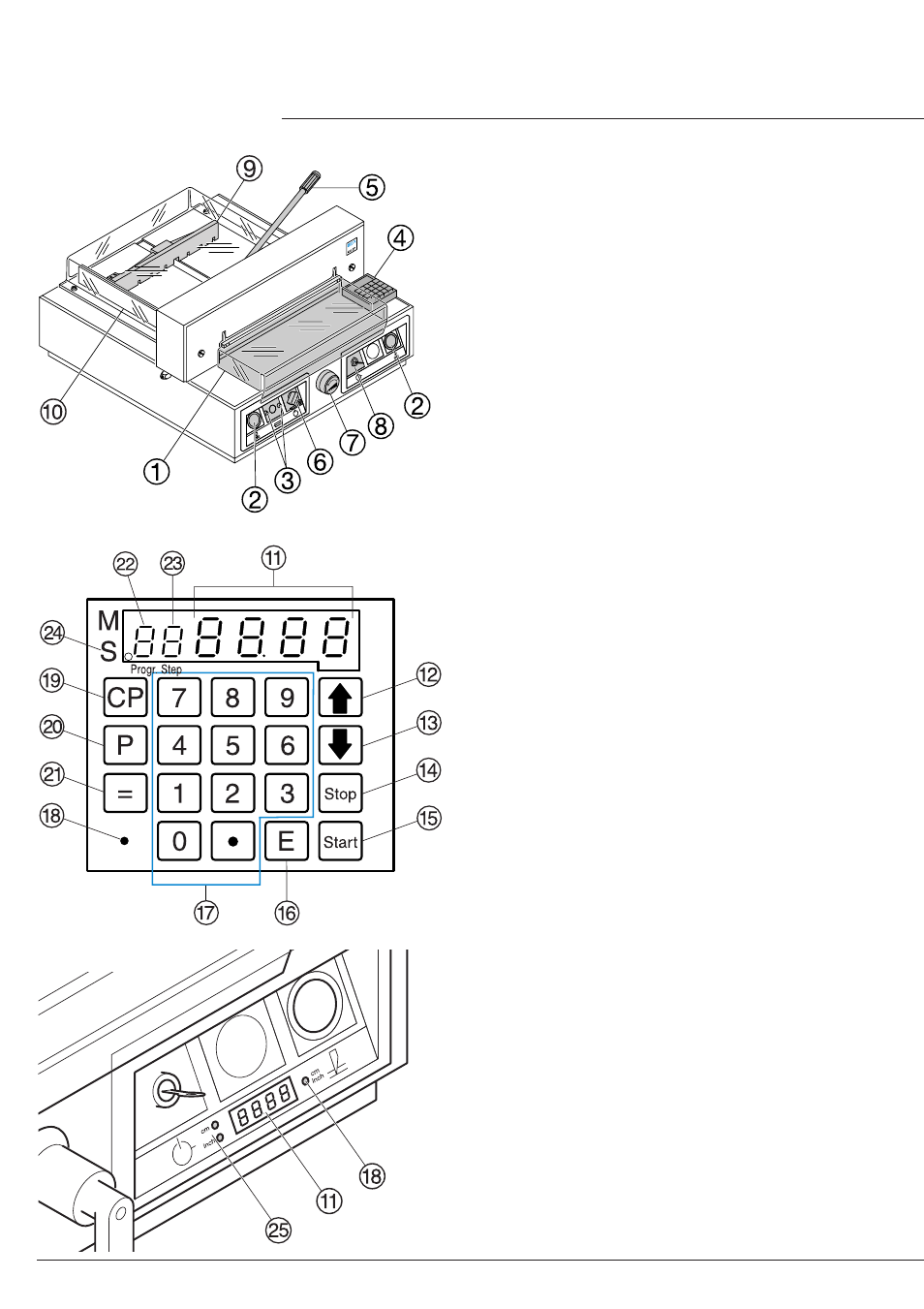

Operating elements
A - Front safety guard
B - Safety two-handed control system
C - Overload switch
(Blade drive/backgauge drive)
D - Backgauge control
E - Clamping
F
-
Main switch
G - Hand-wheel (EP) or crank handle
for backgauge setting
H - Key switch
I - Backgauge
J - Side lay left
K - Display cutting size (cm or inch)
L - Select program step up
M - Select program step down
N - Stop and delete input
O - Start
P - Eject function
Q - Keypad
R - Changeover cm/inch
S - Clear program
T - Select program
U - Enter
V - Program number
W - Program step
X - Specified size
Y - Measuring unit (cm or inch)
(Only EBA 435E)
•
Operation
•
