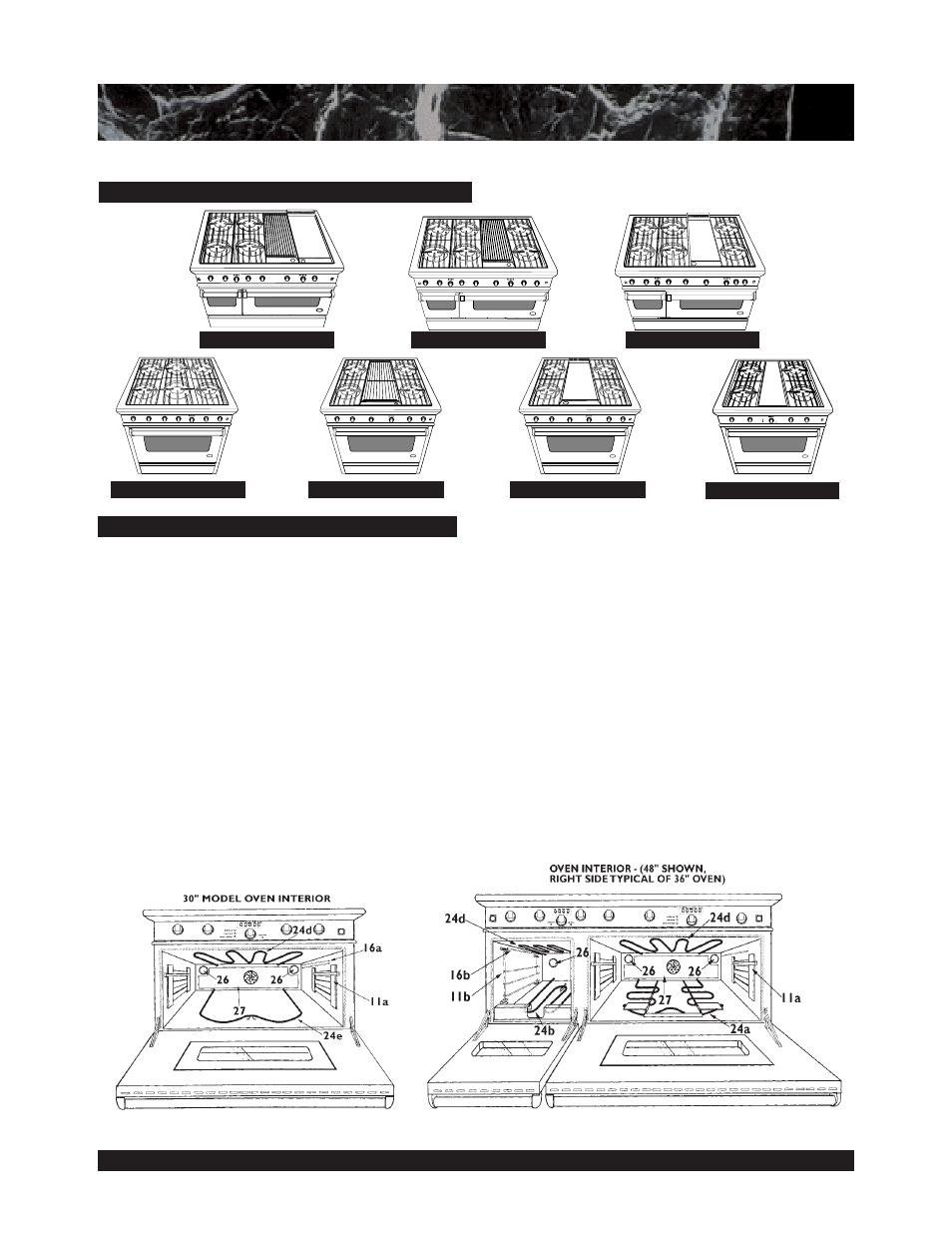

MODEL / PARTS IDENTIFICATION

6

DUAL-FUEL RANGE MODELS

1. Backguard. a-Island Trim, b-LowBack, c- Hi-Shelf
2. Burner Grates / Burners
3. Grill
4. Griddle
5. Cooktop Burner Control Knobs
6. Proofing Oven Control Knob
7. Grill Control Knob
8. Large Oven Mode Control Buttons
9. Griddle Control Knob
10. Small Oven Control Knobs
11. Oven Rack Slides. a-27”, 24” Oven, b-12” Proofing Oven
12. Oven Door. a-27”, 24” Oven, b-12” Proofing Oven
13. Oven Window. a-27”, 24” Oven, b-12” Proofing Oven
14. Door Handle. a-27”, 24” Oven, b-12” Proofing Oven
15. Door Handle Endcap
16. Thermostat Bulb. a-27” Oven, and 24” Oven there are two bulbs
top one is Main Thermostat lower one is Auto reset

PARTS IDENTIFICATION

DCS-RD-484GG

DCS-RD-486GL

DCS-RD-486GD

DCS-RD-366

DCS-RD-364GL

DCS-RD-364GD

OVEN ON

HEATING

DOOR LOCKED

HEATING

DCS-RD-304

b-12” Proofing Oven
17. Drip Pans
18. Oven Light Switch. a-27” Oven, b-12” Proofing Oven
19. Oven Door Gasket
20. Drain Tubes
21. Griddle Flue Cover (Vent)
22. 27” Oven Control Knob
23. Oven Racks. a-27” Oven Bake/Broil (3), b-12” Proofing Oven (2)
24. Oven Heating Element. a-27” Oven Bake, b-12Proofing Oven
Bake, c-27” Oven Broil, d-12” Proofing Oven Broil, e 30” Oven Bake/
Broil
25. Rating Plate / Serial Number.-

(in rear of Burner Box below Grates-- can

be seen when Grates are removed)

26. Oven Light
27. Convection Fan Baffle
28. 12” Oven Crumb Catch Tray
