DBK43A & DBK43B, pg. 22 899892 DBK Option Cards and Modules

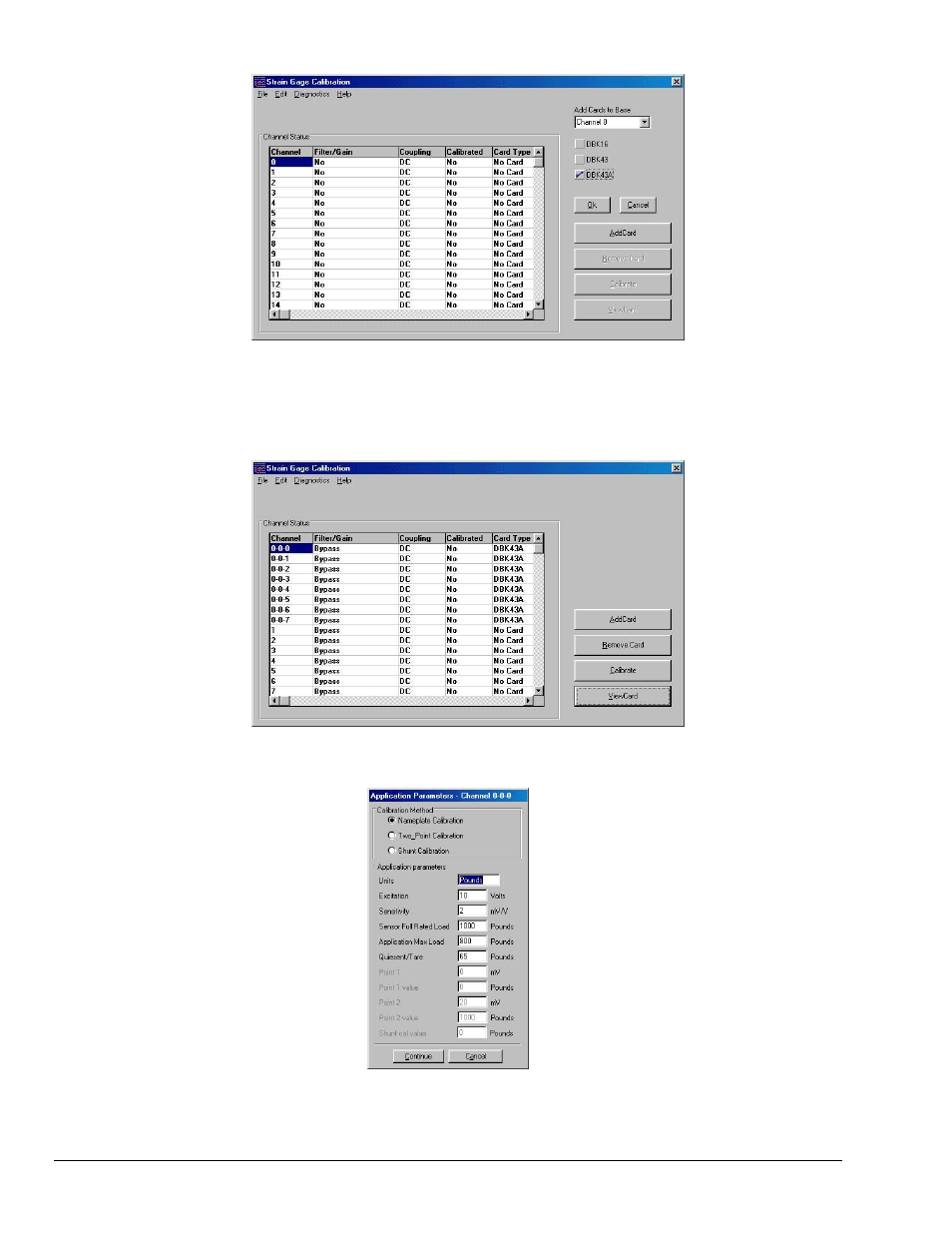

Selecting DBK43A
4. Click the <OK> button. The Strain Gage Calibration window will provide 3 digit channel
numbers in the form of “n
1
-n
2
-n
3
;” where n
1
is the card number, n
2
- is the bank number on the
card, and n
3
is the channel number. See following figure.
Strain Gage Calibration Window after Adding a Card
5. Click the <Calibrate> button. An Applications Parameter box appears. See following figure.
Application Parameters for Channel 0-0-0
