Repair Section
52

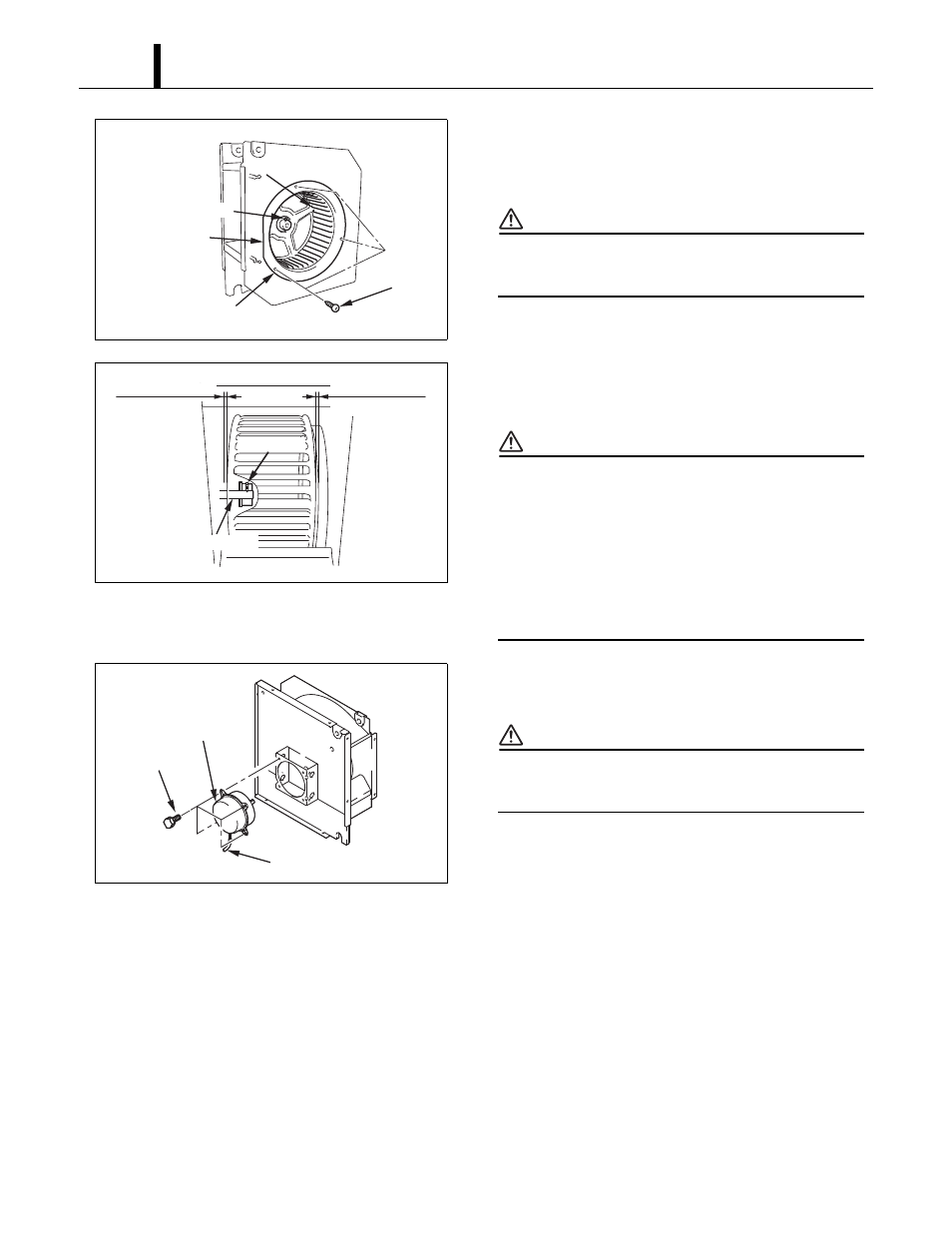

3) Take out the three (3) screws, and then remove
the ring. Loosen the set screw with an Allen
wrench and remove the fan.
CAUTION
When assembling the ring, ensure that the
straight surface of the ring is facing forward.
4) When assembling the fan, ensure that the screws
align with the motor axis positioning holes.
CAUTION
• Tightening torque:
- 3.7 ± 1.1 ft•lbf (5.0 ± 1.5 N•m)
• Verify the clearance between the fan and case
ring. After installing the fan and fan motor,
ensure that the clearance between the fan and
case ring is at least 0.12 in (3 mm).
5) Take out the four (4) bolts, and then remove the
fan motor.
CAUTION
When assembling the motor, ensure that the
wire connection ends are facing down.
I002774
Screws (3)
Ring
Fan
Set Screw
Straight Surface
I002775
Set Screw
0.12 in (3 mm)
or more 0.12 in (3 mm)
or more
Motor Axis
ILL00542-00
Motor
Bolts (4)
Wire Connection
