Repair Section
71
10. REASSEMBLY
10.1 Reassembly of Unit
• Reassemble the unit in the reverse order of removal. Described below are the parts that require
special care in reassembling the unit. Perform all wiring or rewiring as referenced in the wiring
diagram.

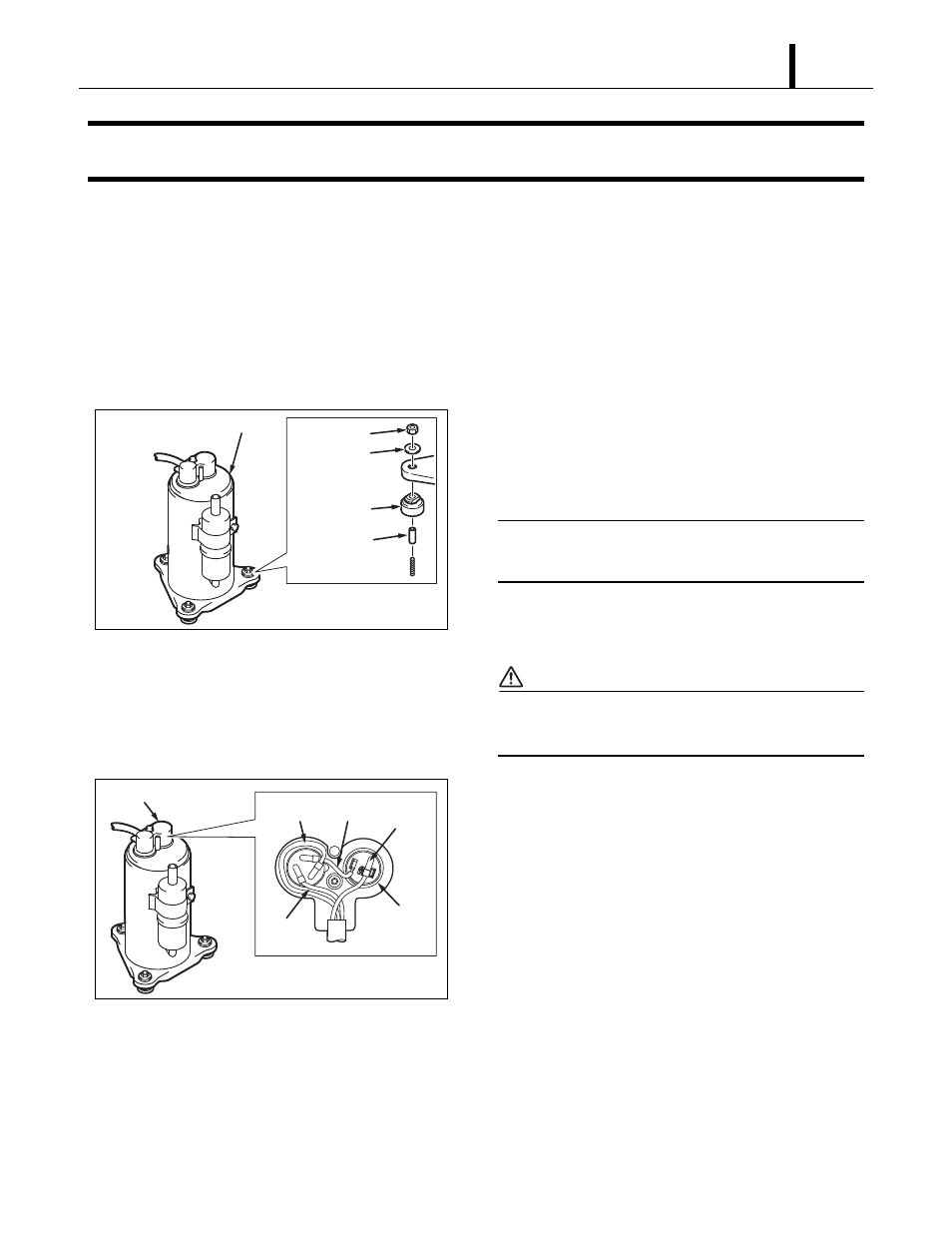

10.2 Compressor Installation
1) Install three (3) cushions and three (3) collars to
the bolts and mount the supplied compressor to
the unit.
< NOTE >
Cushions and collars are packaged in the
supplied compressor assembly.
2) Insert three (3) washers and tighten three (3)
nuts.
CAUTION
• Tightening torque:
- 8.3 ± 2.1 ft•lbf (11.3 ± 2.9 N•m)
3) Remove the plastic cover, wires and overload
relay from the compressor before brazing.
ILL00624-00
Nut (3)
Washer (3)
Cushion (3)
Collar (3)
Compressor
ILL00625-00
Plastic Cover
MC-R
OLC-3
Overload
Relay
MC-S MC-C
