(2) Field Wiring Connection
1) Power supply
• AC 220 V ± 10 %, 3 phase and 60 Hz. Do not connect the unit to any other power supply.
• The power supply should be a dedicated single outlet circuit with a UL approved short-circuit
and ground fault protective breaker with a recommended fuse size of 25 A (25 A maximum).
• Securely tighten each terminal.
CAUTION
Use a specified 25 A fuse. Do not use wiring, copper wire or soldering instead of the fuse. The
use of non-specified fuses can cause machine failure or fire.

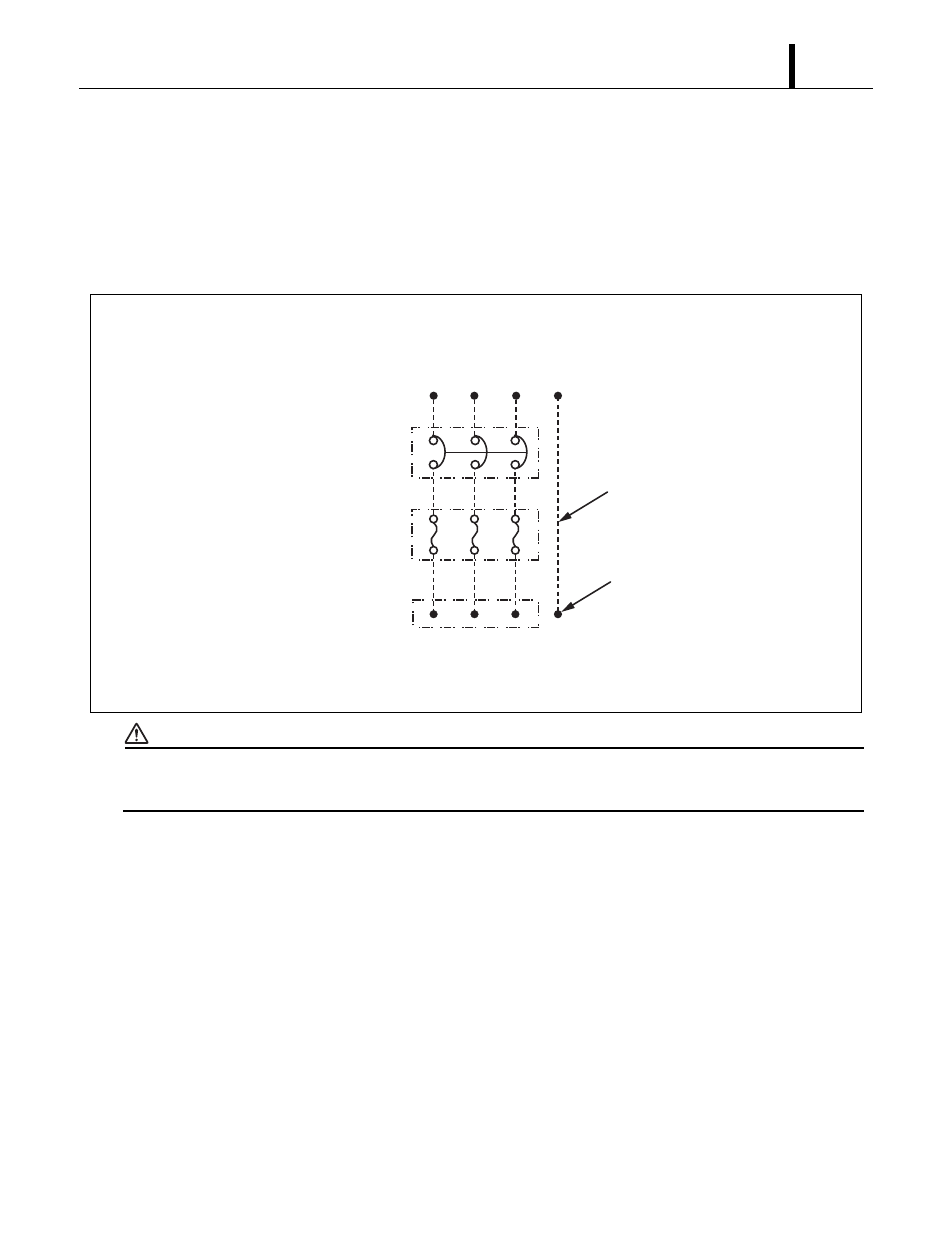

I003102
Circuit Breaker With
Ground-Fault Protective
Grounding
Terminal
Green
Colored Wire
Fuse 25 A (25 A MAX.)
R S T G
R S T G
Terminal Block of Classic 40
Power Source
AC 220 V, 3 Phase, 60 Hz
