Product overview
SFP-3G-EO-OE-C1xxx-L is an optical video SFPs with one optical transmitter and one long
haul optical receiver. The SFPs have been specially designed to handle pathological pattern
that occurs in uncompressed video signals. These patterns occurs in both SD-SDI, HD-SDI
and 3G-SDI, and Nevion has carefully chosen designs that withstands these patterns without
any penalty in performance. The SFP’s have the ability to report information such as
wavelength, signal presence, received signal level, launch power and internal temperature.
This information is available in some of Nevion’s SFP based products presented through their
respective element management system.
Status
SDI in
SDI out
Optical in
Optical out

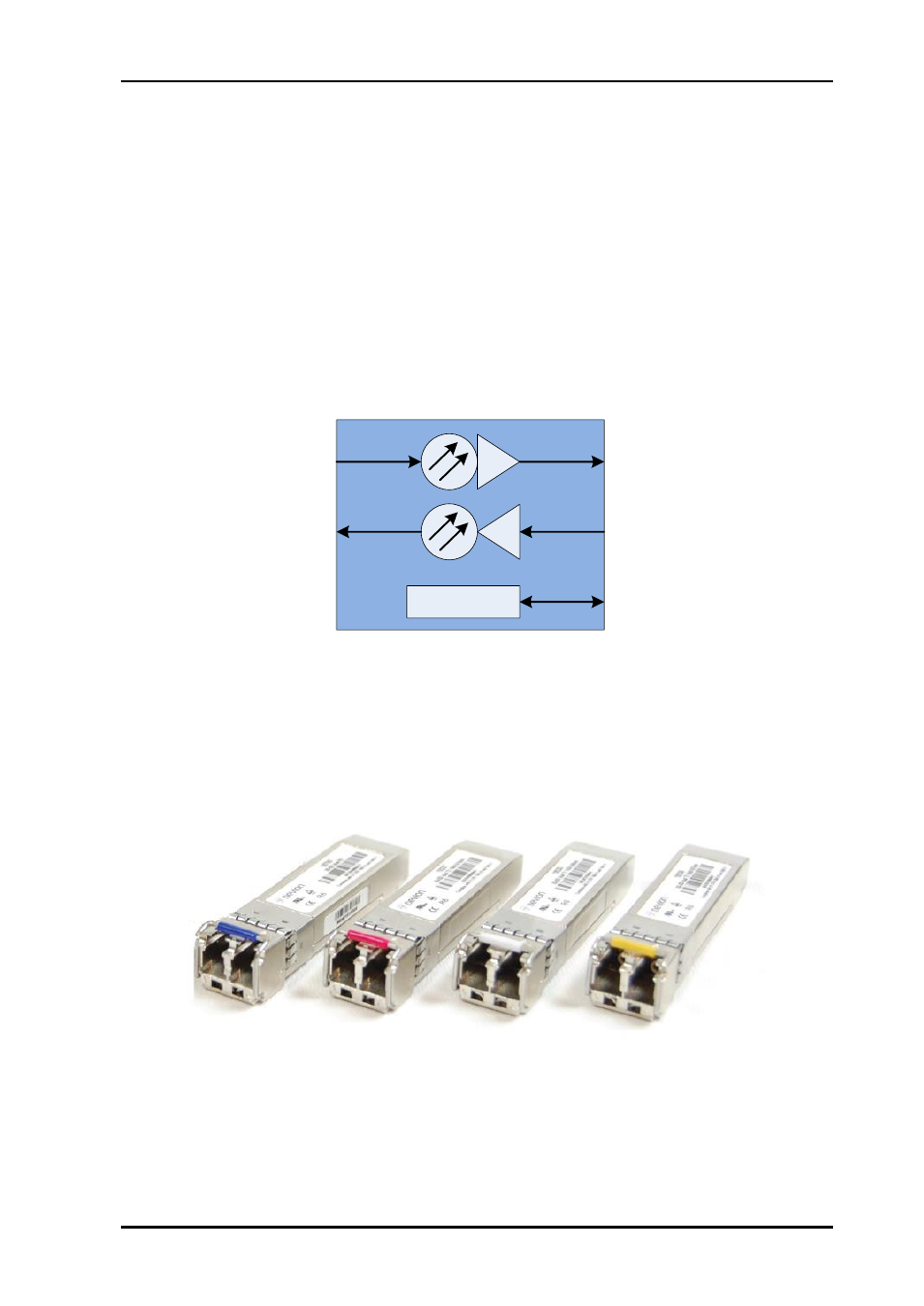

Figure 1 Block diagram
Figure 2 Picture of SFP's
