Pole Mounting
The dome can be mounted on a pole with the small or large direct mounting assembly
and a wall mount bracket.
Items Needed:
•
Dome Camera
•
Wall Mount Bracket Accessory
•
Small/Large Pole Mount
Accessory
•
Stainless Steel Straps
•
Waterproof Gasket (supplied)
Tools Needed:
•
Stainless Steel Strap Cutter
Screwdriver
r
Installation Steps:

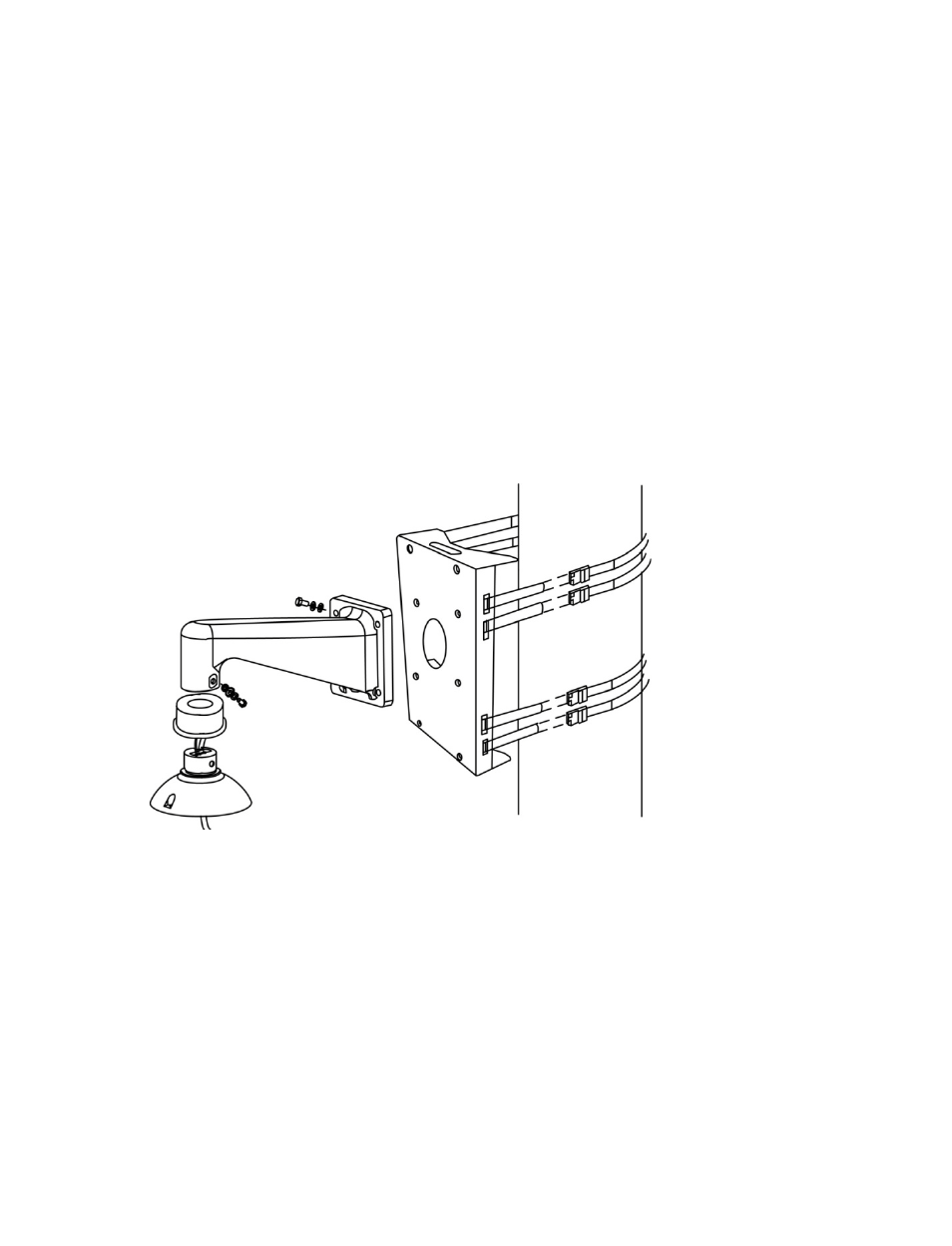

1. Fasten the small/large pole mount to the pole with stainless steel straps.
2. Attach the wall mount bracket to the pole mount with the supplied screws and
washers.
3. Attach the waterproof gasket to the wall mount bracket.
4. Thread the cables through the wall mount and the top holder.
5. Block the cable entry hole with the supplied sponge.
6. Attach the top holder to the wall mount with the supplied screws and washers
and adjust the gasket to the junction of the wall mount and the top holder.
7. Connect the cables to the dome camera.
8. Attach the dome to the top holder and secure them with the supplied screw.
