Connect aspirator tube to deoseptic swivel.
B
Screw bottle onto deoseptic swivel.
A
Position diverter valve on top of tube gasket and secure with
diverter valve coupling nut; tightening hand tight.
C
Turn the diverter valve assembly to allow threading support rod into
back of diverter body. Slide wall support flange onto support rod
and turn the diverter valve assembly so that the wall support flange
is flush with wall.
D
Use the wall support flange as a template and mark off holes on
finished wall for mounting screws. Remove diverter valve assembly
and drill two 5/16” (8 mm) holes at the locations marked. Install an
anchor in each hole.
E
Position the diverter valve on top of adapter ring and secure with
diverter valve coupling; tightening hand tight. Rotate diverter valve
so that the support rod flange mounting holes are aligned with the
mounting holes in the finished wall.
F
Secure flange with the two (2) screws provided. Tighten set screw
in wall support flange.

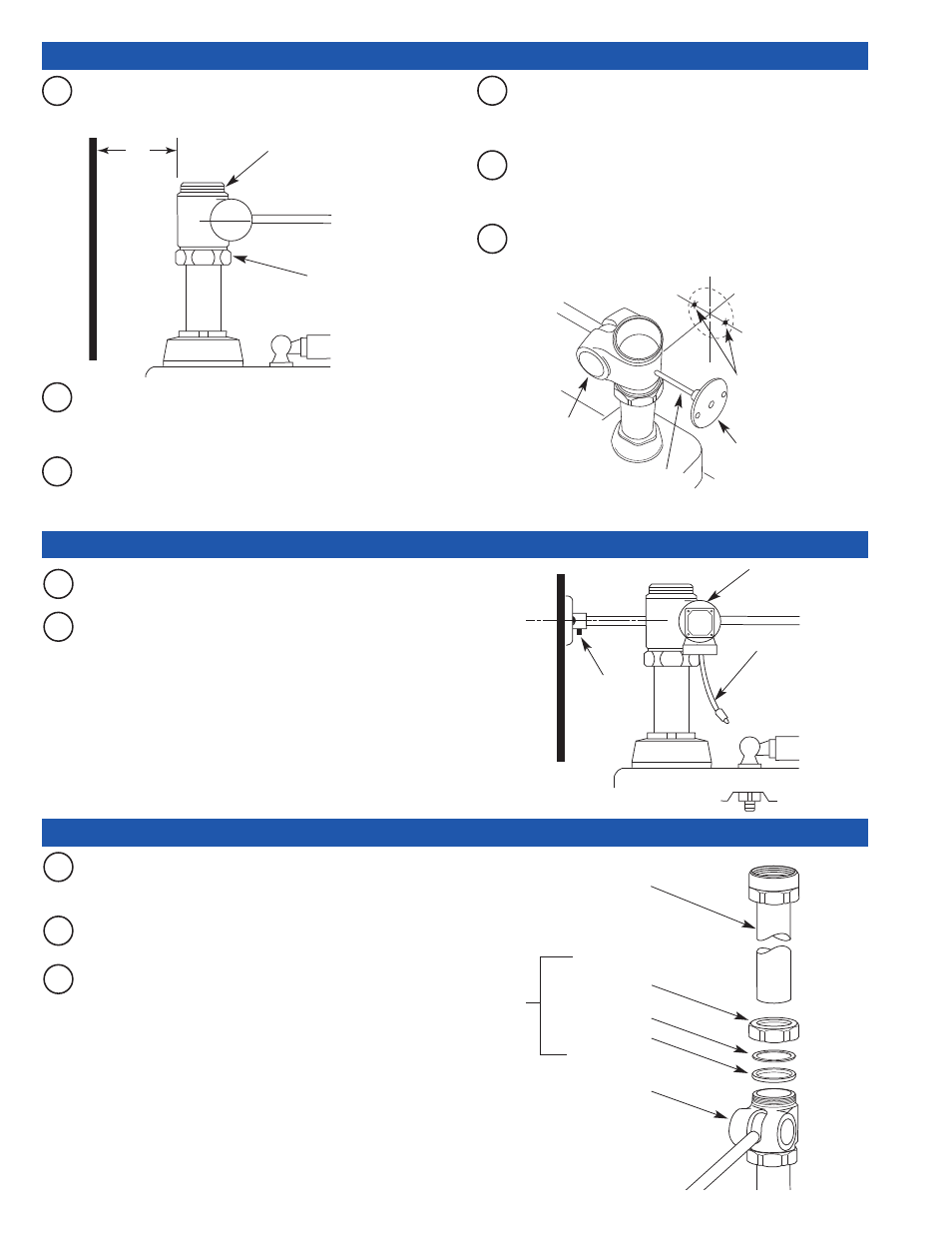

DIVERTER VALVE ASSEMBLY
X
DIVERTER VALVE
COUPING
DIVERTER
VALVE
ASSEMBLY
SUPPORT ROD
5/16”(8 mm)
HOLE FOR
ANCHORS
WALL
SUPPORT
FLANGE
DIOSEPTIC SWIVEL
ASPIRATOR TUBE
SET SCREW
Slide the diverter valve coupling nut, nylon slip gasket and rubber
gasket over the vacuum breaker tube and secure tube to diverter
valve.
A
Hand tighten diverter valve coupling nut onto diverter valve
assembly.
B
Length of vacuum breaker tube may be shortened to accommodate
lower valve installation height.
C
V-600-AA VACUUM
BREAKER TUBE
DIVERTER VALVE
COUPLING NUT
NYLON SLIP GASKET
RUBBER GASKET
DIVERTER VALVE
ASSEMBLY
F-2-A
4 - INSTALL DIVERTER VALVE AND WALL SUPPORT FLANGE
5 - INSTALL DEOSEPTIC UNIT (9005 MODELS ONLY)
6 - INSTALL VACUUM BREAKER FLUSH CONNECTION
B
Determine required length of support rod by measuring distance
between finish wall and back of diverter valve at support rod hole.
Add 1/4” (6 mm) to the length determined and cut the support rod
to size.
