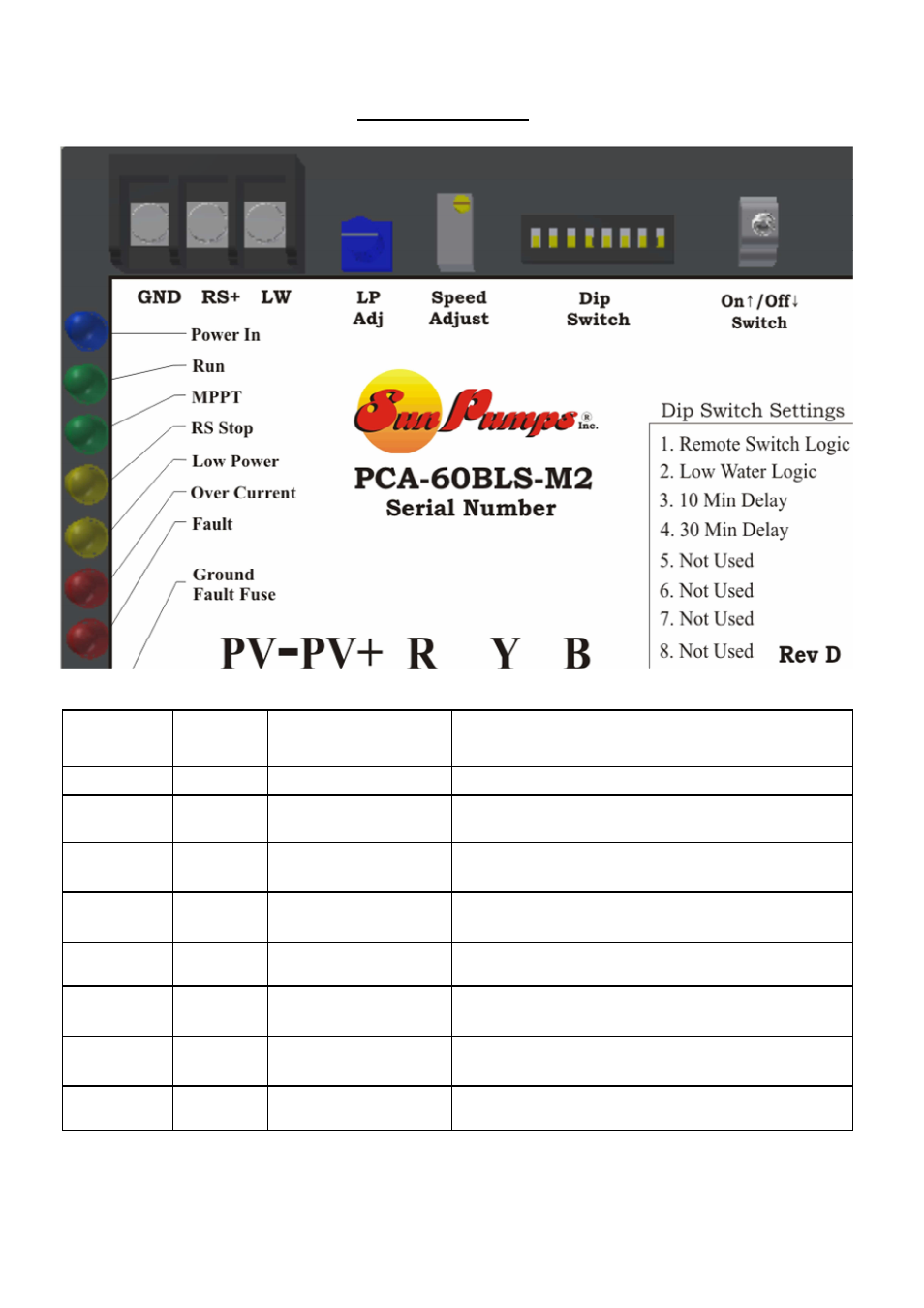

Figure 4
Dip Switch Settings
Switch
Switch
Description
Function
Default Setting
Number
Position
1
OFF
Remote Switch Logic
Turns pump off when terminals connect.
OFF
1
ON
Remote Switch Logic
Turns Pump on when terminals connect.
OFF
2
OFF
Low Water Cutoff Logic
Turns pump off when terminals connect.
OFF
2
ON
Low Water Cutoff Logic
Turns pump on when terminals connect.
OFF
3
ON
10 Minute Delay
Increases turn on delay to 10 minutes
OFF
4
ON
30 Minute Delay
Increases turn on delay to 30 minutes
OFF
5,6,7,8
OFF
Not used at this time
Must be in the off position for proper
operation
