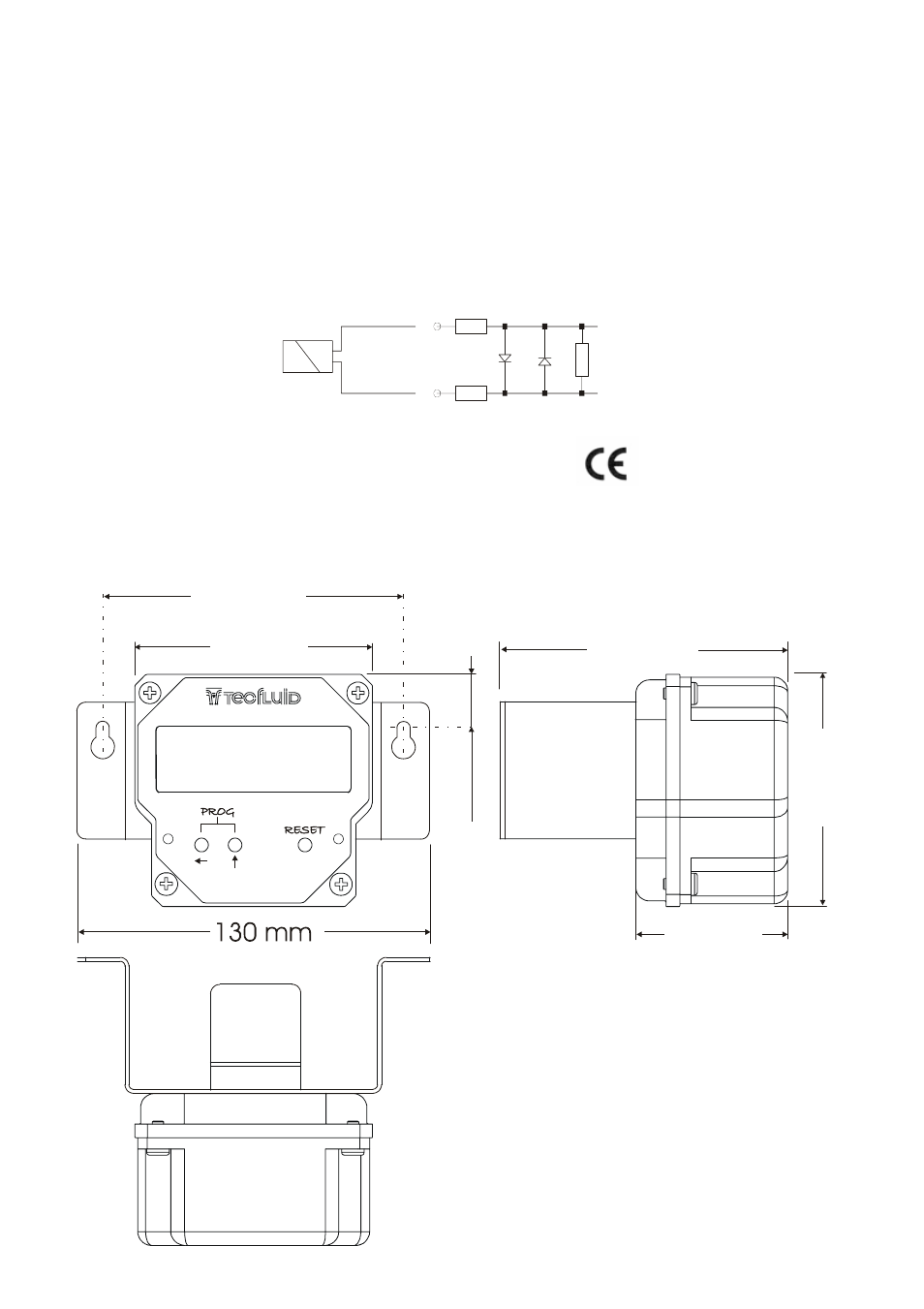

8.5.2 .Turbine
The turbine input is designed for connecting to the coil of a magnetic pick-up.
The input impedance is 1,2 KΩ. This input is protected to limit the maximum
applied voltage to the circuit. This protection consists of two diodes in parallel and
two 100 Ohm resistors.
The maximum voltage that can be applied to the input is 10 Vpp. Voltages higher
that this can cause damage to the equipment.
The maximum input frequency is 5000 Hz
The minimum input voltage is 7 mVpp
Complies with the Directive EMC 89/336/EEC
9. DIMENSIONS FOR CIP II M
100
1K
100
2
3
Pick-up
7
104 mm 86 mm
113 mm
52 mm
84
m
m
20
mm
