2
Item Quantity Description
1 1
Expediter Assembly
Support Cap with O-Ring
Threaded Grommet Compressor
Grommet
Wall Mount Support Base with O-Ring
2 1 Junction Box Lid
3 1 Junction Box Base with O-Ring
4 1 Wall Mount Bracket
5 3 M5 Screws
6 3 Lock Washers
7 1 Terminal Block with DIN Rail
8 1 Junction Box Lid Cord
9 1 Nut
10 1 Power Gland
11 2 Blind Plugs
12 1-2 PTD-100 Temperature Sensor(s)
13 1 Sealing Washer
14 1
Banding (for PTD-100 Temperature Sensor)
Banding (Optional, see Steps 1a or 1c)
15 1 XP-1 Bracket (Optional, see Step 1c)

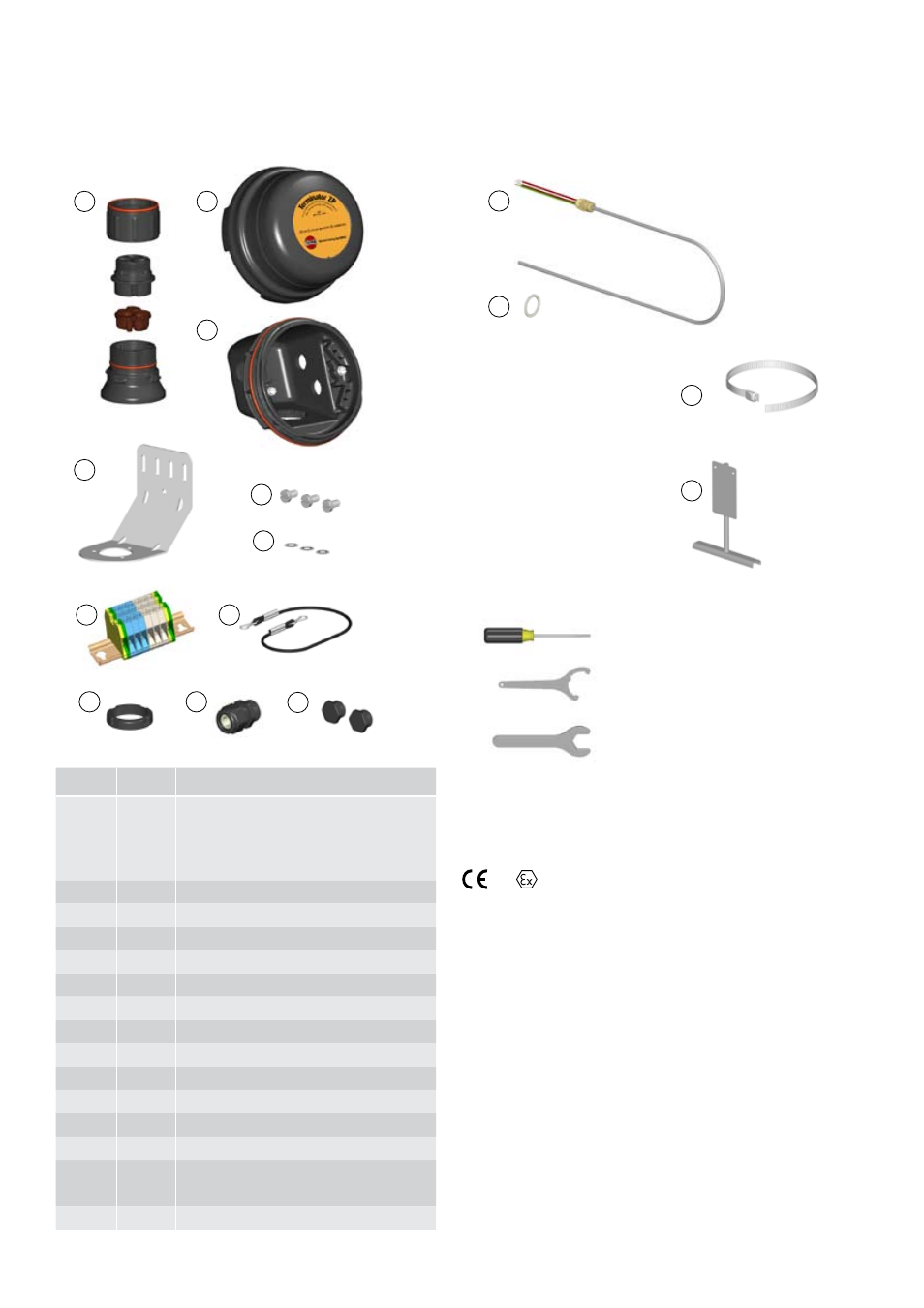

Kit Contents . . .
2
3
Terminator
TM
ZP-PTD100-WP
INSTALLATION PROCEDURES
4
1
5
6
7 8
9 10 11
PTD-100 Temperature sensor Kit (order separately)
12
13
B-type Tanding (order separately)
B-4: for pipes up to 4"
B-10: for pipes up to 10"
B-21: for pipes up to 21"
14
XP-1-140X80 Stainless Steel
Mounting Bracket
(order separately) 15
Certifications/Approvals . . .
1725 II 2 GD Ex db eb IIC T4-T6, Ex tb IIIC T135°C-T85°C FM 10ATEX0058X
IP66 -48°C ≤ Ta ≤ +55°C
Ordinary & Hazardous Locations
IECEx FMG 10.0022X Ex db eb IIC T4-T6, Ex tb IIIC T135°C-T85°C
Warnings . . .
• Due to the risk of electrical shock, arcing and fire caused by
product damage or improper usage, installation or mainte-
nance, a ground-fault protection device is required.
• Installation must comply with Thermon requirements and be
installed in accordance with the regulations as per the norm
EN IEC 60079-14 for hazardous areas (where applicable), or
any other applicable national and local codes.
• Component approvals and performance ratings are based
on the use of Thermon specified parts only.
• De-energize all power sources before opening enclosure.
• Keep temperature sensor and kit components dry before and
during installation.
• Minimum bending radius of heating cable is 30 mm. Measur-
ing tip (15 mm in length) should not be bent.
Tools Required . . .
Terminator-LN-Tool
(order separately)
3 mm
8 mm
19 mm
22 mm
23 mm 29 mm
33 mm
