The grounded method often works better for tracing coaxial
cables. Connect one clip of the FOX 2 to a ground or fake
ground, and the other clip to the shield of the coax. This
method will cause the coax to radiate enough tracer tone to
trace the coax thru drywall. An optional RJ-45 to BNC adap-
tor is available for this purpose (see Figure 6). The adaptor
has its own ground clip, so its not necessary to use either of
the FOX 2 clips. See the Accessories section for additional
information.

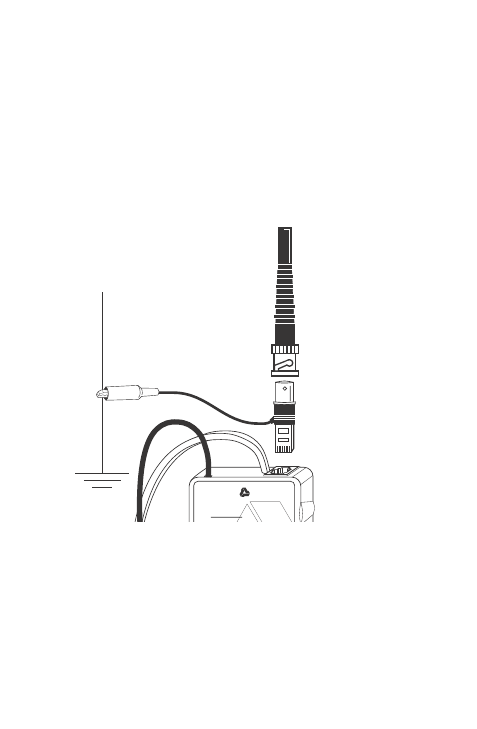

Figure 6
To identify the coax, if using the floating method, momen-
tarily short the shield and center conductor together to ac-
tive TrueTrace, and listen for the cadence change. If it
changes, you’ve found the target coax. If no change occurs,
keep searching.
VISUAL CONT.
TALK
CORDLESS
INTERFACE TRIPLETT
RJ-45 to BNC
Adaptor
(PN: 2455-824)
