Chapter 4. IOCDS Sample Definitions
4-8
707159-002

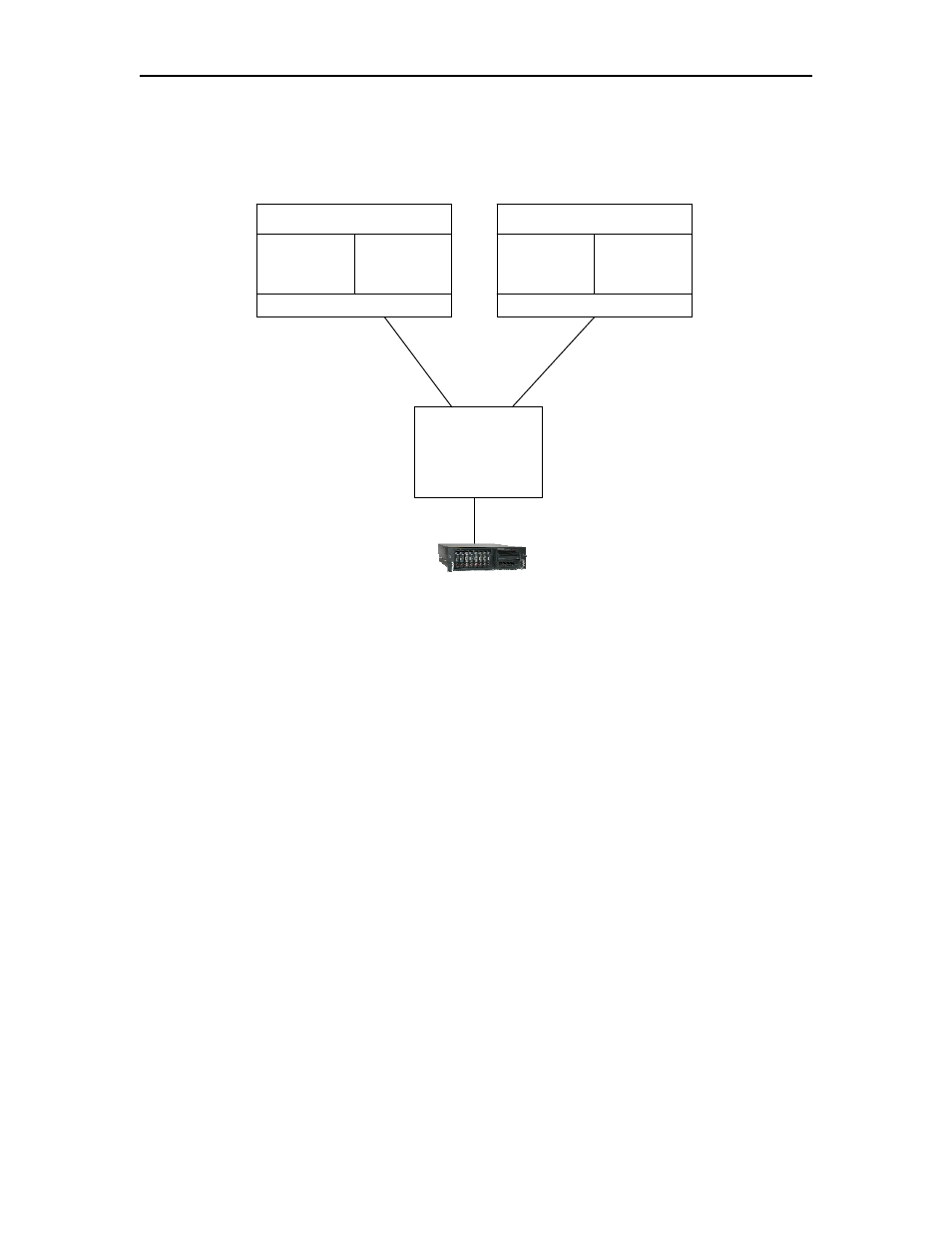

EXAMPLE 5 – Multiple LCSS and ESCON
This example is similar to the last one except all of the LPARS are on a
single CPU that has two Logical Channel Subsystems (LCSS). An
ESCON switch is used similar to before, and a single ESCON cable is
run into the switch from each LCSS to which in turn is connected to the
switch through a single ESCON cable. Users on the CCA-3074 can
have sessions on any or all of the 4 LPARs shown. Up to 16 LPARs
can be supported through the single ESCON interface to the CCA-
3074.
LPAR390B
TEST2
43
MIF
LPAR390
TEST1
1F
MIF
SWITCH 04
C4
A1
19
CCA-3074
LCSS0
LCSS1
