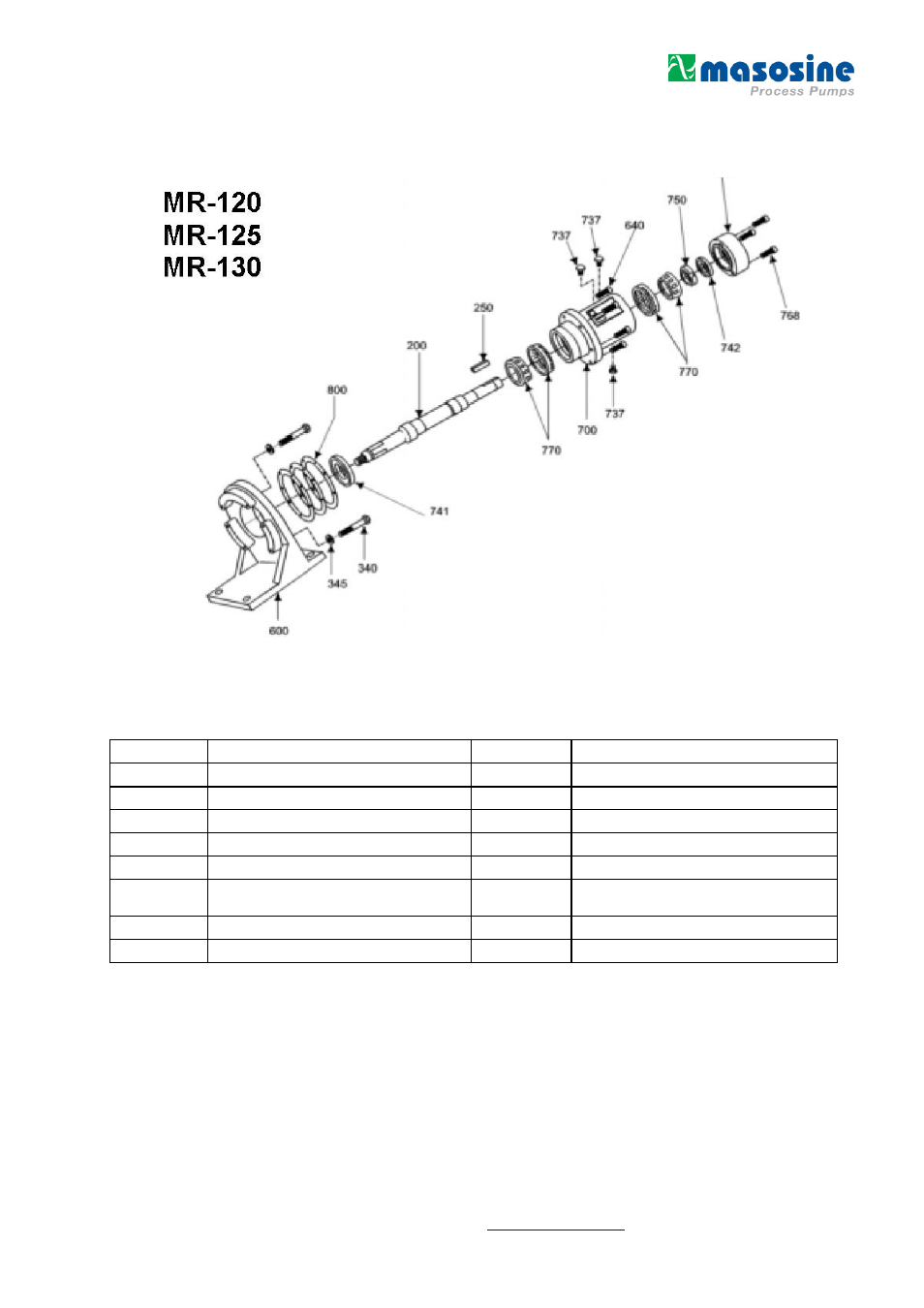

Power End Exploded View
Note: Shims (Item 800) may vary in both number and thickness.
Item No. Description Item No. Description
200 Shaft 741 Oil Seal, Inboard
250 Shaft Key 742 Oil Seal, Outboard
340 Housing Mounting Bolts 750 Baring Lock Nut
345 Housing Mounting Washers 760 Bearing Housing Cover
600 Power Frame 768 Bearing Housing Cover Cap Screws
640
Bearing Housing Mounting Cap
Screws
770 Tapered Roller Bearings
700 Bearing Housing 800 Shims
737 Oil Fill/Level/Drain Plugs
760
