AIRLESSCO MP400 - Manual (Page 22)

Parts
22 332882A
Parts

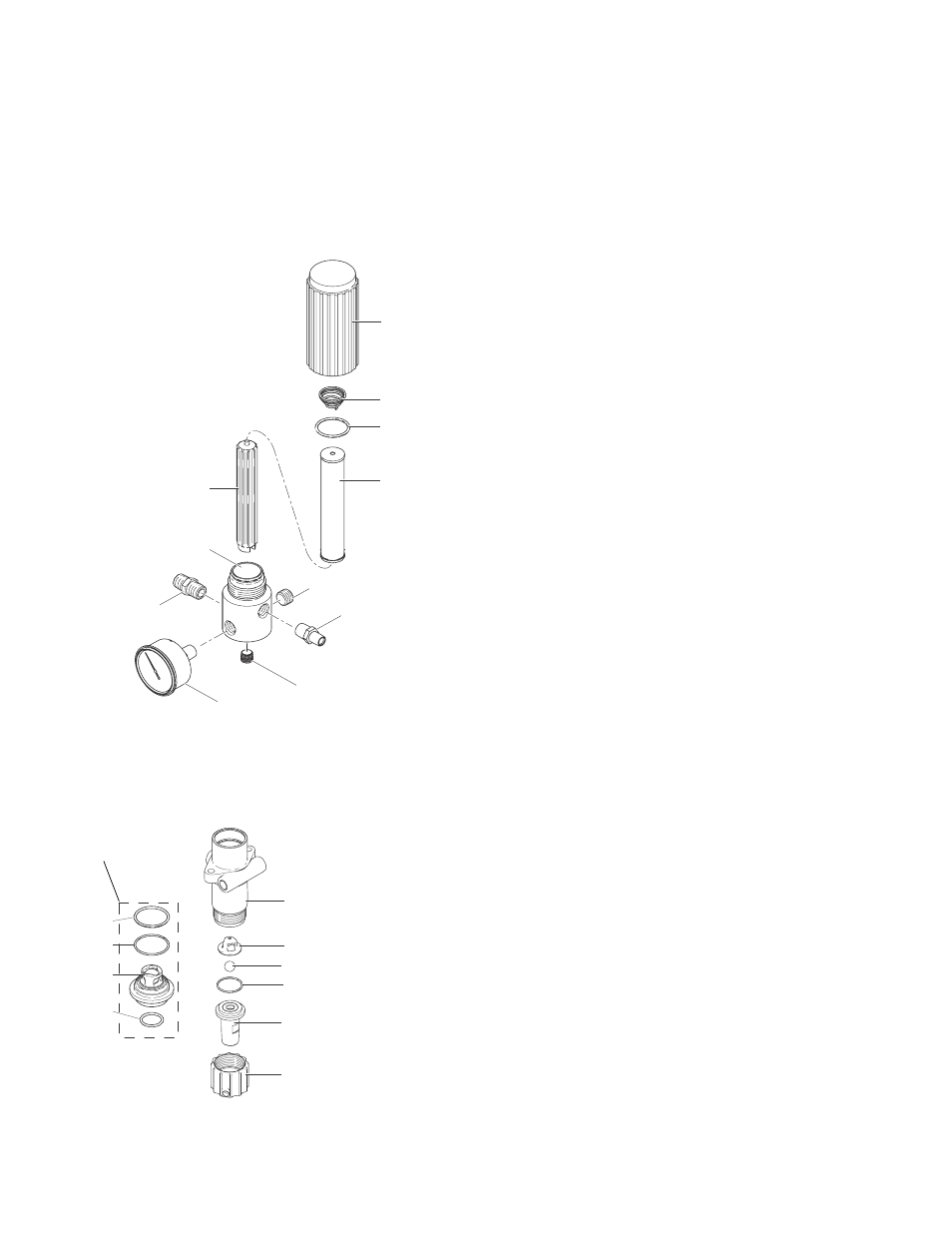

Manifold Filter (868014)
Model 868057
Inlet Valve
1
2
3
4
5
9
6
10
7
46
44
Ref. Part Description Qty.
1 867145 COVER 1
2 301356 SPRING 1
3 867377 O-RING 1
4 867214 FILTER 60 MESH 1
5 867647 SUPPORT 1
6 867077 BASE 1
7 867420 PLUG 1
9 867309 NIPPLE 3/8” NPT x 1/4” NPT 1
10 557391 PLUG 1/4” NPT 1
44‡ FITTING 1
46‡ GAUGE, pressure 1
‡ Not included in Manifold Kit 868014, See page 27.
ti22327a
8
9
10
11
12
13
159
160
157
158
Ref. Part Description Qty.
8 331011 FLUID PUMP BODY 1
9 331029 SUCTION BALL GUIDE 1
10 331030 SUCTION BALL 1
11 108526 O-RING 1
12 331292 SUCTION SEAT (HI-BOY) 1
13 331034 SUCTION NUT 1
157 ‡ SUCTION SEAT ASSEMBLY (Stand) 1
158 ‡ O-RING 1
159 ‡ O-RING 1
160 ‡ RING, BACKUP 1
 Included in O-Ring Kit 16W484.
‡ Included in Kit 331051.
ti16056b
Stand Model
