Parts
332882A 29

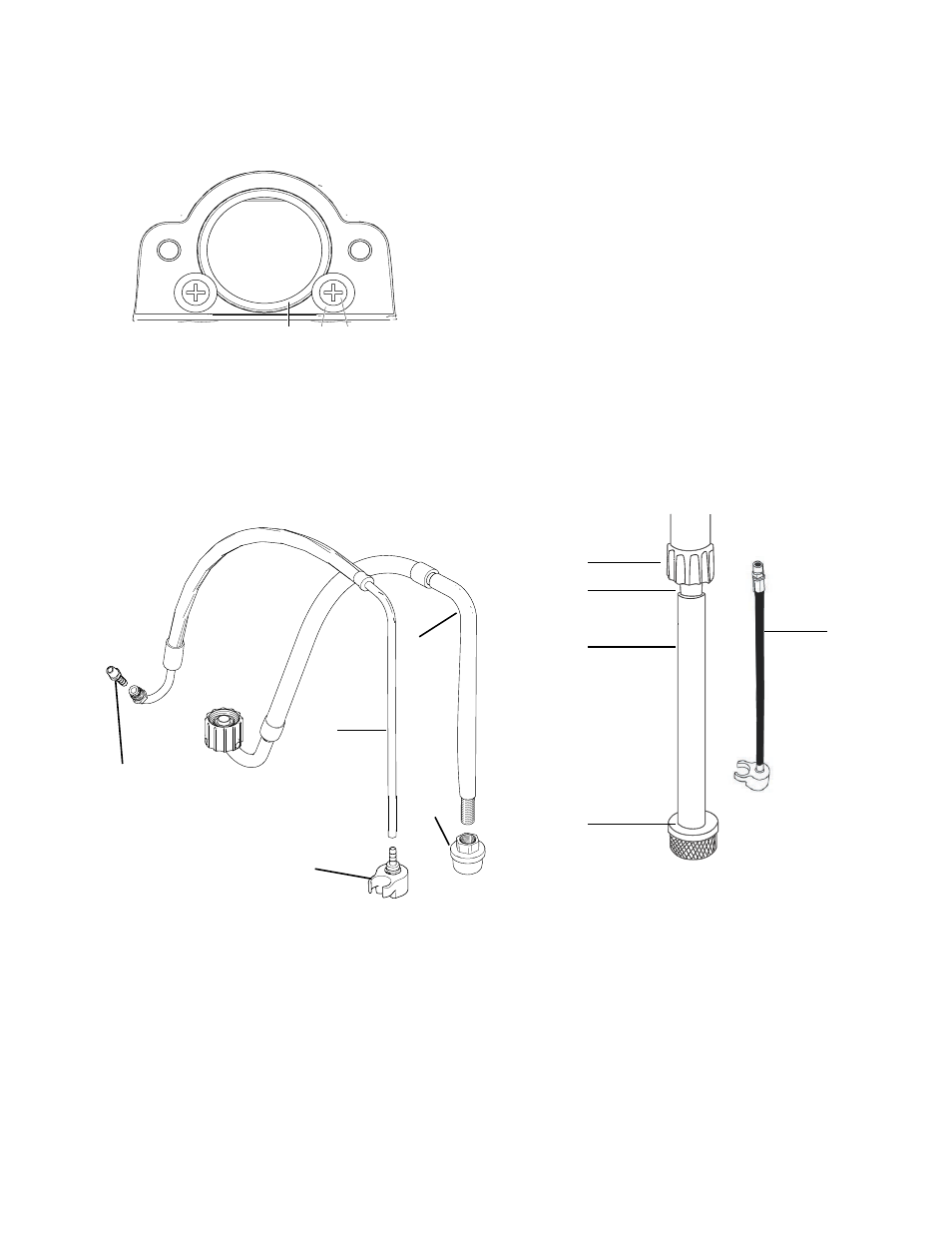

Suction Assemblies
1 2 3
Gearbox Sleeve Bearing Replacement
NOTE: When replacing item (1), cover outside of
sleeve with 6 drops of Loctite 246 prior to inserting into
cover assembly.
Ref. Part Description Qty.
1 331061 SLEEVE BEARING 1
2 331103 WASHER 2
3 331197 SCREW 2
ti16059a
Stand Chassis
Ref. Part Description Qty.
1 331290 SUCTION HOSE ASSEMBLY 1
2 187651 INLET STRAINER 1
4* HOSE, 1/4 ID X 3/8 OD 40”
5* 244035 DEFLECTOR, BARBED 1
6* 114287 FITING, BARBED 1
* Sold in Kit 301349
Hi-Boy Chassis (331284)
Ref. Part Description Qty.
1 301348 BYPASS HOSE ASSEMBLY 1
2 331034 SUCTION NUT 1
3 331292 SUCTION SEAT ASSEMBLY 1
4 331400 INLET TUBE 1
5 187190 INLET STRAINER 1
ti22330a
ti16061a
5
4
1
6
2
1
3
2
5
4
