AIRLESSCO GS6250 - Manual (Page 24)

Parts
24 3A1187E

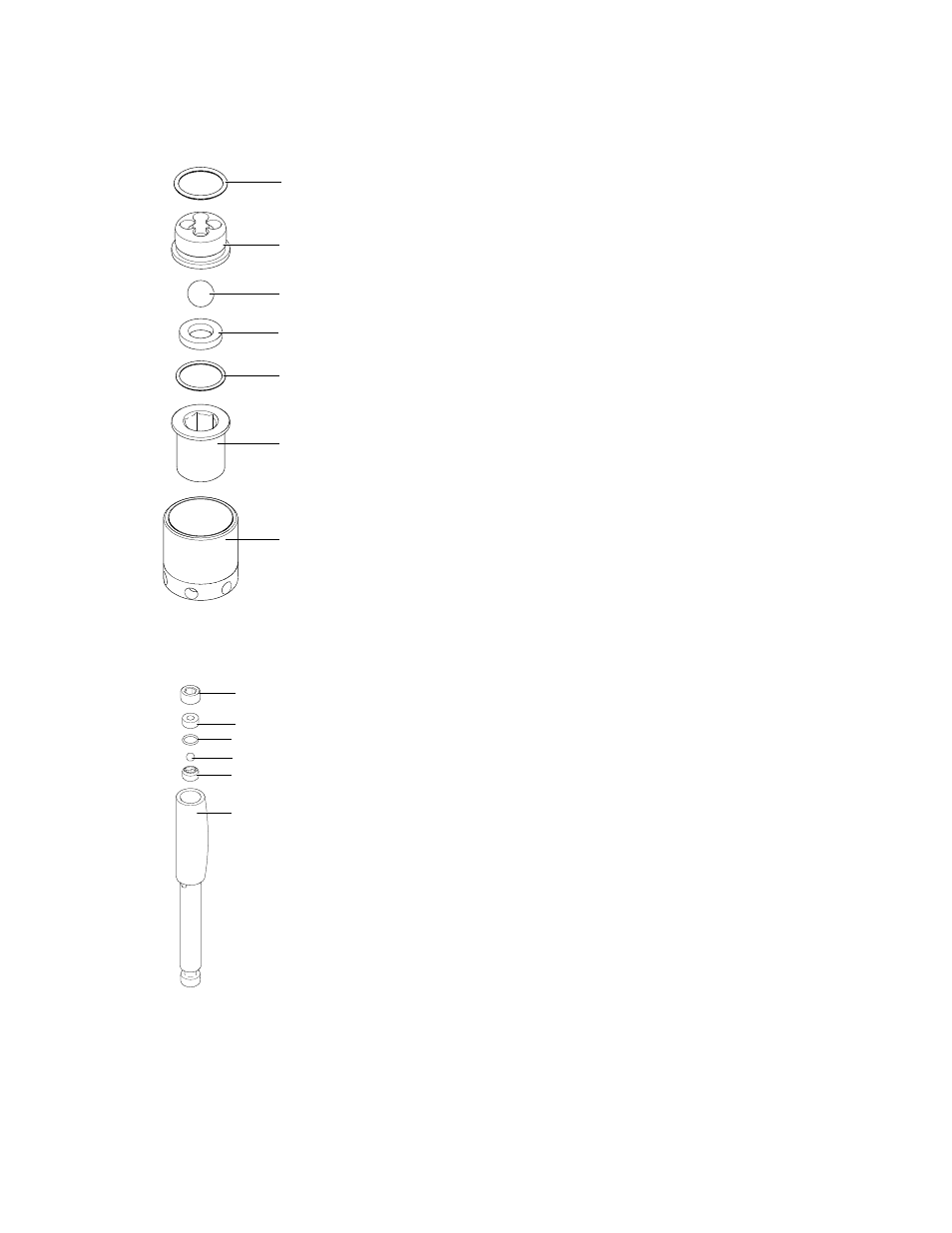

Inlet Valve
Outlet Valve
1
2
3
4
5
6
7
Ref. Part Description Qty.
1 556562 BLACK O-RING 1
2 866306 INLET RETAINER 1
3 101822 INLET BALL 1
4 867574 INLET SEAT 1
5 867390 WHITE O-RING 1
6 866400 SUCTION FITTING 1
7 866241 SUCTION NUT 1
ti15999a
8
9
10
11
12
13
ti16000a
Ref. Part Description Qty.
8* 866274 RETAINER 1
9 867575 OUTLET SEAT 1
10 104319 WHITE O-RING 1
11 867047 OUTLET BALL 1
12* 866307 OUTLET RETAINER 1
13* 187330 PISTON 1
* Included in Item No. 13
