AIRLESSCO GS6250 - Manual (Page 27)

Parts
3A1187E 27
Clutch Replacement

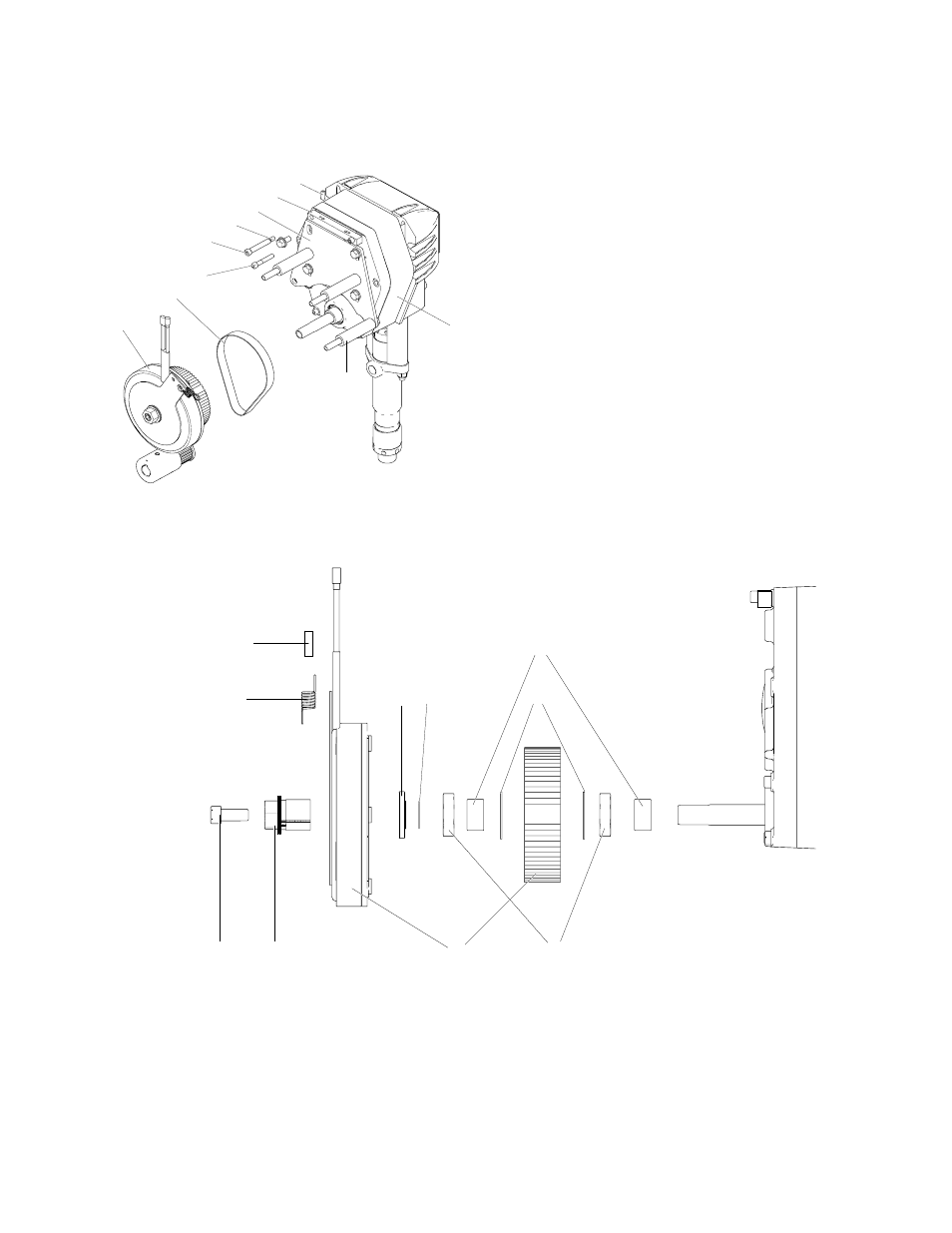

Clutch Replacement (866054)
1
2
10
6
7
8
9
3
4
5
ti16007a
Ref. Part Description Qty.
1 301284 CLUTCH REPLACEMENT 1
2 301231 COG BELT 1
3 305088 SCREW 1
4 867602 SHOULDER SCREW 1
5 111800 SCREW FLANGED 4
6 867581 SET SCREW 2
7 301534 BLOCK TENSIONER 1
8 301208 GEARBOX 1
9 305045 PLATE 1
10 305046 SPACER TUBE 1
2 1 3 3
9
10
8 7 6 6
4 4
5 5
Ref. Part Description Qty. Ref. Part Description Qty.
1 866322 DIFFERENTIAL SCREW 1 6 867464 RETAINING RING 2
2 866234 COUPLING NUT ASSEMBLY 1 7 301413 REMOVABLE SPACER 1
3 CLUTCH 1 8 301412 SPACER 1
4 301037 BEARING 2 9 136068 SPRING 1
5 301274 SPACER 2 10 301316 RUBBER EDGE 1
ti16008a
