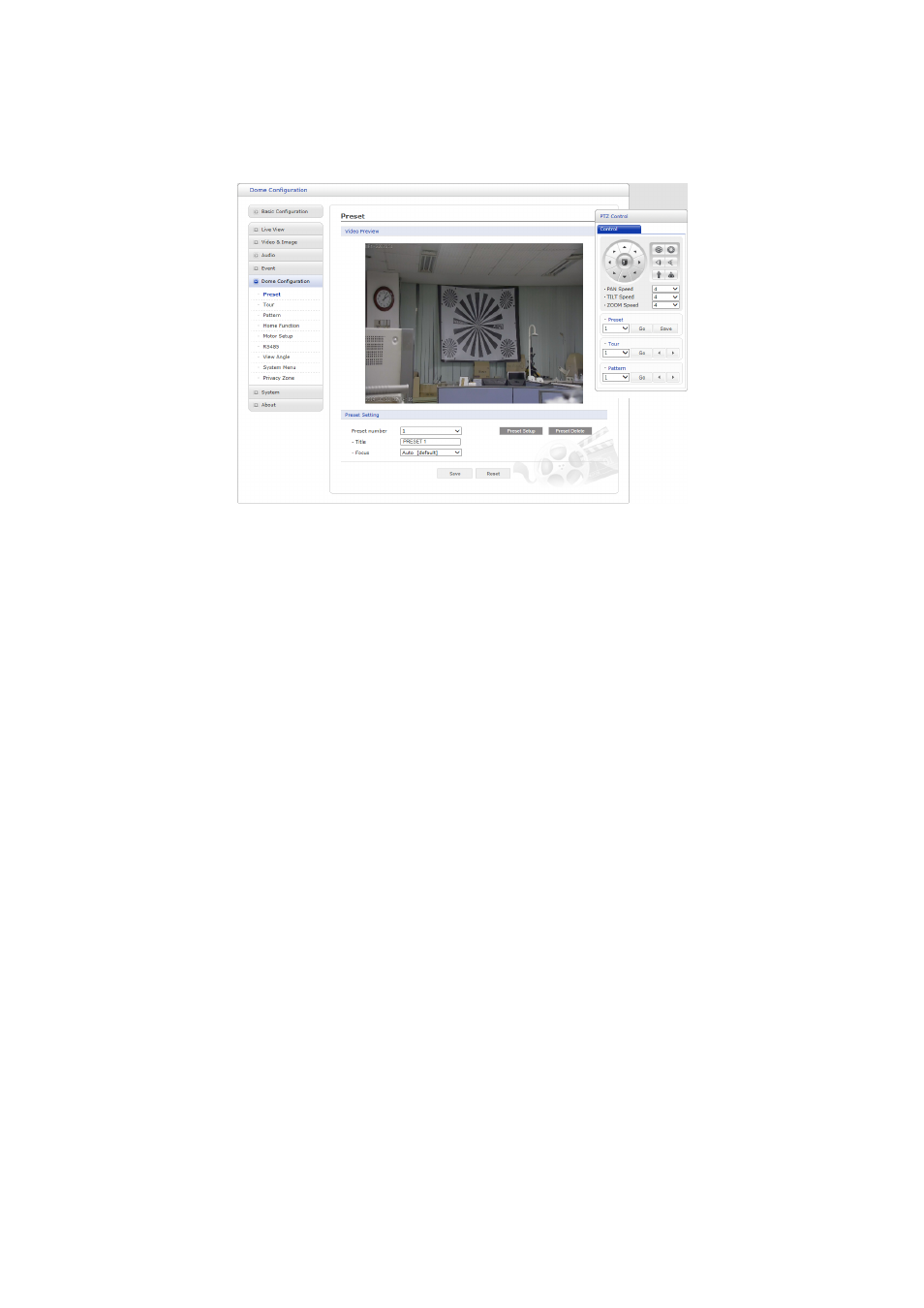

3.6.6 Dome Configuration
1) Preset
If you need to view specific places routinely, you should program Presets. A Preset is a pro-
grammed video scene with automatic pan, tilt, zoom and focus settings. Once programmed,
clicking the Preset number or clicking the Go button in the PTZ Control Panel calls up that
Preset automatically.
• Preset Setting:
– Preset number: The Preset number can be selected in the range 1 - 256.
– Title: Up to 12 characters (Alphanumeric characters and space)
– Focus:
∗ Auto: Auto Focus is always active.
∗ Manual: Auto Focus is inactive.
– Preset Setup: Activate the PTZ Control Panel.
– Preset Delete: Delete selected Preset number.
Follow steps below to store the Preset positions:
1. Click the Preset Setup button, then shows the PTZ Control Panel.
2. Choose the desired Preset number from the Preset drop-down list:
3. After aiming the camera (view direction and lens control) by using the Arrow and Zoom
button in PTZ Control Panel, click the Save button.
4. Repeat step 2 through 3 for each additional Preset position.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
59
