SD Aspect Ratio Conversion

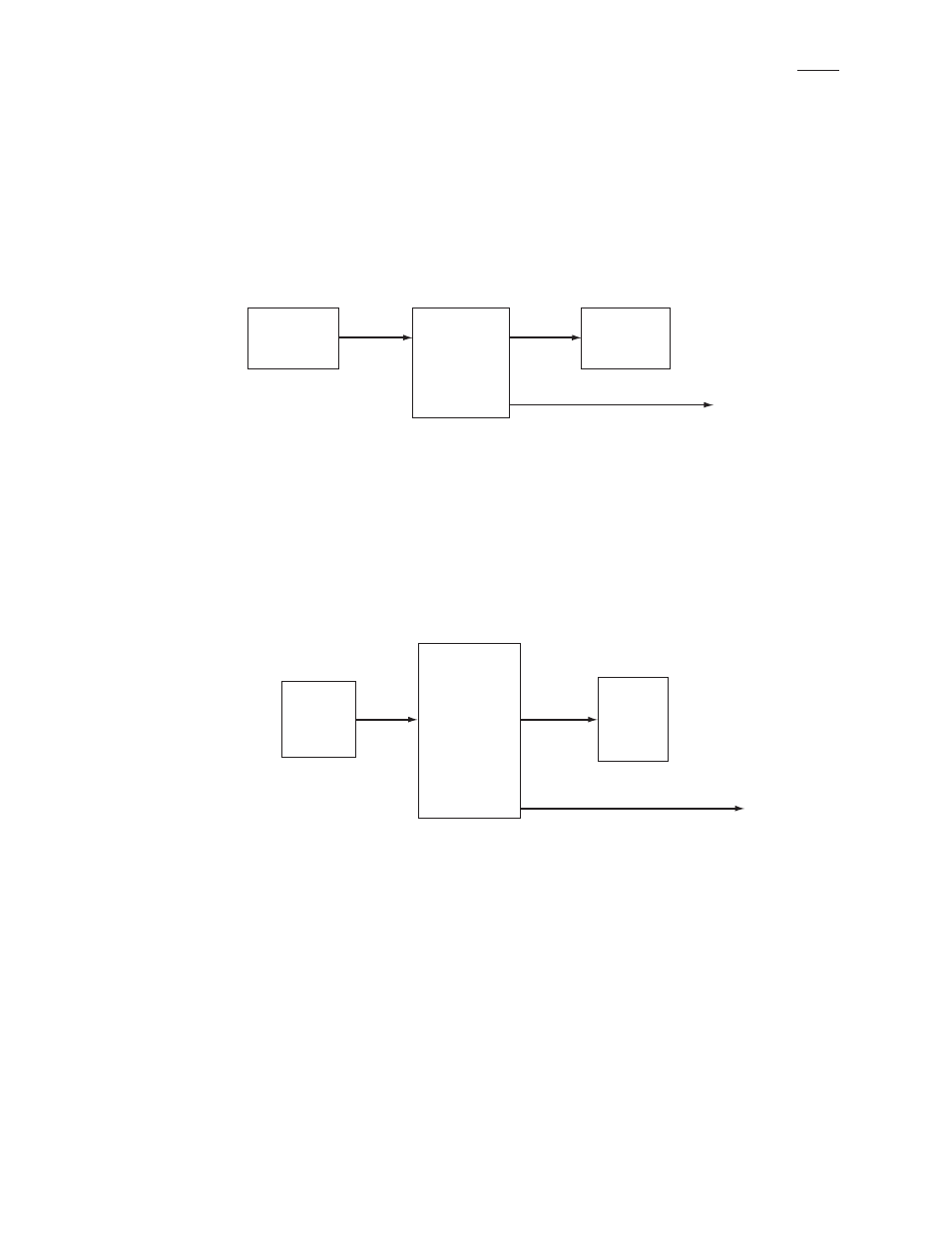

The BrightEye 90-F can perform standard definition aspect ratio conversion to convert the
aspect ratio of the SD input signal to a different aspect ratio. In the example below, the
input from an SD camera with 16:9 lenses can feed an anamorphic signal to the
BrightEye 90-F where the aspect ratio can be corrected for input to an SD switcher that
requires 16:9 Letterbox.
HD Cross Conversion
The BrightEye 90-F can perform cross conversion between two different types of HD
signals. As shown here, the 1080i input from an HD network feed is sent to the BrightEye
90-F where the format is converted to 720p as required for input to an HD router.
SD Camera
SD SDI
BE 90-F
Aspect
Ratio
Conversion
SD
Production
Switcher
SD SDI
Outbound SD SDI Optical Feed
16:9 Lenses Letterbox 16:9
BE 90-F
Cross
Conversion
Network
Feed
HD
Router
1080i 720p
Outbound HD 720p Optical Feed
