Configuration and Monitoring
Local Mode Configuration
The module may be configured using the local on-board rotary switch and
paddle switch in conjunction with the configuration LEDs shown in
Figure 26 . If an 8900NET (Net Card) module is present for providing
remote configuration, refer to Remote Monitoring and Controls on page 39 .
Local/Remote Jumper
The on-board jumper Local/Remote jumper, J10, ( Figure 26 ) is set at the
factory for local and remote (LOC/REM position, pins 2-3) to allow remote
control. It can be changed to lock out remote control if desired (LOC posi-
tion, pins 1-2).

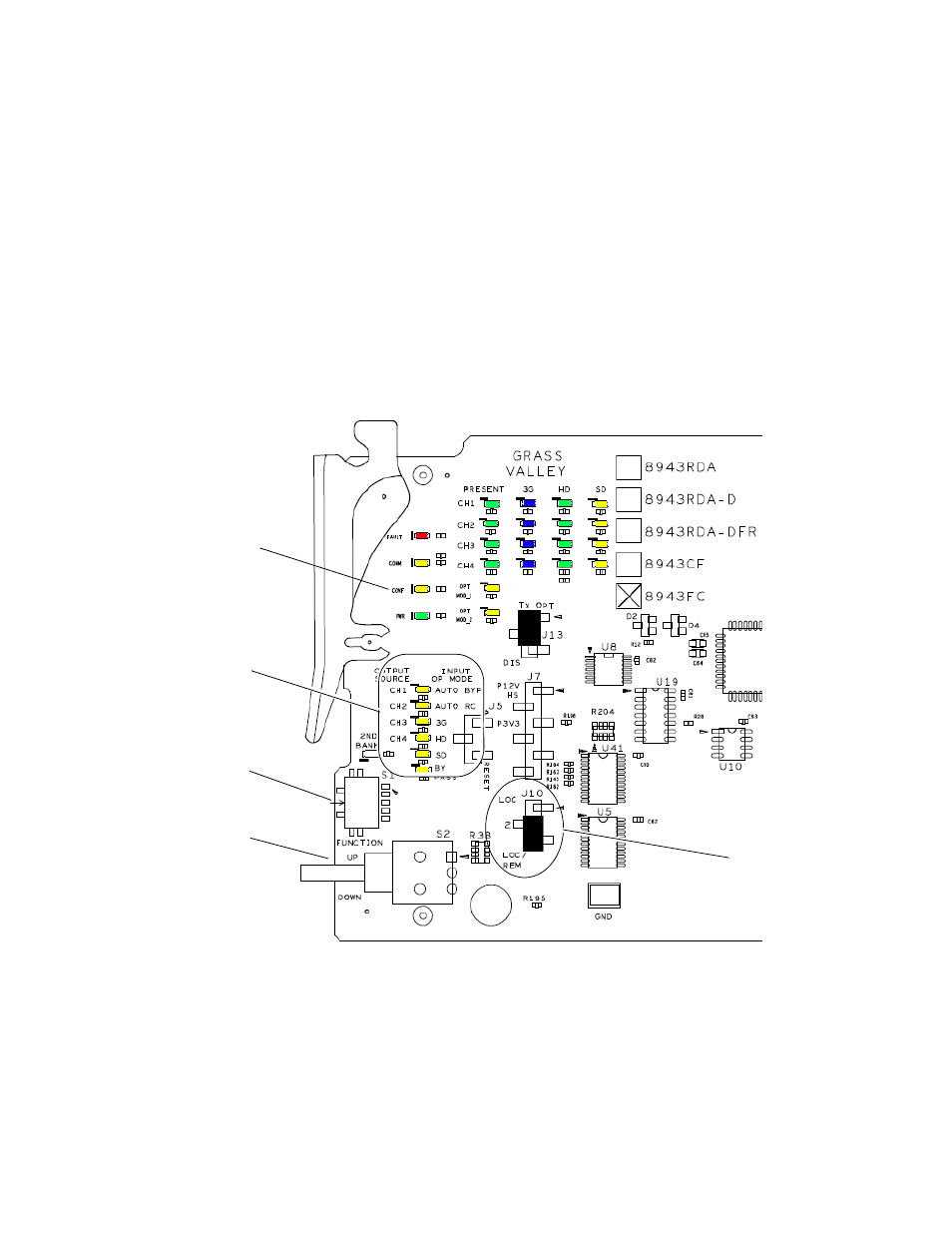

Figure 26. On-board Configuration Switches and LEDs
Rotary Switch, S1
Paddle Switch, S2
Local/Remote Jumper
Input Op Mode
Configuration LEDs
CONF LED
