20

8949MDA-CFR/-SFR—Instruction Manual

Cabling

Video Outputs

The 8949MDA-CFR or 8949MDA-SFR outputs conform to the video stan-
dards listed in the output specifications in

Table 6 on page 39

.

Electrical outputs are always enabled. Fiber optic outputs must be enabled
during configuration using the local onboard controls (

Configuration

Switches S1 and S2 on page 13

) or the Settings web page (

page 30

). Fiber

optic outputs available depend on the presence and type of fiber optic sub-
module installed.

8949MDA-CFR Module Cabling

Refer to

Table 3

and

Figure 6

for 8949MDA-CFR cabling information.

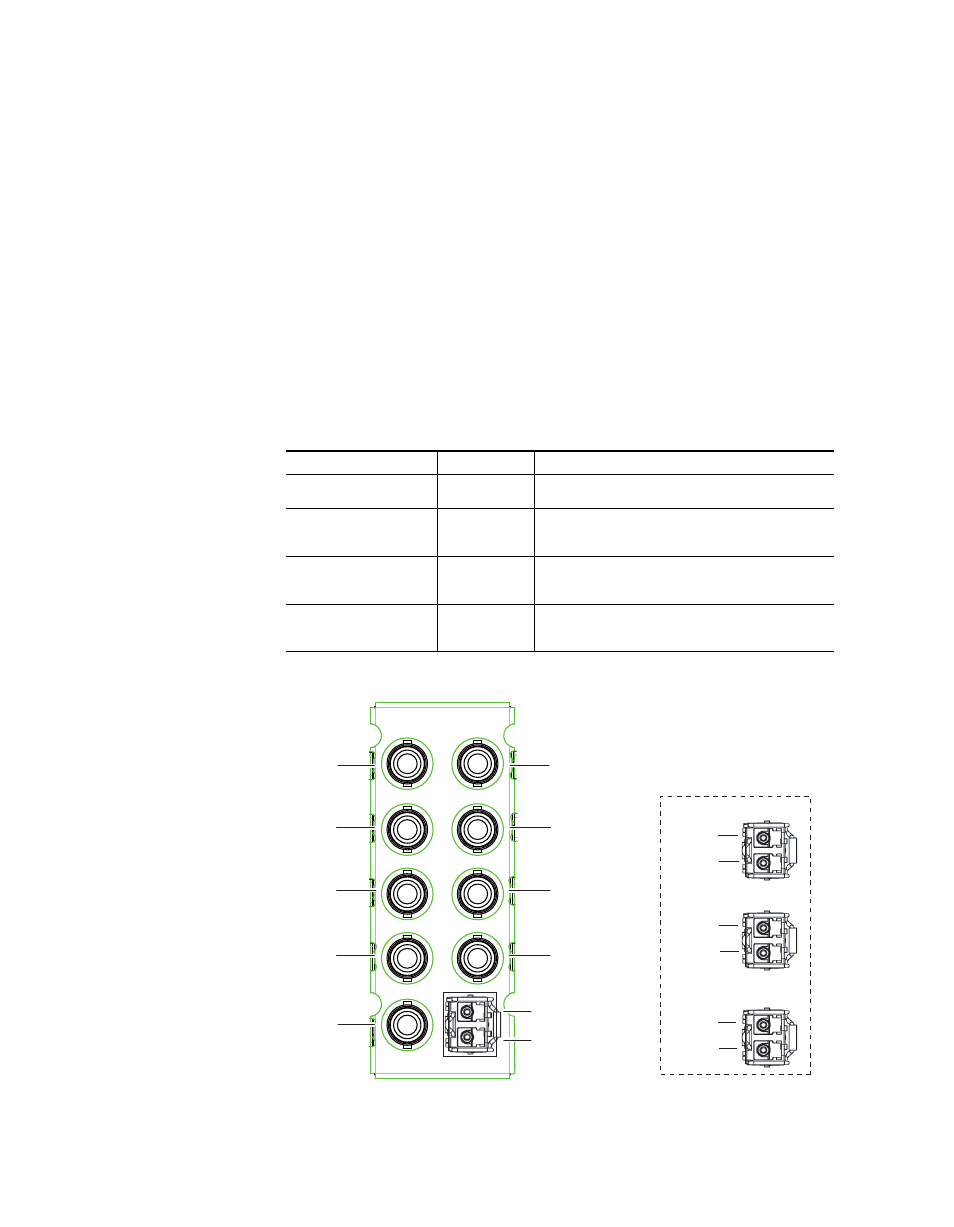

Figure 6. 8949MDA-CFR Cabling

Table 3. Cabling Inputs and Outputs for 8949MDA-CFR Module

Fiber Optic Submodule

SDI Inputs

Outputs

No Fiber optic submodule

J9 BNC

J1, J3, J5, J7: 4 HD-SDI electrical outputs
J2, J4, J6, J8: 4 downscaled PAL or NTSC electrical outputs

1310NM-DRL Dual Receiver

J9 BNC,
Fiber 1,
or Fiber 2

J1, J3, J5, J7: 4 HD-SDI electrical outputs
J2, J4, J6, J8: 4 downscaled PAL or NTSC electrical outputs

1310NM-DTL Dual Transmitter

J9 BNC

J1, J3, J5, J7: 4 HD-SDI electrical outputs
J2, J4, J6, J8: 4 downscaled PAL or NTSC electrical outputs
Fiber 1 and Fiber 2: 2 optical HD outputs

1310NM-TRL Transceiver

J9 BNC
or Fiber 1

J1, J3, J5, J7: 4 HD -SDI electrical outputs
J2, J4, J6, J8: 4 downscaled PAL or NTSC electrical outputs
Fiber 2: 1 optical HD output

8900WFR-R

HD/SD

SDI In

HD/SD

SDI Out

HD/SD

SDI Out

HD/SD

SDI Out

HD/SD

SDI Out

PAL/NTSC
Monitoring Out

PAL/NTSC
Monitoring Out

PAL/NTSC
Monitoring Out

PAL/NTSC
Monitoring Out

Fiber 2 In/Out

Fiber 1 In/Out

8434

_02

Fiber Optic Cabling

Fiber Rx 1

Fiber Tx 2

Fiber Rx 2

1310NM-DRL

Fiber Tx 1

Fiber Rx 1

Fiber Tx 2

1310NM-DTL

1310NM-TRL

J1

J3

J5

J7

J9

Fiber

J8

J6

J4

J2
