Supplement Software Release V3.4.5
DD35 Production Switcher
51
Operating Instructions – Rev. 0 / 7.2002
3.3

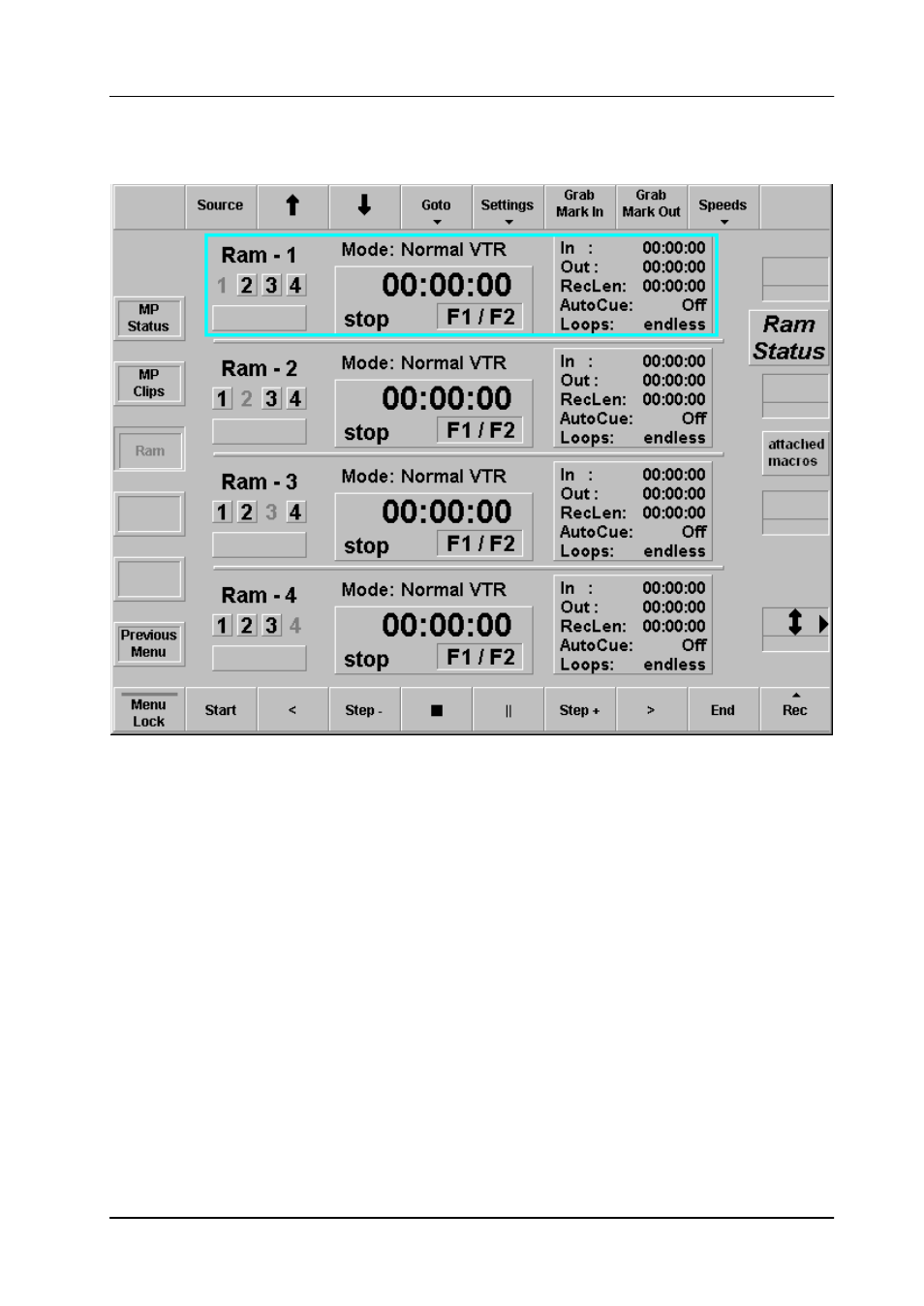

RAM RECORDER MENU
The RAM Recorder Module can be installed on the FX Processor (RY 3460) to pro-
vide 4 channels of uncompressed video store of 8s each for stills and video se-
quences.
Note:
Channel 1 and channel 2 are fed with the same signal.
Channel 3 and channel 4 are fed with the same signal.
Light blue border indicates selected channel
3.3.1
DIALOG BUTTONS
Selecting the Media Player menu.
Selecting the internal Media Player Clip menu.
Return to the previous menu. For details refer to section Introduction.
Buttons top row:
MP Status
MP Clip
Previous Menu
