LDK 5417 + LDK 4417 User’s Guide | Adapter connectors 14
4.7 Intercom headset connector

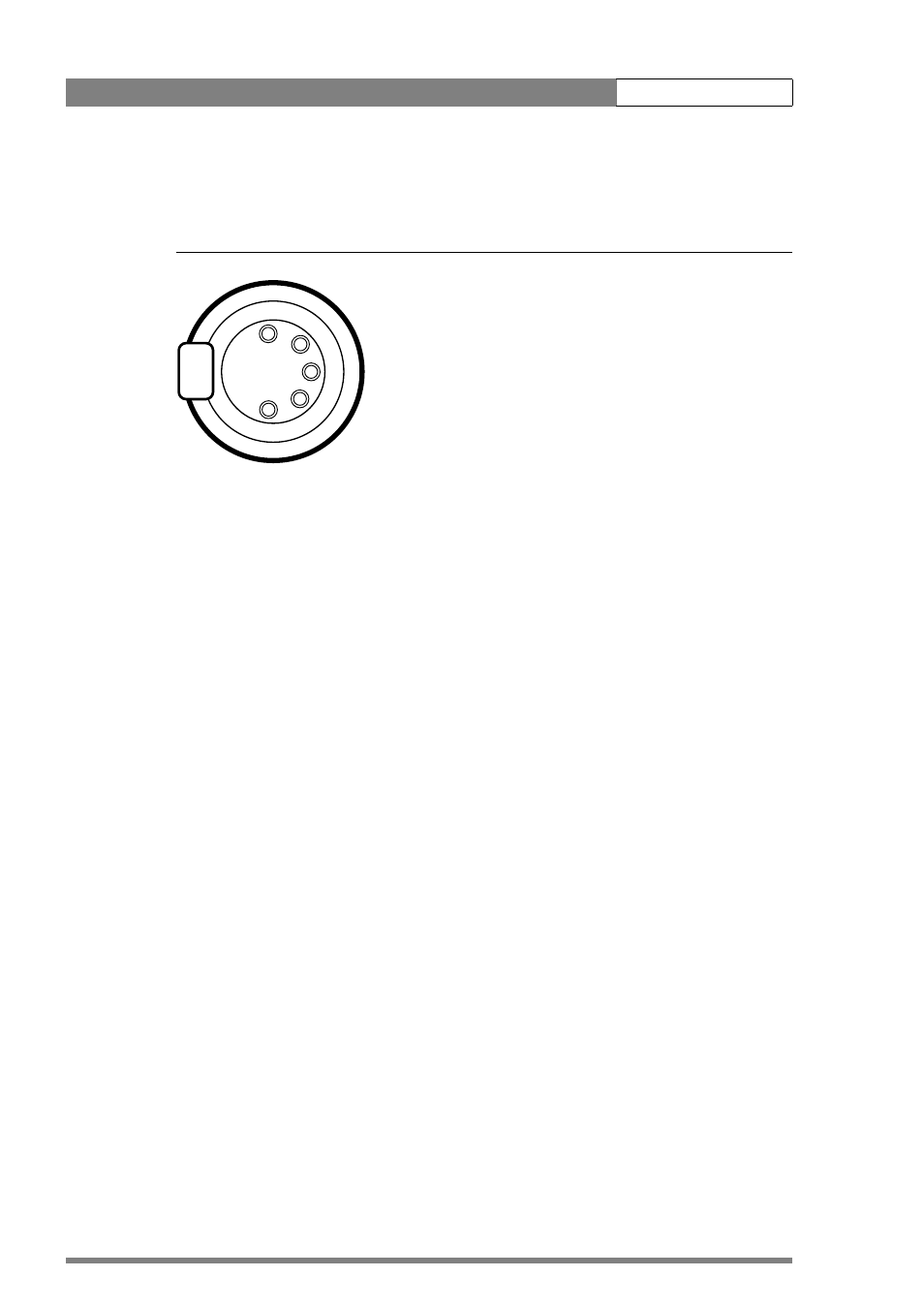

Figure 1-13. XLR intercom headset connector
4
1
2
3
5
1. Microphone return
2. Microphone
3. Telephone return
4. Telephone left
5. Telephone right
Microphone level: -60 dBu / -20 dBu switchable
Microphone impedance: >600 Ohm
Telephone level: +6 dBu nominal
Telephone output impedance: <50 Ohm
XLR 5-pole female; panel view (X104)
