K2 Edge Installation and Service Manual - document version: 4.0.2 – Page 29

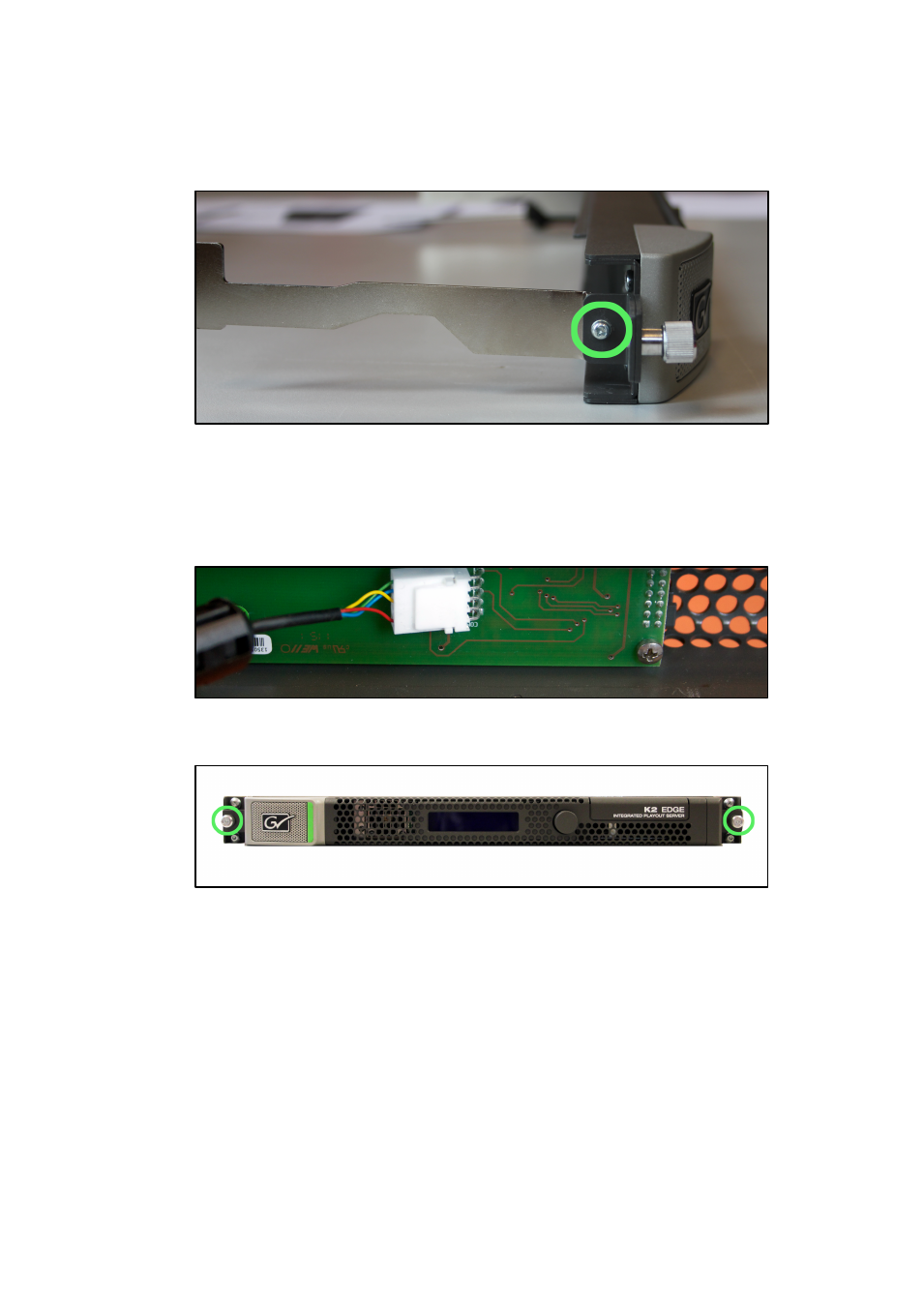

 Remove the bezel from the unit by lifting up the hinges on the side.
 Remove the two hinges from the sides of the bezel by unfastening the screws.
 Fasten the hinges to the new bezel (FRU 761051600) using a torque of 6 to 8 kgfcm (5.2
to 6.9 lbs).
 Insert the front assembly replacement in the K2-Edge unit and reconnect the display
cable.
 Make sure the bezel is flushed and aligned with the frame.
 Fasten the thumb screws.
