136
Technical Details
Drawings
Drawings

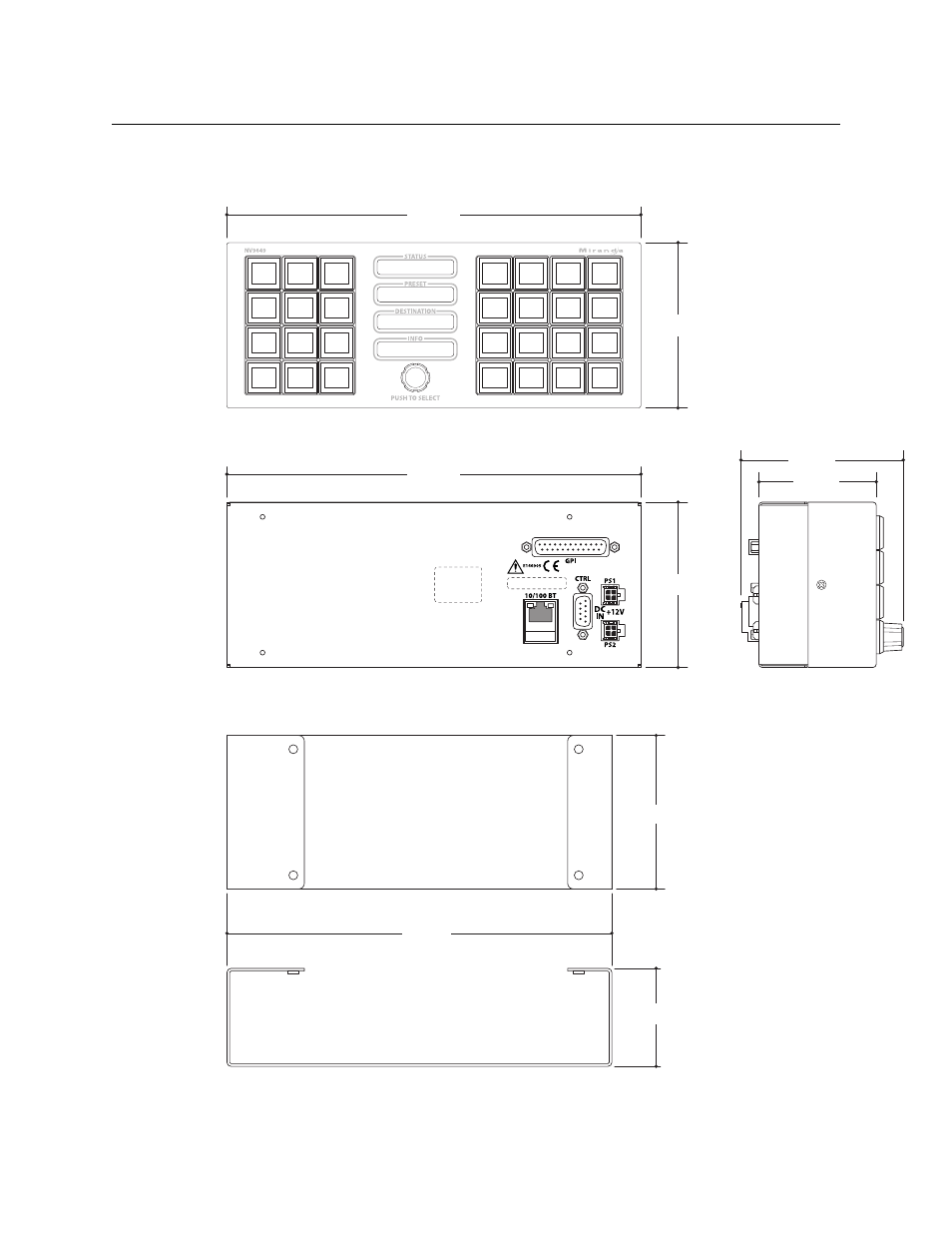

These drawings identify features and provide overall and critical dimensions:
Fig. 7-2: Front View of the NV9649
Fig. 7-3: Rear and Side View of the NV9649
This is the NV9649’s rack mounting filler plate:
Fig. 7-4: NV9649 Rack Mounting Filler Plate
8.7 [221.0]
3.47
[88.1]
8.7 [221.0]
3.47
[88.1]
3.41 [86.6]
2.46 [62.6]
8.7 [221.0]
3.47
[88.1]
2.213
[56.2]
