Advanced course TNC 4xx

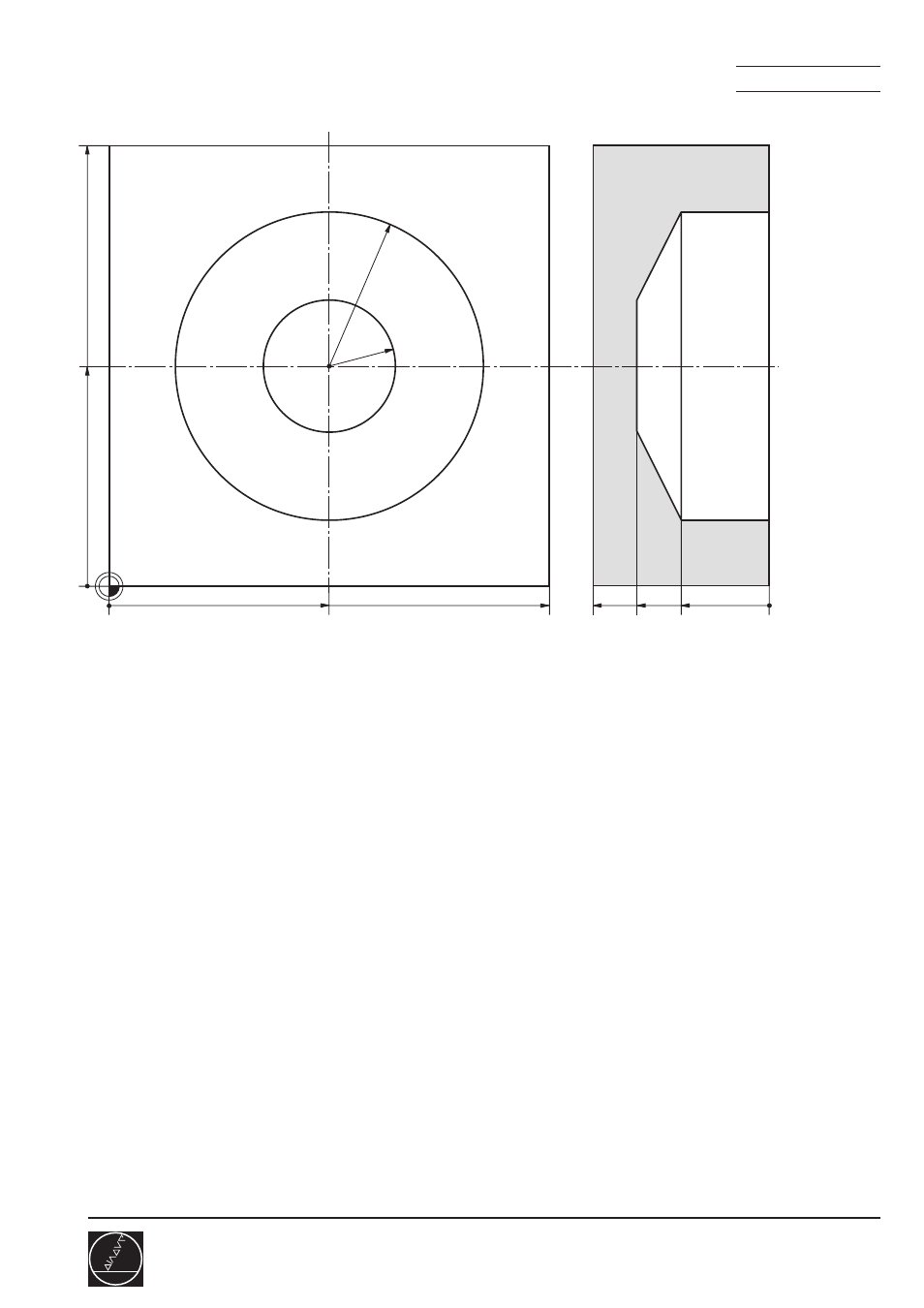

Task: Program(s): Truncated cone, internal, 3D
7283/1
7284/1
C05
7283/1
7284/1
100
20
0
100
0
50
0
50
R35
40 30
R15
Procedure:
Tools:
• 3 D-cut from bottom to top
• Pre-machining with 2 circular pockets
• End mill R6
