Status displays 2.4
2
TNC 620 | User's Manual
HEIDENHAIN Conversational Programming | 3/2014
79

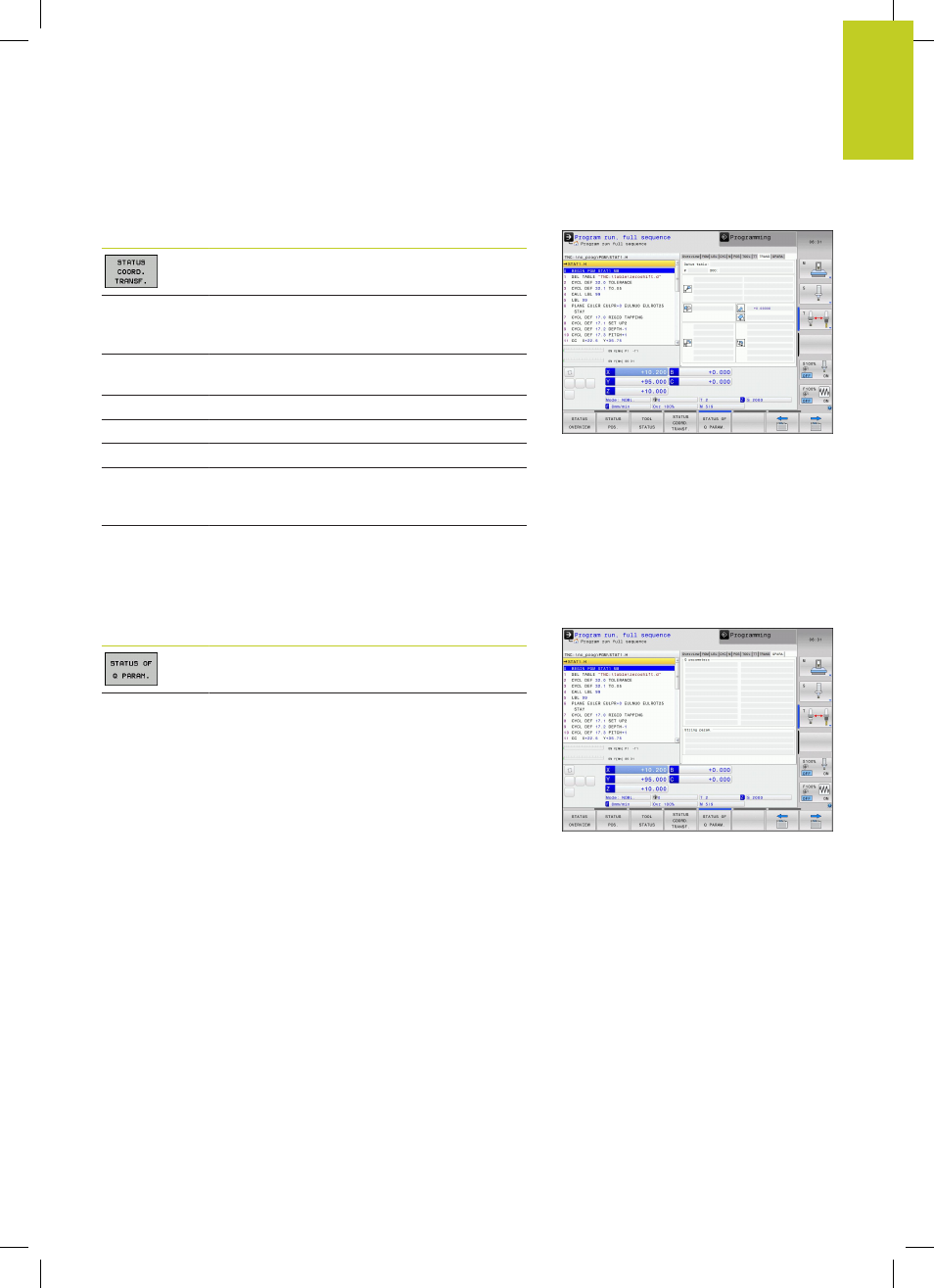

Coordinate transformations (TRANS tab)
Soft key Meaning
Name of the active datum table
Active datum number ( #), comment from the
active line of the active datum number ( DOC)
from Cycle 7
Active datum shift (Cycle 7); The TNC displays
an active datum shift in up to 8 axes
Mirrored axes (Cycle 8)
Active basic rotation
Active rotation angle (Cycle 10)
Active scaling factor/factors (Cycles 11 / 26);
The TNC displays an active scaling factor in up
to 6 axes
Scaling datum
For further information, refer to the User's Manual for Cycles,
"Coordinate Transformation Cycles."
Displaying Q parameters (QPARA tab)
Soft key Meaning
Display the current values of the defined Q
parameters
Display the character strings of the defined
string parameters
