PT1000 (external temperature) sensor
PT1000 figure Wire description
Wire Color Specification
Red VCC(15~24Vdc)
Black GND
Brown Ambient Temperature(0-
10V)

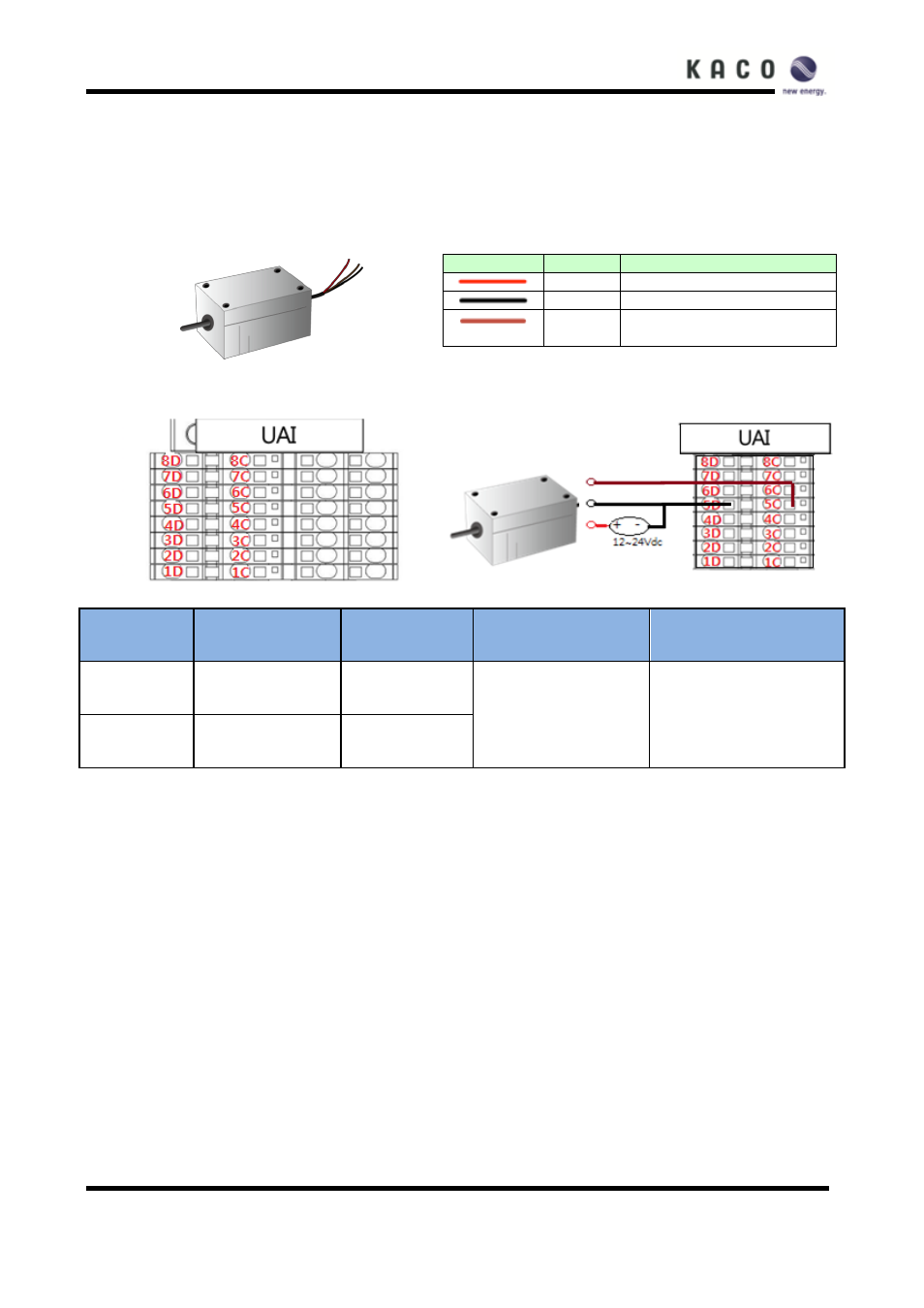

Target port figure Connect the wires
Port num. Port name Wire # Specification Wire size
5C PTP(Brown) C314
0V ~ 10Vdc
18-24 AWG (0.82-
0.20 ㎟)
5D PTN(Black) C315
