Lanner EM-F345 - Manual (Page 16)

EM-F345 Fanless Embedded System User’s Manual
16

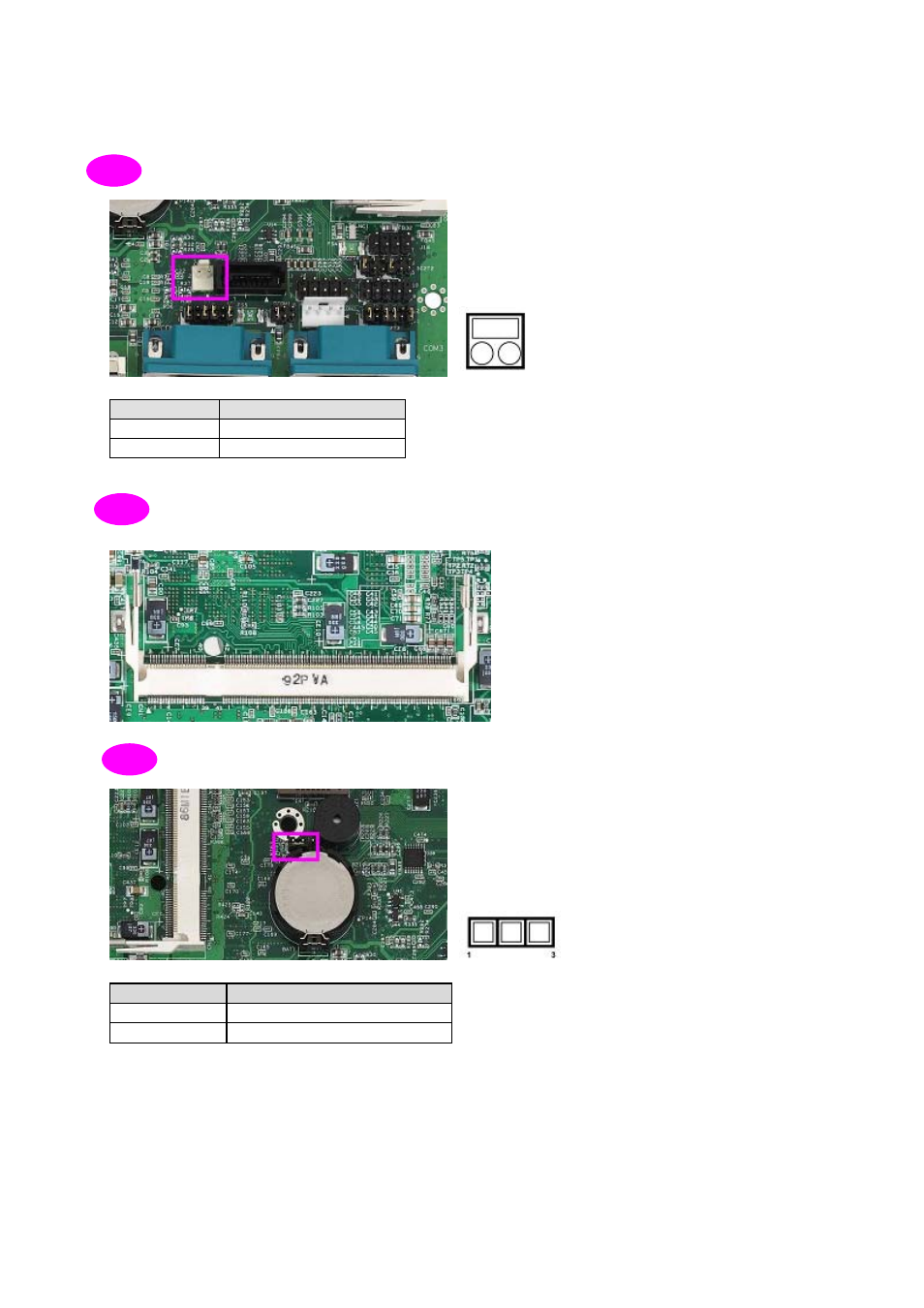

CONN2: System Reset Connector
M5
2 1
PIN NO. DESCRIPTION
1 Reset
2 GND
CN1：200 pin SODIMM Socket M6
J1: Clear CMOS Jumper
M7
PIN NO. DESCRIPTION
1-2 1-2 Normal (Default)
2-3 2-3 Clear CMOS
