EM-F345 Fanless Embedded System User’s Manual

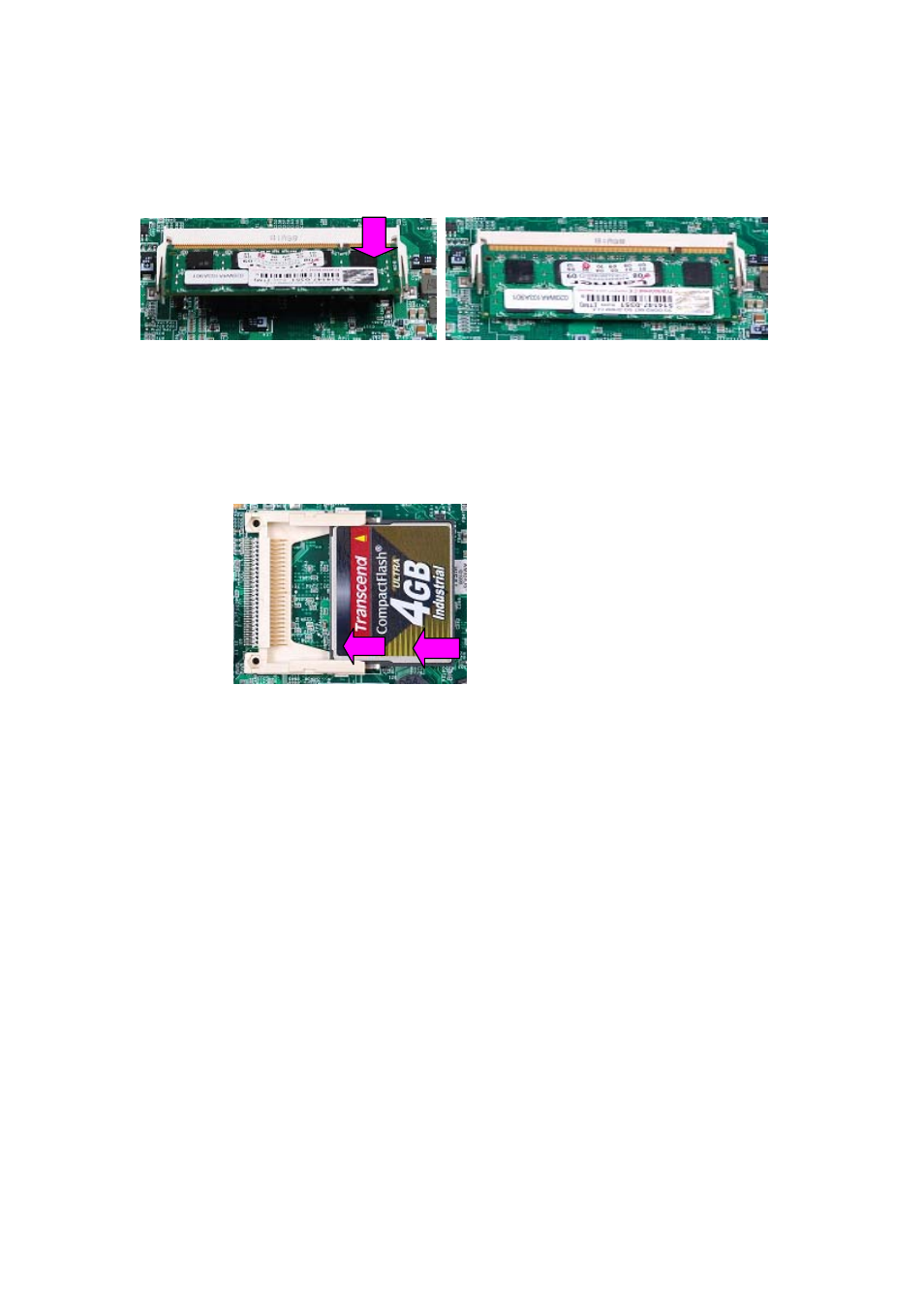

3.1.2 System Memory Installation
Install the memory module into the socket and push it firmly down until it is fully seated.
3.1.3 CompactFlash Card Installation
Carefully insert the CompactFlash card into the slot as shown in the illustration above.
22
