16. INSTALLING THE COOLTOUCH ™
CONTROL SYSTEM WALL PLATE
17. INSTALLING THE TRANSMITTER
1. Insert the transmitter into the wall plate by
inserting the bottom of the transmitter first and
then press the top of the transmitter into the
pocket. The transmitter will fully function from
this location or you can remove the transmitter
and use as a "Hand Held" device. (Fig. 28)
2. To remove the transmitter from the wall
plate, push the release button and the
transmitter will fall into your hand.
Select a location to install your CoolTouch™
Control System Transmitter. You can replace
an existing wall switch, or install the transmitter
on ANY flat surface.
Option 1: Install the control system using an
existing wall switch outlet box.
Make sure the electrical power is TURNED
OFF at the main panel before continuing.
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut
the BLACK leads (hot) together and push back
inside the outlet box. (Fig. 26)
Step 2. Install the metal plate and CoolTouch™
wall plate to the existing wall outlet box with 4
screws provided. Then place the two plastic
plugs into the wall plate. (Fig. 27)
Option 2: Install the control system on ANY
flat surface.
Select the desired location and use the
CootTouch™ wall plate to mark the location for
the mounting holes.
Plastic wall anchors and screws are provided
for this type of installation.
After installing the wall anchors, attached the
CoolTouch™ wall plate with the mounting
screws and then insert the plastic plugs to
finish the installation.

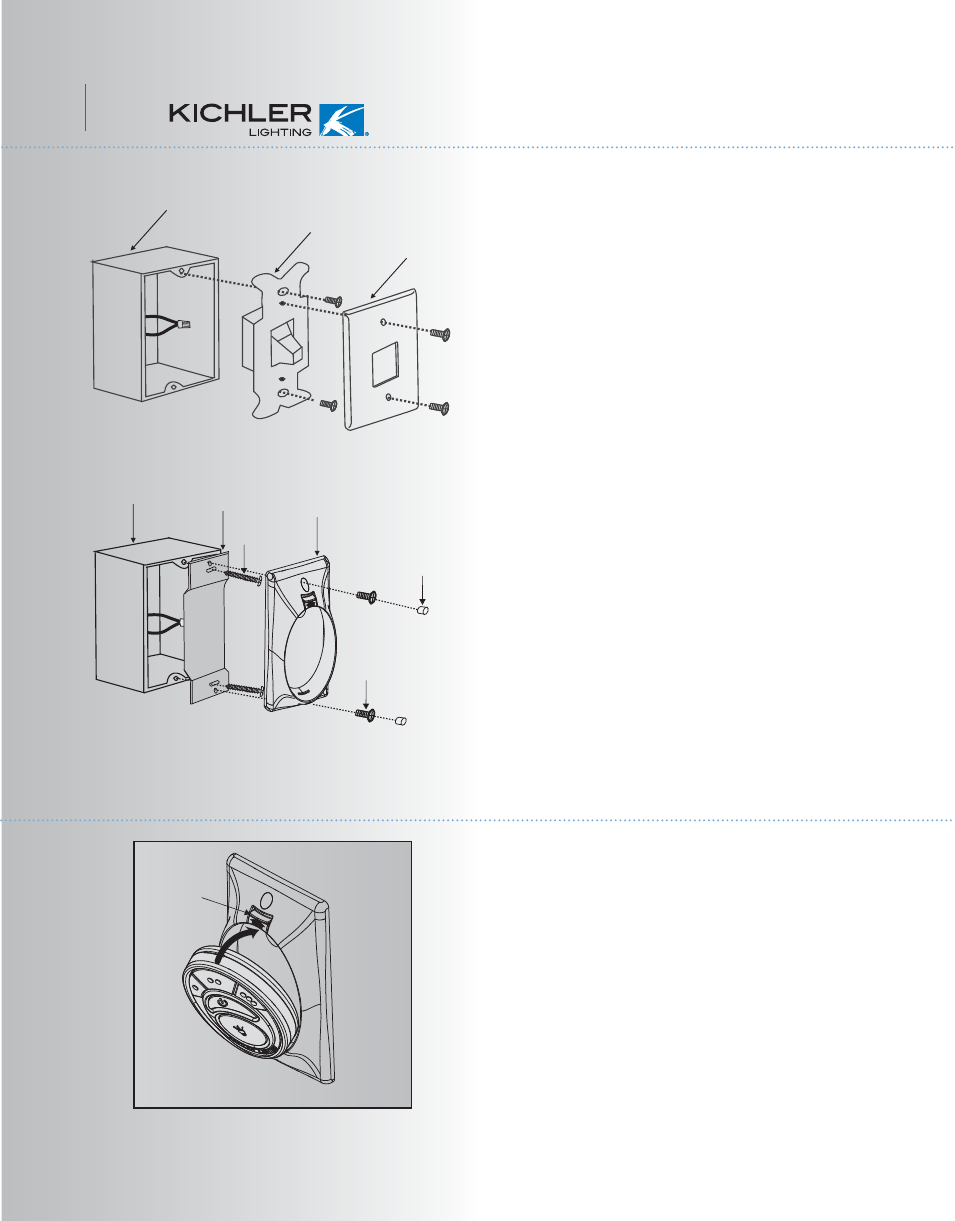

Fig. 26
Fig. 27
Wall plate
Switch
Outlet box
Screws
Screws
Plastic plugs
CoolTouch ™ wall plate
Outlet box
Metal plate
Release
button
Fig. 28
