48

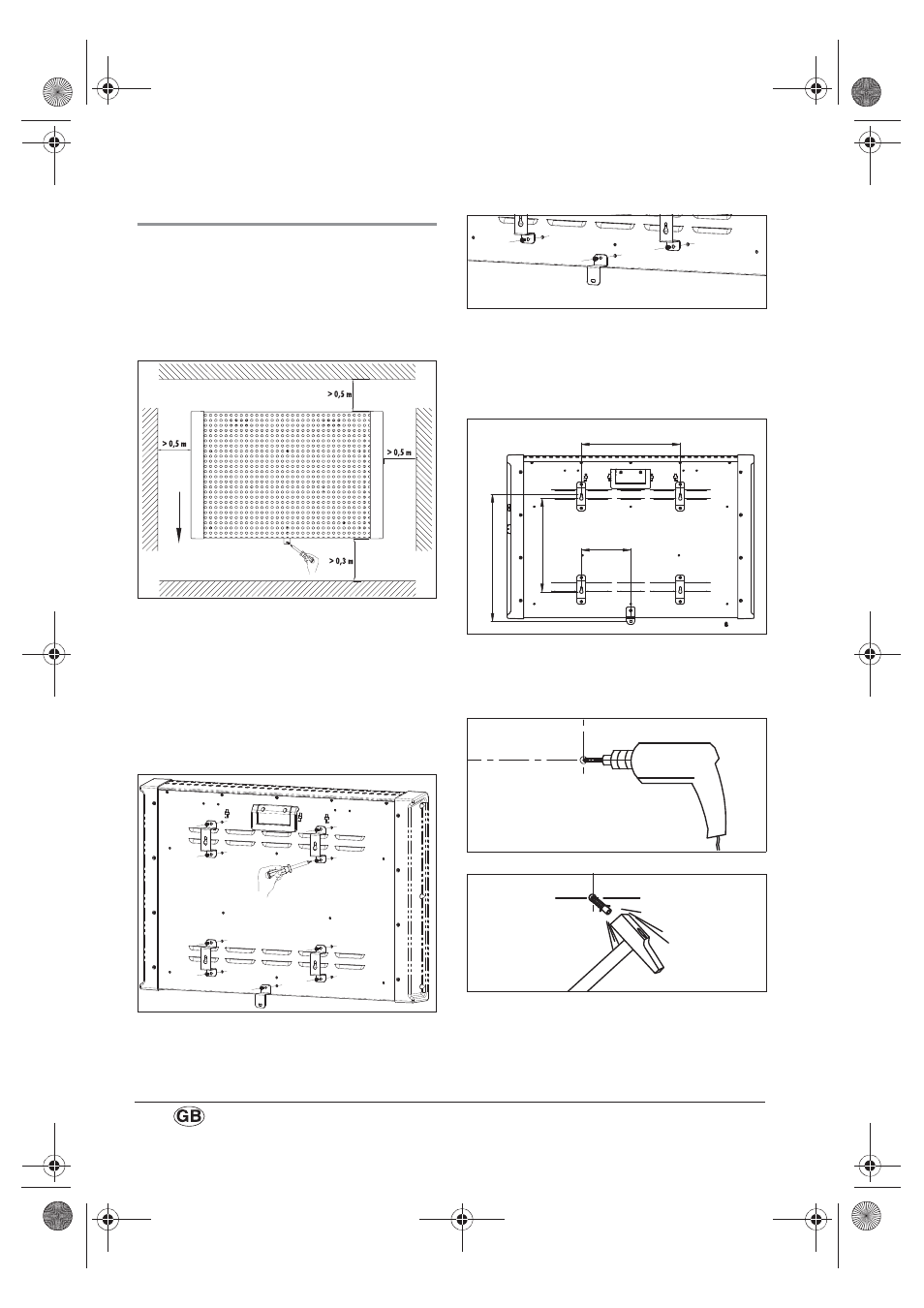

5.2 Mounting the appliance on a wall
Caution!
• The wall must not be flammable and
should also be strong enough to bear
the weight of the appliance.
• Keep to the minimum dimensions
according to the diagram below.
• A suitable plug socket must be near
enough for the mains cable to reach the
socket.
Note: The feet may not be screwed on if
the appliance is to be mounted on a wall.
1. Screw the 4 wall brackets 10 onto the
rear side of the appliance using short
screws.
2. Screw the fastening bracket 9 securely.
3. Screw 4 of the long screws supplied
securely to a wall suitable for this
purpose:
– Mark the drill holes according to the
diagram.
– Make sure that the lower and upper
drill holes are precisely horizontal.
– Using a 8 mm bit, drill a hole to fit the
wall plug.
– Insert a wall plug into each hole.
300
150
283
386
