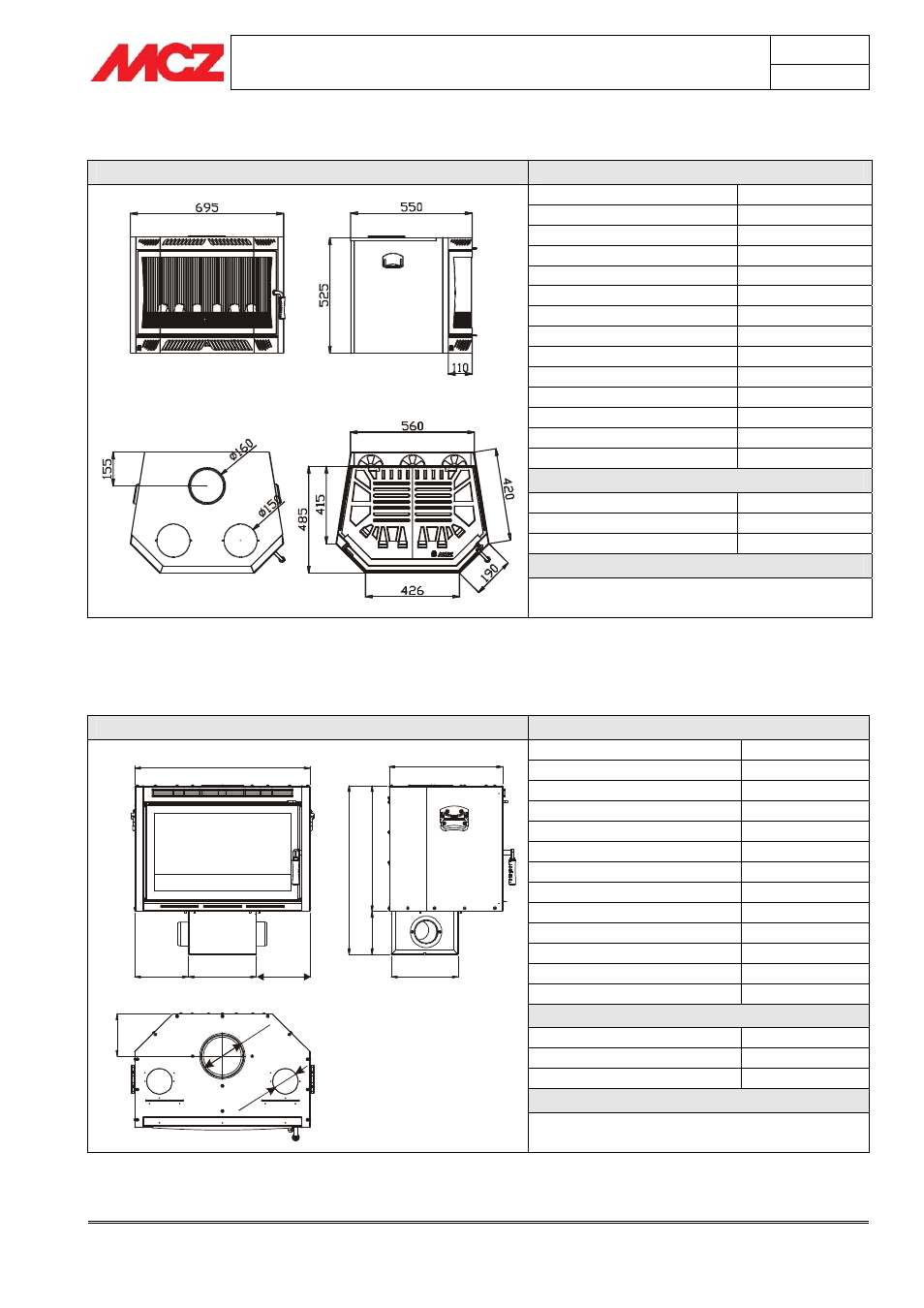

Technical features and technical specifications
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited
Climasystem E70
Technical specifications
Fuel type
Wood - Chips
Hourly consumption
2.9 kg/h – 2 kg/h
Maximum thermal power
kW 8.5 Kcal 7310
Minimum thermal power
-
Efficiency 67%
Heatable volume *
140/40-160/35-186/30
Minimum draught
12 Pa / 0.12 mbar
Smoke temperature
340°C
Smoke outlet
Ø 16 cm
Firebox dimensions
560x485
Net weight
145 Kg
External combustion air outlet
cm² 150
CO2 emission in smoke (13 %O2)
0,19%
Mass throughput of smoke
11.8 g/s
Chimney flue
Up to 5 mt
20x30 cm Ø22
Between 5 and 7 mt.
20x20 cm Ø20
Over 7 mt
18x18 cm Ø18
Note
The insert is an intermittent combustion device
* Data may vary according to the fuel used
3.3. SUPERCLIMA
Superclima F70
Technical specifications
Fuel type
Wood - Chips
Hourly consumption
3.1 kg/h – 2.1 kg/h
Nominal thermal power
kW 9 Kcal 7740
Efficiency 66,5%
Heatable volume*
194/40-221/35-258/30
Minimum draught
12 Pa / 0.12 mbar
Smoke temperature
350°C
Smoke outlet
Ø 16 cm
Firebox dimensions
59x35 H31.5 cm
Net weight
140 Kg
External combustion air outlet
cm² 150
CO emission in smoke (13 %O
2
) 0,12%
Mass throughput of smoke
13.6 g/s
Chimney flue
Up to 5 mt
20x30 cm Ø22
Between 5 and 7 mt.
20x20 cm Ø20
Over 7 mt
18x18 cm Ø18
Note
212,5
212,5
270
695
450
265
17
0
49
8
66
8
16
7,
5
Ш1
60
Ш1
00
The appliance is an intermittent combustion device.
* Data may vary according to the fuel used
