FIG. 1
FIG. 2
5
ASSEMBLY INSTRUCTIONS:
1. Find a clean, level place to begin the assembly of your Air Hockey table. The table will be assembled
upside down and then turned over on its legs once the assembly completed. This game table is heavy, and
turning it over will require at least two strong adults.
2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts
identifier below. Carefully cut or tear the four corners of the box so that the bottom of the box can be used
as your work surface.

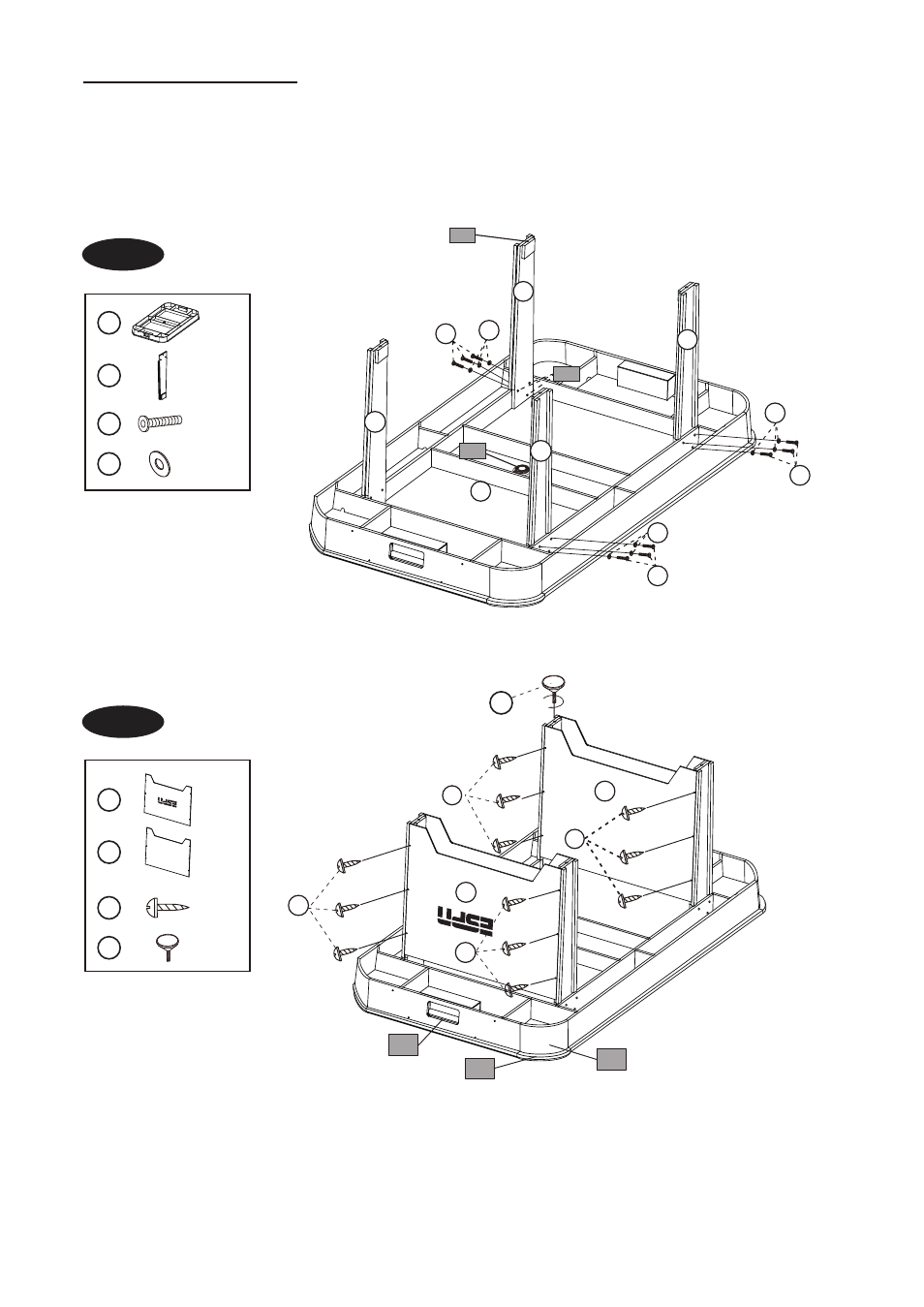

3. Attach the Leg (#3) to the Main Cabinet (#1) using three Bolts (#6) and three Washers (#7) per Leg. See
FIG. 1.
FIG.1
4. Attach the Leg Panel (#4 & #5) to the Leg using six Screws (#8) per Leg Panel. See FIG. 2.
5. Screw the Leg Leveler (#2) into the Leg. See FIG. 2.
6. Lift the table assembly from the floor with at least two strong adults, turn it over, and set the table assembly
on its legs in the location where you play.
FIG.2
X 4
X 12
X 1 1
3
6
7 X 12
X 2
X 24
X 4
X 2 4
5
8
2
1
6
6
7
7
6
7
3
3
3
3
A4
A6
A1
2
8
8
8
4
5
8
A2
A8
A9
