INSTRUCCIONES DE ENSAMBLAJE
ASSEMBLY INSTRUCTIONS:
1.
2.

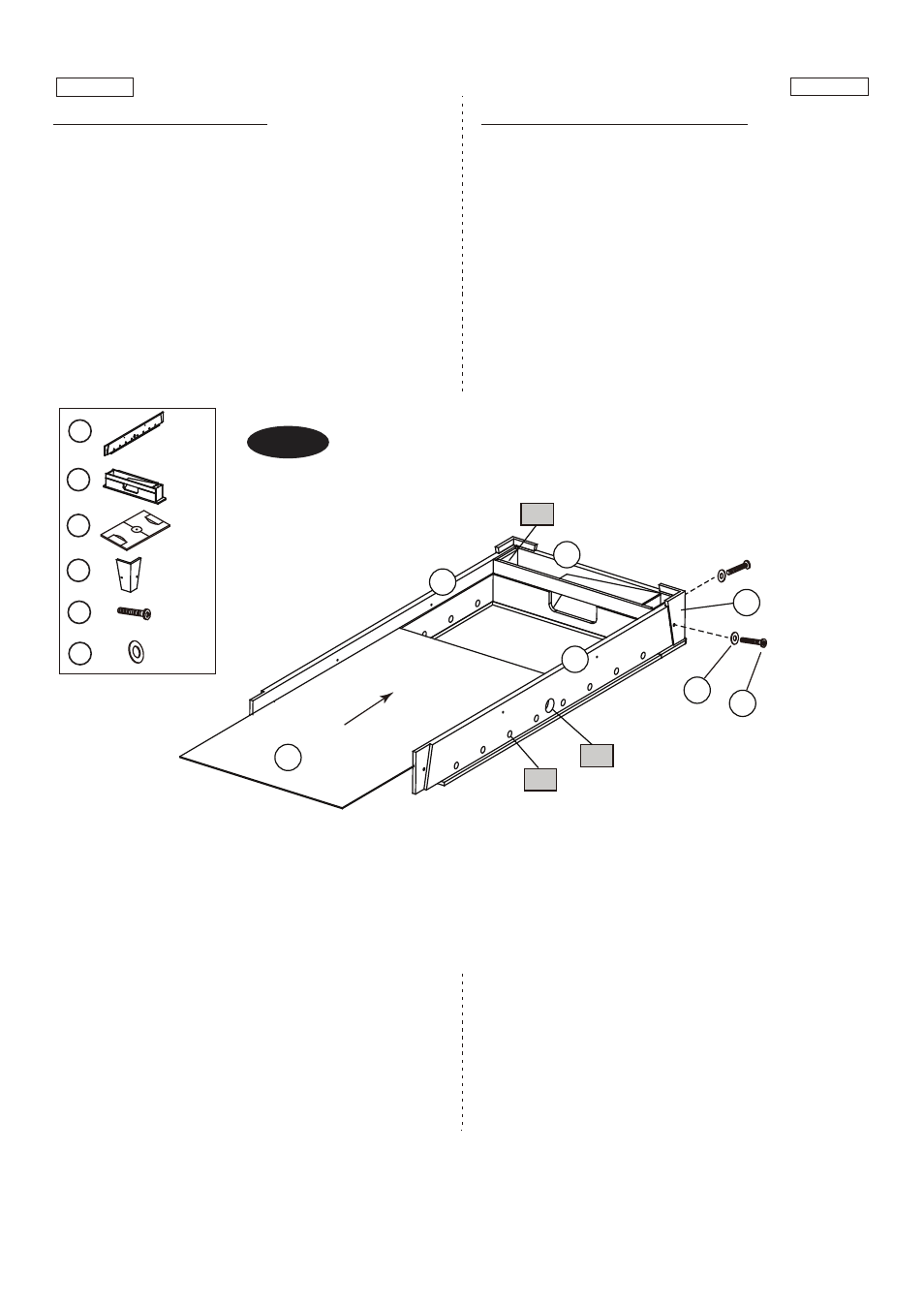

FIG. 1
1.
2.
Find a clean, level place to begin the assembly of
your Combo Table. The table will be assembled
upside down and then turned over on its legs
once the assembly completed. This game table is
heavy, and turning it over will require at least two
strong adults.
Remove all the parts from the box and verify that
you have all of the listed parts as shown on the
parts list page. Carefully cut or tear the four corners
of the box so that the bottom of the box can be
used as your work surface.
Encuentre un lugar limpio, plano para comenzar el
montaje de su Mesa Combo. La mesa será montada
al revés y luego voltee sobre sus piernas una vez
completado el montaje. Esta mesa de juego es
pesada y requerirá por lo menos dos adultos fuertes
para el volteo.
Quite todas las partes de la caja y verifique que
usted tiene todas las partes catalogadas como
mostrado a la lista de partes debajo. Con cuidado
de cortar o rasgar las cuatro rincones de la caja de
modo que el fondo de la caja pueda ser usado como
su superficie de trabajo.
FIG.1
FIG.1
3.
4.
3.
4.
Adjunte 2 Delantales de Rincón (#5) a los Delantales
Lateral (#1) y Delantales Final (#2) usando 2 Cerrojos
(#A2) y 2 Arandelas (#A3) por Delantal de Rincón.
Nota: No apriete los Cerrojos todavía.
Deslice el Campo del Juego (#3)(dibujo en revés) a
las muescas de Delantales Lateral y Final (#1 & #2)
Attach two Apron Corners (#5) to the Side Aprons
(#1) and End Aprons (#2) using two Bolts (#A2)
and two Washers (#A3) per Apron Corner.
Note: Do not tighten the Bolts at this time.
Slide the Playfield (#3) (drawing upside-down) into
the grooves of the Side and End Aprons (#1 & #2).
X 1
X 1
X 2
X 2
1
2
3
5
X 4
A2
X 4
A3
1
1
2
5
A2
A3
3
P1
P2
P5
