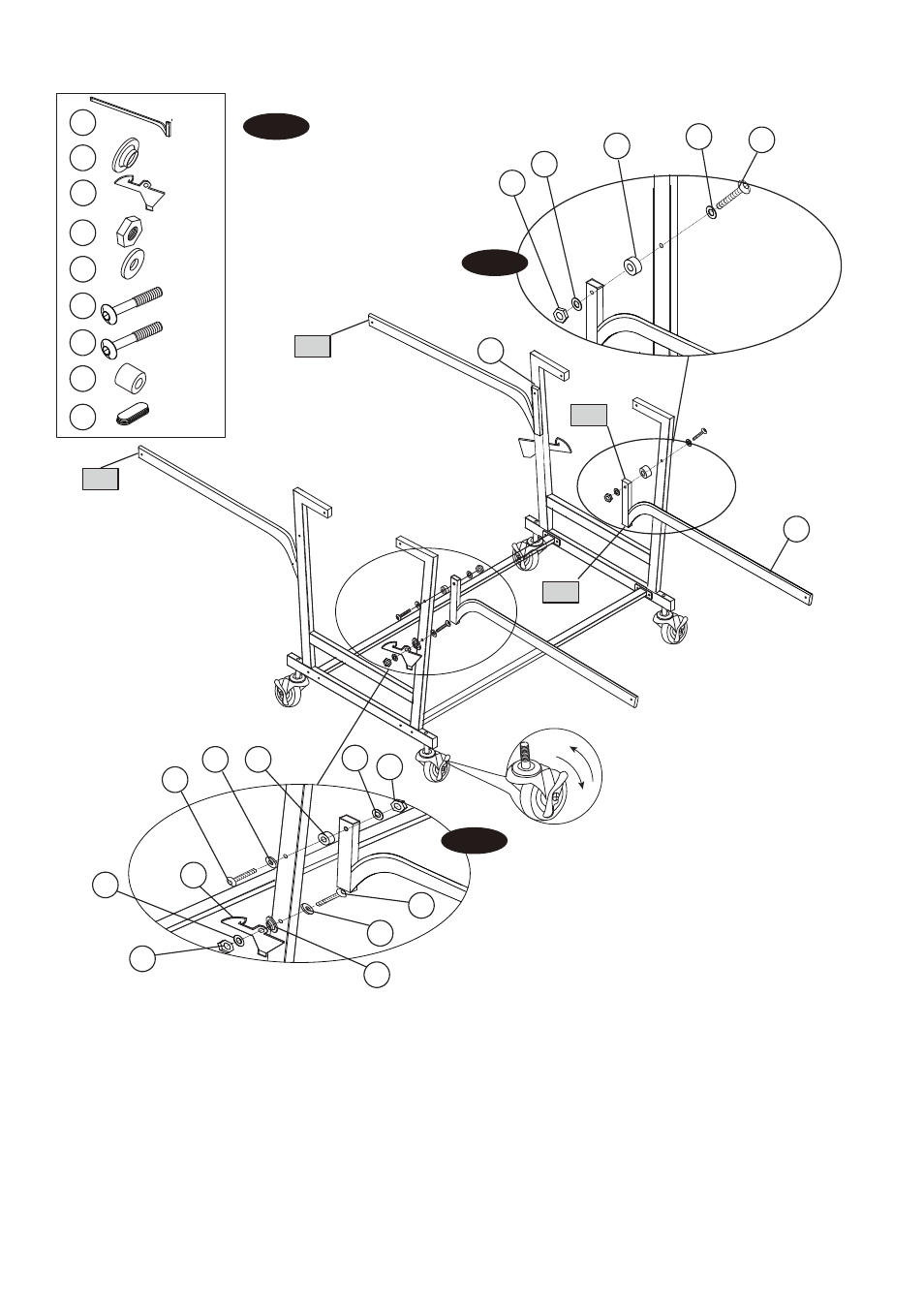

FIG.5
15. Attach one Linkage Tube - 7 (#7) to the Caster Frame (#4) using one Bolt (#A5), two Washers (#A4), one Spacer
(#A8) and one Nut (#A3) per Linkage Tube - 7. See FIG. 5A.
16. Attach one Lingabe Tube - 7 (#7) and one Gravity Lock (#13) to the Caster Frame (#4) using one Bolt (#A7),
two Washer (#A4), one “T” Washer (#12), one Spacer (#A8) and one Nut (#A3) per Gravity Lock. See FIG. 5B.
Note: Please make sure the casters are locked.
7 X 4
X 4
A8
X 12
P3
X 6
A3
A4
X 12
X 2
12
X 4
A5
X 2
A7
13 X 2
FIG. 5
A8
A8
A3
A3
A3
7
A4
A4
A4
A4
A4
A4
12
A5
A5
A7
13
Lock
Open
4
FIG. 5A
FIG. 5B
P3
P3
P3
P3
www.themdsports.com BL44123-14
9
(Continued on the next page.)
