Configuration area
The configuration area groups together the main UPS operating parameters and displays its current status.
The parameters contained in this area can be changed directly from the display panel.
SETTABLE PARAMETERS:
 Frequency: Output voltage frequency
 Voltage: Output voltage
 Mode: UPS operating mode

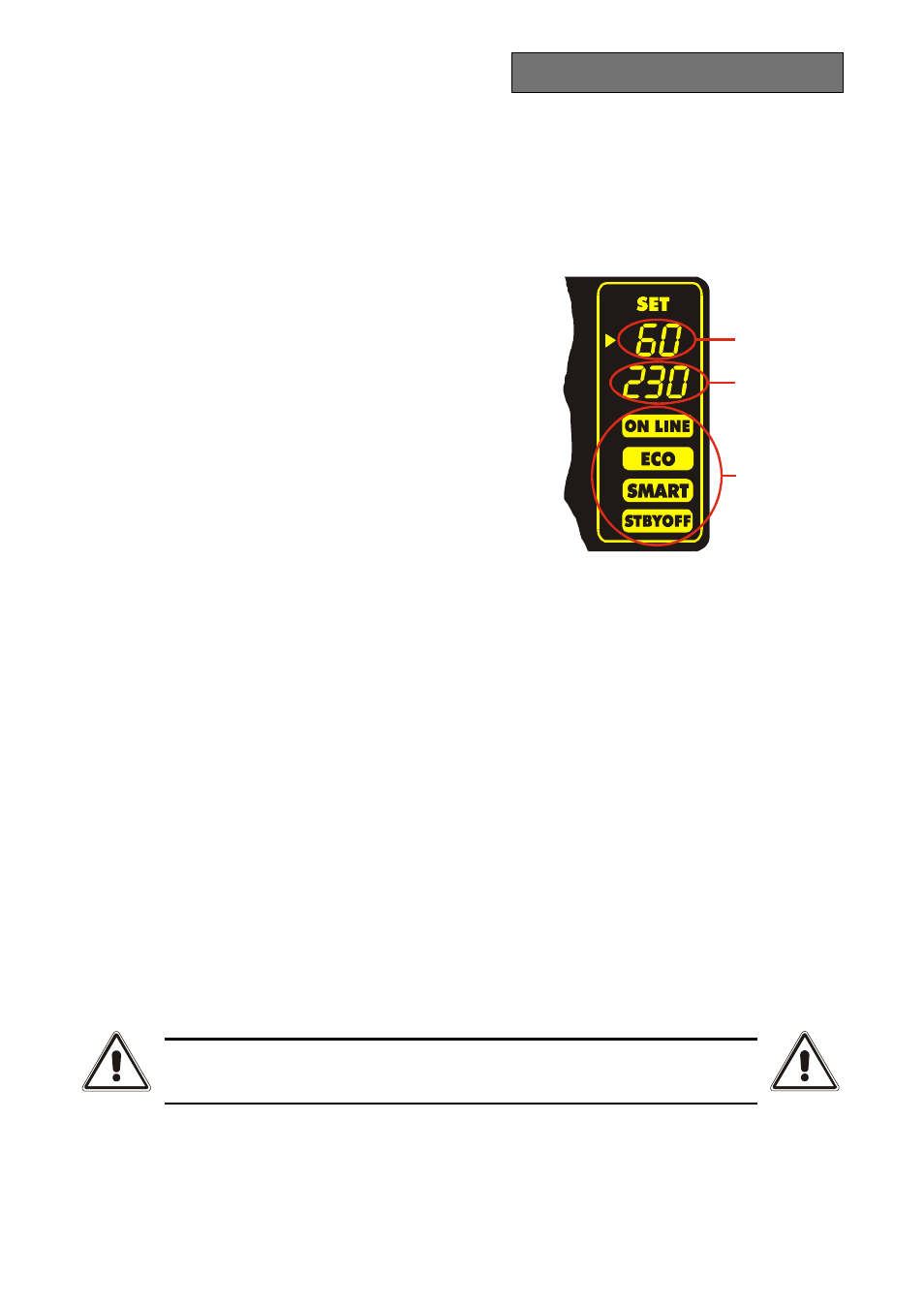

The image at the side shows the display zone for the settings
(configuration area) showing the three settable parameters.
How to change the settings:
 To access the configuration area, hold the “SEL/SET” button down for at least 2 sec.
 The word “SET” will light up and an arrow ( ► ) will appear to the left of Frequency.
 The arrow shows the selected setting. To select a different parameter press the “SEL/SET” button.
 To change the selected item, press the “ON” button.
 To exit from the configuration area, hold the “SEL/SET” button down for at least 2 sec.
POSSIBLE SETTINGS
Frequency: □ 50 Hz □ 60 Hz □ Off (frequency auto-sensing)
Voltage:
□ 220 V □ 230 V □ 240 V
Mode:
□ ON LINE □ ECO □ SMART □ STBYOFF
NOTE: Changes in the output frequency configuration will only become effective when the UPS has been
completely shut down and restarted (via the general switch).
THE OUTPUT FREQUENCY AND VOLTAGE PARAMETERS MUST BE
COMPATIBLE WITH THE PARAMETERS OF THE LOAD POWERED BY
THE UPS
Frequency
Voltage
Mode
