requires a daisy chain configuration only; other configurations (e.g., star) are not supported by
Kepco.

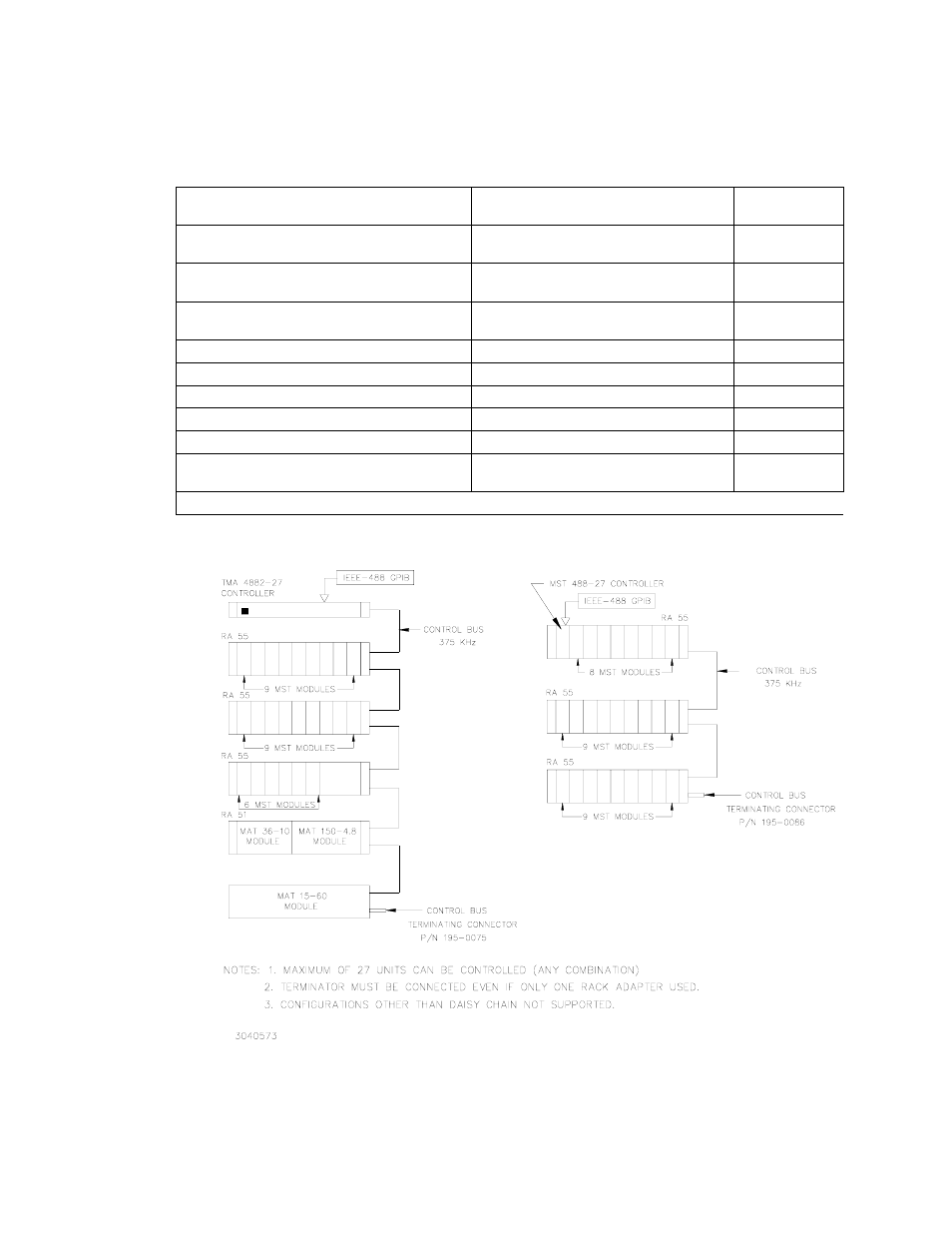

FIGURE 3. CONTROLLER TO POWER MODULE INTERFACE
TABLE 1. ACCESSORIES
ITEM PART NO.
QUANTITY
SUPPLIED
Connector Shell ** Kepco - 142-0372
(Positronic Industries - PLB06M0050)
9
Contact, 12 Gauge ** Kepco - 107-0327
(Positronic Industries - MS112N)
60
Cable (BIT bus, 2 meters long, with two 9-pin DSUB
connectors) Kepco - 118-0844
1
Terminator, IEEE1118 Control Bus Kepco - 195-0086 (Not supplied)
Chassis Slide Kepco 108-0249 (Jonathan 110-QD-18-2) (Not supplied)
Filler Panel - 1 slot Kepco - RFP 55-1 (Not supplied)
Filler Panel - 4 slots Kepco - RFP 55-4 (Not supplied)
Cover (AC input, J10, J11) Kepco - 128-1854 (Not supplied)
North American Linecord Set (115 V a-c, 15A max,
NEMA 5-15P plug, 6 feet long) Kepco - 118-0506 (Not supplied)
** Contacts to be assembled into connector shell per Figure 6; six extra contacts are provided.
