SG-500 VPN Security Gateway User’s Manual
- 140 -
The A Company‘s default gateway is the LAN IP 192.168.10.1 in the SG-500. Add the
following settings：

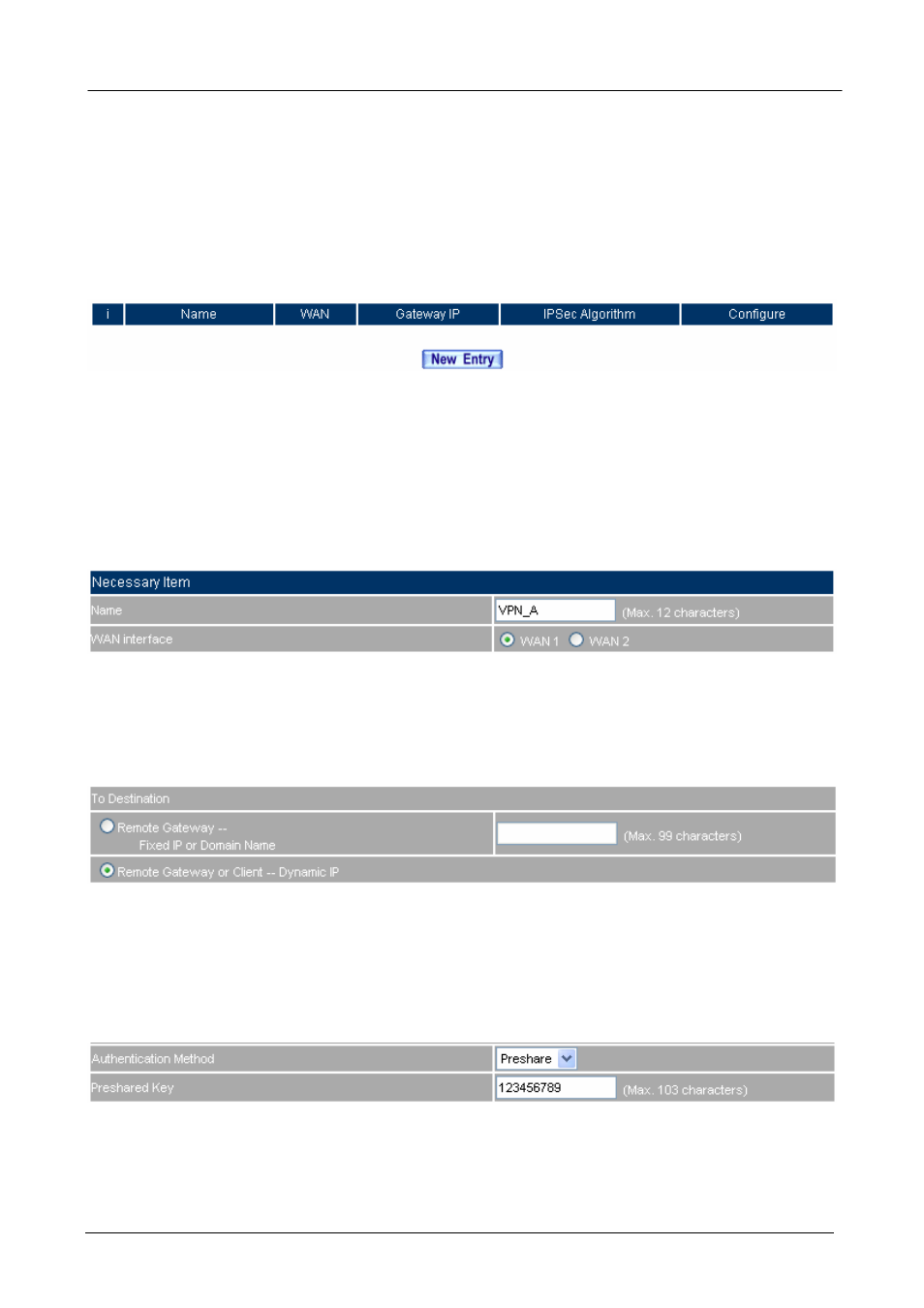

STEP 1 . Enter the A Company’s SG-500 default IP 192.168.10.1. Click VPN Æ IPSec Autokey Æ New
Entry.
IPSec Autokey
STEP 2 . In IPSec Autokey, enter VPN_A in Name. In WAN interface, select WAN 1, in order to build up the
A Company’s VPN connection.
The IPSec VPN name and WAN interface setting
STEP 3 . In To Destination, select Remote Gateway or Client—Dynamic IP
The IPSec To Destination setting
STEP 4 . In Authentication Method, select Preshare, enter the Preshared Key. (The maximum Preshared
Key is 100 bytes)
The IPSec Authentication Method setting
