PLANET NAS-7400 User Manual
95

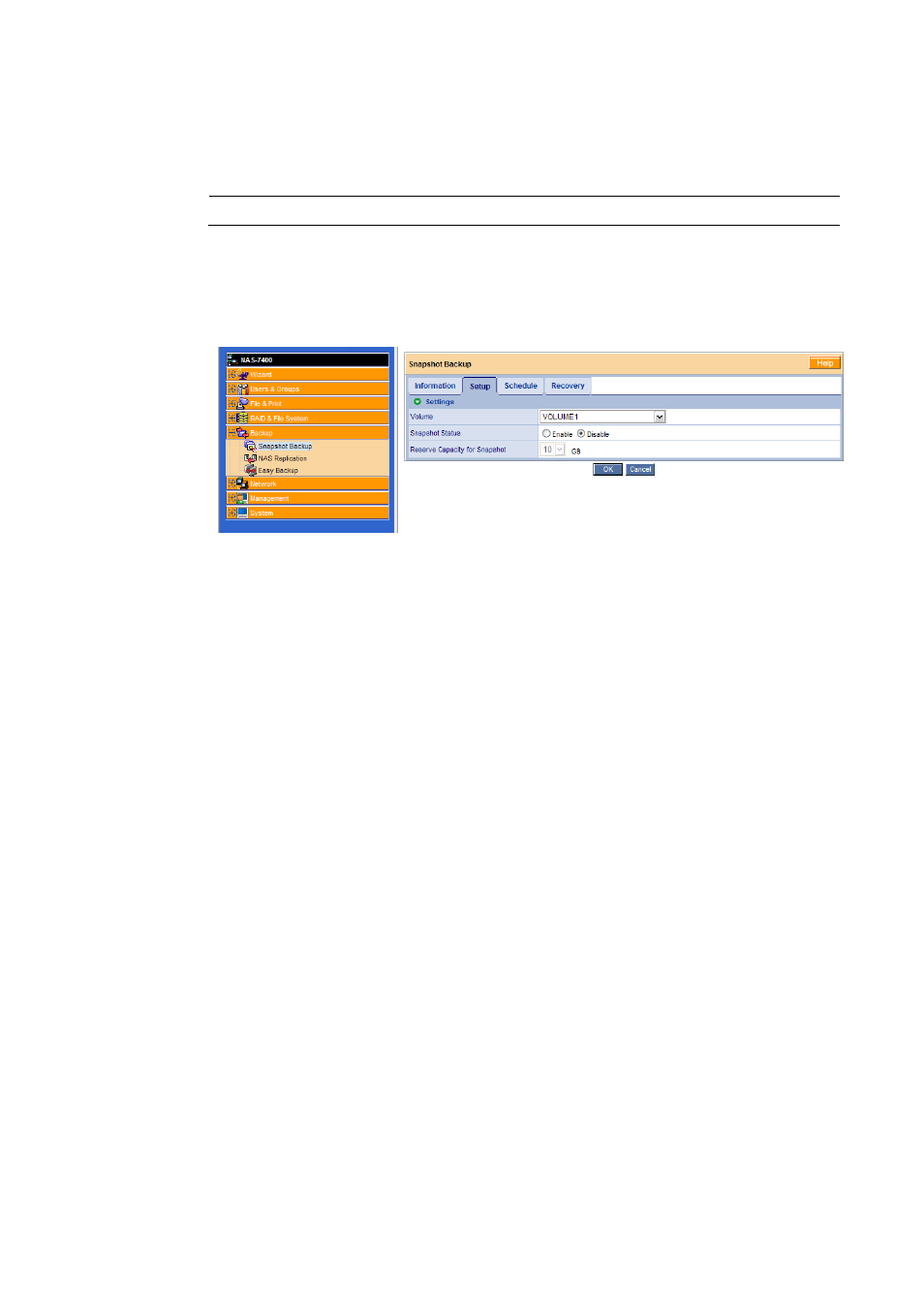

6.5.2 Setting up a Snapshot Backup
Note Setting up a Snapshot will delete all existing snapshots.
To setup a Snapshot Backup:
i. In the Tree, click on the + beside the Backup icon.
ii. Click on the Snapshot Backup icon.
iii. Click on the Setup tab.
iv. From the Volume dropdown menu, select the RAID Volume you
want to backup.
v. Next to Snapshot Status, click the Enable option.
vi. In the Reserve Capacity dropdown menu, select a portion in GB of
the RAID Volume you want to reserve for snapshots.
vii. Click the OK button.
viii. In the confirmation box, type yes into the filed provided than click
the OK button.
6.5.3 Viewing the NAS Replication Schedule
NAS Replication is a feature that uses one NAS-7400 to backup the data on
another NAS-7400. The two NAS-7400 systems must be on the same
network.
